HA4118 H38A (MZCH) - Honda Lawn Tractor, Made in USA (SN: MZCH-6000001 - MZCH-9999999) CARBURETOR Parts Diagram

Lawn Tractor, Made in USA

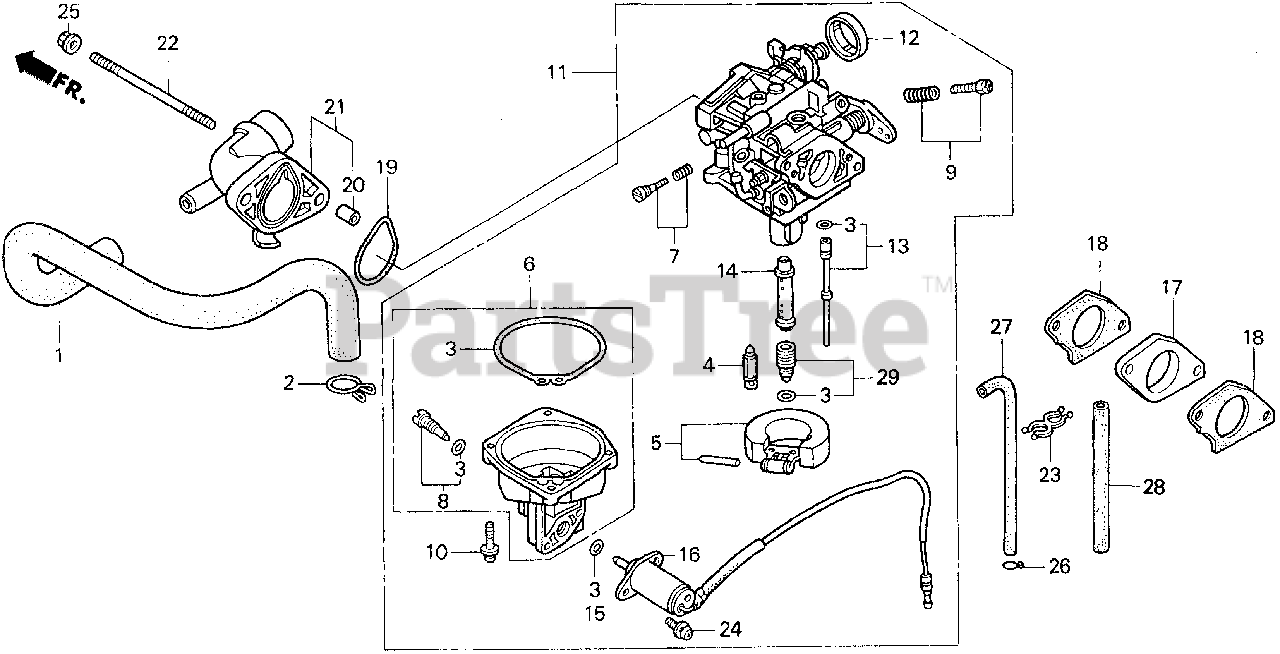

CARBURETOR Parts Diagram

  • Title

1

Honda 12357-ZJ4-000

TUBE, BREATHER

$

$

Not available

2

Honda 15772-551-000

CLIP, BREATHER TUBE

$2.99

$

In Stock, Qty 5

0

3

Honda 16010-ZG8-000

GASKET SET

$22.99

$

In Stock, only 1 left!

0

4

Honda 16011-382-004

SEE PART DETAILS - SUP; VALVE SET, FLOAT
(Superseded to 16011-KCK-910)

$43.99

$

In Stock, only 2 left!

0

5

Honda 16013-ZV4-005

FLOAT SET

$40.99

$

In Stock, only 2 left!

0

6

Honda 16015-ZJ1-000

CHAMBER SET, FLOAT

$

$

Not available

7

Honda 16016-ZJ1-010

SCREW SET

$13.99

$

Usually ships in 3-6 days

0

8

Honda 16024-124-760

SEE PART DETAILS - PRI; SCREW SET, DRAIN

$14.99

$

Usually ships in 3-6 days

0

9

Honda 16028-ZG8-000

SCREW SET

$13.99

$

In Stock, only 1 left!

0

10

Honda 16081-ZV4-650

SCREW-WASHER

$4.49

$

Usually ships in 3-6 days

0

11

Honda 16100-ZJ4-010

CARBURETOR ASSY. (BG23A B)

$

$

Not available

12

Honda 16148-141-881

CAP, CHOKE LEVER DUST

$6.49

$

In Stock, only 1 left!

0

13

Honda 16150-ZJ4-000

SEE PART DETAILS - SUP; JET SET (#48)
(Superseded to 16151-ZG8-L10)

$45.99

$

Usually ships in 3-6 days

0

13

Honda 16151-ZG8-L10

SEE PART DETAILS - PRI; JET SET (#48)

$45.99

$

Usually ships in 3-6 days

0

14

Honda 16166-ZJ4-000

NOZZLE, MAIN

$

$

Not available

15

Honda 16178-548-004

O-RING (5.8X1.9)

$6.99

$

Usually ships in 3-6 days

0

16

Honda 16200-ZJ1-003

VALVE ASSY., SOLENOID

$77.99

$

Usually ships in 3-6 days

0

17

Honda 16211-ZJ1-000

INSULATOR, CARBURETOR

$20.99

$

Usually ships in 3-6 days

0

18

Honda 16221-ZG8-000

GASKET, CARBURETOR

$3.49

$

In Stock, Qty 5

0

19

Honda 17228-ZG8-003

GASKET, AIR CLEANER

$4.49

$

In Stock, only 3 left!

0

20

Honda 17237-ZE3-791

COLLAR A, AIR CLEANER

$

$

Not available

21

Honda 17410-ZJ4-000

ELBOW, AIR CLEANER

$

$

Not available

22

Honda 90041-147-000

BOLT, STUD (6X108)

$8.99

$

Usually ships in 3-6 days

0

23

Honda 90658-SA0-003

CLIP, WIRE HARNESS

$12.99

$

Usually ships in 3-6 days

0

24

Honda 93892-05012-08

SCREW-WASHER (5X12)

$1.49

$

In Stock, Qty 5

0

25

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

26

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 10

0

27

Honda 95005-35001-20M

BULK HOSE, VACUUM (3.5X1000) (3.5X600)

$14.99

$

Usually ships in 3-6 days

0

28

Honda 95005-45001-20M

BULK HOSE, VACUUM (4.5X1000) (4.5X450)

$51.99

$

Usually ships in 3-6 days

0

29

Honda 99201-ZG8-0900

JET SET, MAIN (#90)

$19.99

$

Usually ships in 3-6 days

0

29

Honda 99201-ZG8-0920

JET SET, MAIN (#92)

$19.99

$

Usually ships in 3-6 days

0

29

Honda 99201-ZG8-0950

SEE PART DETAILS - PRI; JET SET, MAIN (#95)

$19.99

$

Usually ships in 3-6 days

0
