HA4118 H38A (MZCH) - Honda Lawn Tractor, Made in USA (SN: MZCH-6000001 - MZCH-9999999) BRAKE PEDAL Parts Diagram

Lawn Tractor, Made in USA

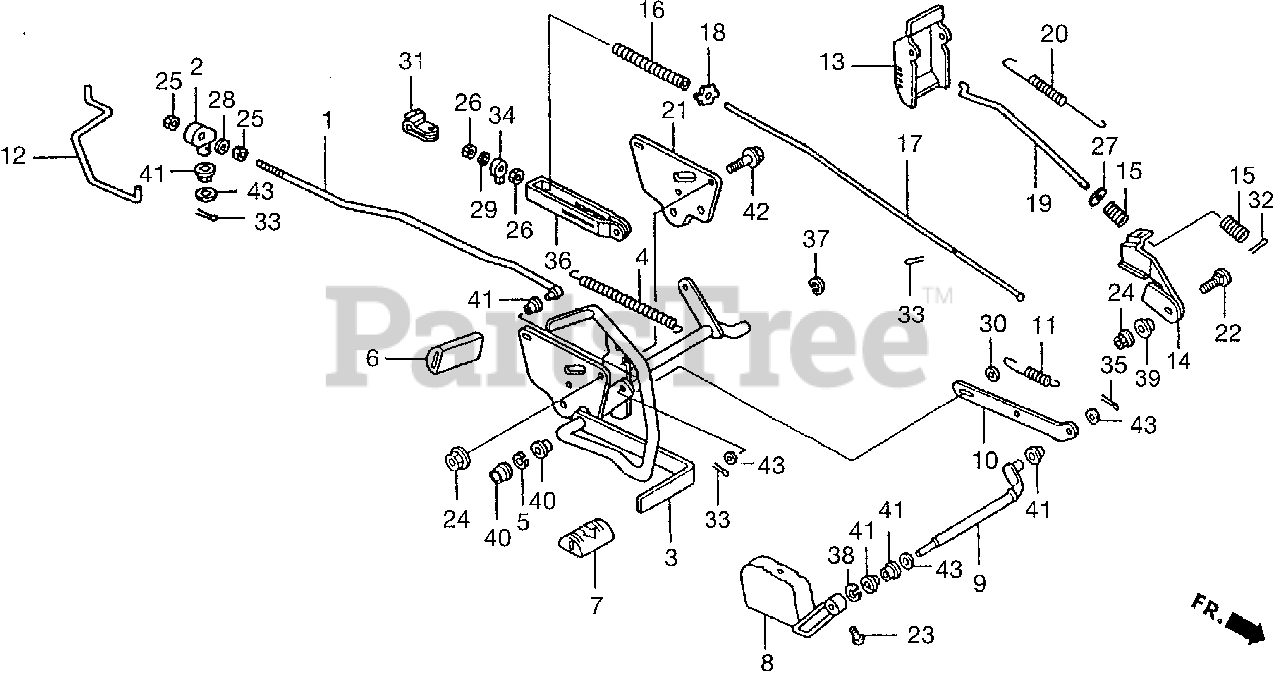

BRAKE PEDAL Parts Diagram

  • Title
1

Honda 24363-V09-A01

ROD, GEARSHIFT

$33.99

$

Usually ships in 3-6 days

0

2

$13.99

$

Usually ships in 3-6 days

0

3

Honda 46510-V09-A01

PEDAL, COMBO BRAKE/FORWARD

$162.99

$

Usually ships in 3-6 days

0

4

Honda 46514-V09-A01

SPRING, BRAKE PEDAL

$11.99

$

Usually ships in 3-6 days

0

5

Honda 46535-V09-A01

COLLAR, PEDAL

$4.99

$

Usually ships in 3-6 days

0

6

Honda 46545-V09-A01

RUBBER, BRAKE PEDAL

$9.99

$

Usually ships in 3-6 days

0

7

Honda 46546-V09-A01

RUBBER, FORWARD PEDAL

$11.99

$

Usually ships in 3-6 days

0

8

Honda 46710-V09-A01

PEDAL, REVERSE

$33.99

$

Usually ships in 3-6 days

0

9

Honda 46720-V09-A01

SHAFT, REVERSE

$30.99

$

Usually ships in 3-6 days

0

10

Honda 46731-V09-A01

LINK, REVERSE

$15.99

$

Usually ships in 3-6 days

0

11

Honda 46732-V09-A01

SPRING, REVERSE

$10.99

$

Usually ships in 3-6 days

0

12

Honda 46920-V09-A01

LEVER, NEUTRAL VALVE

$7.49

$

Usually ships in 3-6 days

0

13

Honda 47111-V09-A01

LEVER, PARKING BRAKE

$

$

Currently unavailable

14

Honda 47112-V09-A01

ARM, PARKING BRAKE

$11.99

$

Usually ships in 3-6 days

0

15

Honda 47143-V09-A01

SPRING, PUSH ROD

$

$

Currently unavailable

16

Honda 47251-V09-A01

SPRING, BRAKE LOAD SETTING

$5.49

$

Usually ships in 3-6 days

0

17

Honda 47261-V09-A01

ROD, FOOT BRAKE

$20.99

$

Usually ships in 3-6 days

0

18

Honda 47267-V09-A01

GUIDE, BRAKE ROD

$1.99

$

Usually ships in 3-6 days

0

19

Honda 47291-V09-A01

ROD, PARKING BRAKE

$11.99

$

Usually ships in 3-6 days

0

20

Honda 47294-V09-A01

SPRING, PARKING BRAKE RETURN

$

$

Not available

21

Honda 75131-V09-A01

PLATE, BRAKE

$17.99

$

Usually ships in 3-6 days

0

22

Honda 90108-V09-A01

BOLT, CARRIAGE (8X20)

$

$

Not available

23

Honda 90120-V09-A01

SCREW, REVERSE PEDAL SETTING

$1.99

$

Usually ships in 3-6 days

0

24

Honda 90301-V09-A01

NUT, FLANGE (8MM)

$1.99

$

In Stock, only 1 left!

0

25

Honda 90318-V09-A01

NUT, HEX. (12MM)

$

$

Not available

26

Honda 90319-V09-A01

NUT, HEX. (10MM)

$0.99

$

Usually ships in 3-6 days

0

27

Honda 90502-V09-A01

WASHER (6.4X18X1.6)

$0.99

$

Usually ships in 3-6 days

0

28

Honda 90507-V09-A01

WASHER, LOCK (INNER) (1/2")

$0.99

$

Usually ships in 3-6 days

0

29

Honda 90508-V09-A01

WASHER, LOCK (INNER) (3/8")

$0.99

$

Usually ships in 3-6 days

0

30

Honda 90509-V09-A01

WASHER, REVERSE LINK

$0.99

$

Usually ships in 3-6 days

0

31

Honda 90652-V09-A01

CLIP, R. ROD MOUNTING

$7.49

$

Usually ships in 3-6 days

0

32

Honda 90751-V09-A01

PIN, COTTER (2X16)

$0.99

$

Usually ships in 3-6 days

0

33

Honda 90755-V09-A01

PIN, COTTER (2.5X20)

$0.99

$

Usually ships in 3-6 days

0

34

Honda 90756-V09-A01

PIN, CONTROL LINK

$2.99

$

Usually ships in 3-6 days

0

35

Honda 90757-V09-A01

PIN, COTTER (3.2X20)

$0.99

$

Usually ships in 3-6 days

0

36

Honda 91154-V09-A01

RETAINER, BRAKE SPRING

$15.99

$

Usually ships in 3-6 days

0

37

Honda 91452-V09-A01

RING, CONTROL SNAP

$7.99

$

Usually ships in 3-6 days

0

38

Honda 91453-V09-A01

RING, HEIGHT ADJUST PIN

$

$

Not available

39

Honda 91551-V09-A01

BUSHING, PARKING BRAKE

$0.99

$

Usually ships in 3-6 days

0

40

Honda 91552-V09-A01

BUSHING, FLANGED

$

$

Not available

41

Honda 91553-V09-A01

BUSHING, CONTROL

$2.49

$

Usually ships in 3-6 days

0

42

Honda 90102-V09-A01

BOLT, FLANGE (8X16) (19M7867)

$

$

Currently unavailable

43

Honda 90506-V09-A01

WASHER, PEDAL ARM

$0.99

$

Usually ships in 3-6 days

0
