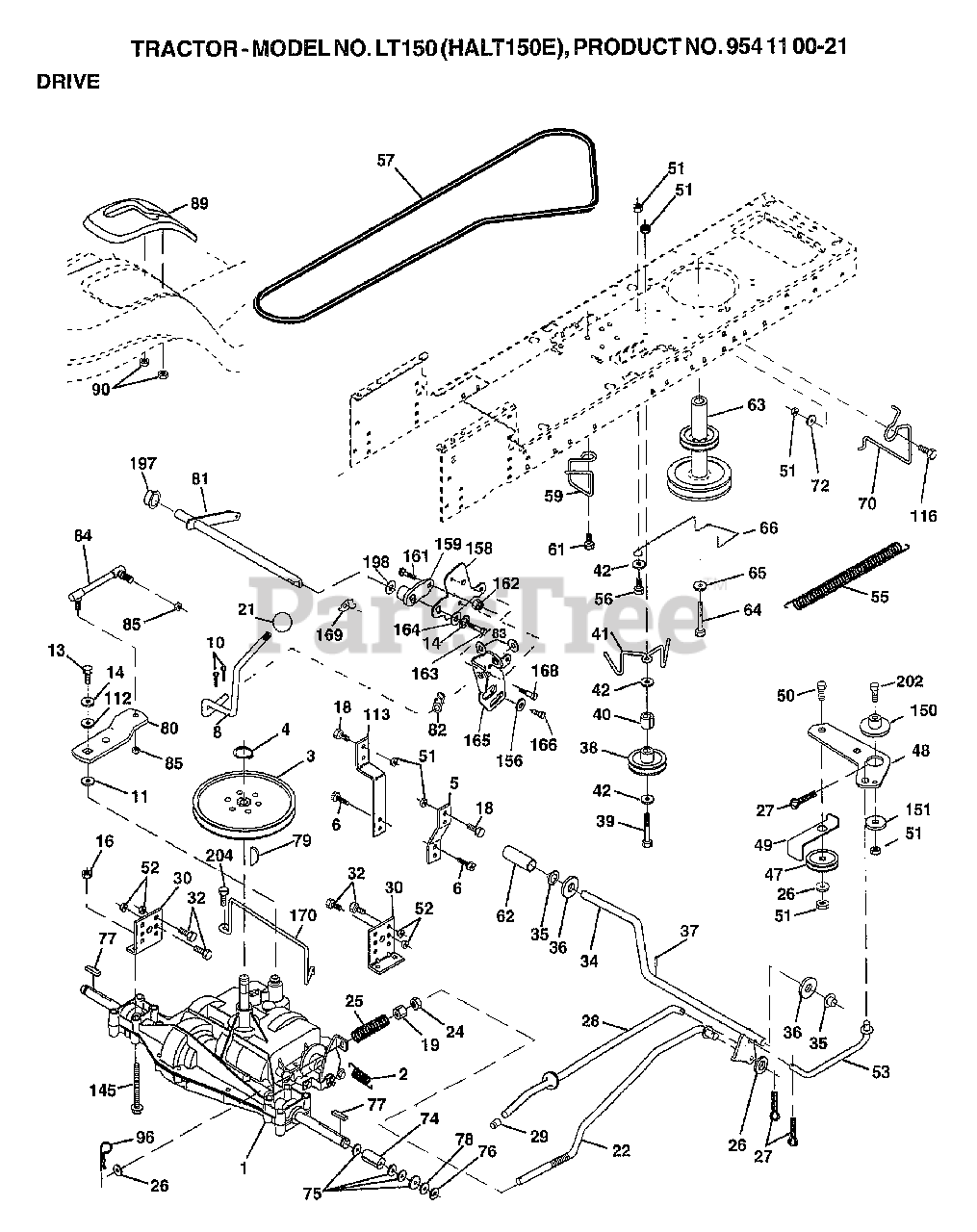

HA LT 150 E - Electrolux/AYP Lawn Tractor DRIVE Parts Diagram

Lawn Tractor

DRIVE Parts Diagram

  • Title

1

Electrolux/AYP SUPPLIER

CHECK WITH SUPPLIER

$

$

Not available

2

Electrolux/AYP 532146682

SUB= 146682

$8.99

$

In Stock, only 2 left!

0

3

Electrolux/AYP 532123666

SUB= 123666X

$45.99

$

In Stock, only 1 left!

0

4

Electrolux/AYP 812000028

RING, RETAINER
(Superseded to 532002267)

$7.49

$

In Stock, Qty 7

0

5

Electrolux/AYP 532121520

SUB= 121520X

$7.99

$

In Stock, only 3 left!

0

6

Electrolux/AYP 817060512

SCREW
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 532165866

ROD.SHIFT.FENDER.ADJ

$

$

Not available

10

Electrolux/AYP 876020416

PIN COTTER 1/8 X 1 CAD

$3.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 5321025701

WASHER

$

$

Not available

13

Electrolux/AYP 874550412

BOLT 1/4-28 GR 8 W/PATCH
(Superseded to 871040412)

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 810040400

WASHER, LOCK 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

16

Electrolux/AYP 873800500

LOCKNUT
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

18

Electrolux/AYP 874780616

BOLT FIN HEX 3/8-16 X 1

$6.49

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 873800600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 532140845

SUB= 140845

$13.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 532130804

SUB= 130804

$31.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 873350600

NUT HEX JAM 3/8-16 UNC
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

25

Electrolux/AYP 532106888

SUB= 106888X
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

26

Electrolux/AYP 819131316

WASHER 13/32 X 13/16 X 16 GA

$4.99

$

In Stock, Qty 5

0

27

Electrolux/AYP 876020412

PIN COTTER 1/8 X 3/4 CAD
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

28

Electrolux/AYP 532145204

SUB= 145204

$

$

Not available

29

Electrolux/AYP 532071673

SUB= 71673

$5.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 532169592

BRK MTG TRANSAXLE

$6.49

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 874760512

BOLT, HEX 5/16-18 X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

34

Electrolux/AYP 532155071

SUB= 155071

$

$

Not available

35

Electrolux/AYP 532120183

SUB= 120183X

$6.99

$

In Stock, only 3 left!

0

36

Electrolux/AYP 819211616

WASHER 21/32 X 1 X 16 GA

$6.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 532124963

SUB= 2882J
(Superseded to 532002882)

$

$

Not available

38

Electrolux/AYP 532131494

SUB= 131494
(Superseded to 597025001)

$26.99

$

In Stock, Qty 5

0

39

Electrolux/AYP 872110622

BOLT RDHD 3/8-16 X 2-3/4 GR 5

$4.99

$

In Stock, Qty 9

0

40

Electrolux/AYP 532124965

SUB= 4470J

$6.49

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 532165838

SUB= 165838

$

$

Not available

42

Electrolux/AYP 819131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

47

Electrolux/AYP 532127783

SUB= 139245
(Superseded to 532139245)

$37.99

$

Usually ships in 3-10 days

0

48

Electrolux/AYP 532154407

SUB= 154407

$8.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 532123205

SUB= 123205X

$6.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 874760624

BOLT HEX HD 3/8-16 X 1-1/2
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 873680600

NUT, CROWNLOCK 3/8-16
(Superseded to 596322601)

$3.99

$

In Stock, Qty 7

0

52

Electrolux/AYP 873680500

LOCKNUT, CROWN 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

53

Electrolux/AYP 532105710

SUB= 105710X
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 532105709

SUB= 105709X

$11.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 874760620

BOLT, HEX 3/8-16 X 1-1/4

$7.49

$

Usually ships in 3-10 days

0

57

Electrolux/AYP 532130801

SUB= 138255
(Superseded to 532138255)

$39.99

$

In Stock, Qty 5

0

59

Electrolux/AYP 532169691

KEEPER BELT

$26.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 817060612

SUB=17060612
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

62

Electrolux/AYP 532123533

SUB= 123533X

$6.99

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 532140186

SUB= 140186

$113.99

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 871170764

BOLT HEX
(Superseded to 501606501)

$4.99

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 810040700

WASHER LOCK HVY HLCL SPR 7/16
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

66

Electrolux/AYP 532154778

SUB= 154778

$12.99

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 532134683

SUB= 134683

$

$

Not available

72

Electrolux/AYP 819132012

WASHER 13/32 X 1-1/4 X 12 GA

$1.99

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 532137057

SUB= 137057

$7.49

$

In Stock, only 3 left!

0

75

Electrolux/AYP 532121749

SUB= 121749X

$3.49

$

Usually ships in 3-10 days

0

76

Electrolux/AYP 812000001

E-RING #5133-75

$4.99

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 532123583

SUB= 123583X

$4.99

$

In Stock, only 4 left!

0

78

Electrolux/AYP 532121748

SUB= 121748X

$4.99

$

In Stock, Qty 20+

0

79

Electrolux/AYP 532125096

SUB= 2228M1

$9.49

$

In Stock, only 1 left!

0

80

Electrolux/AYP 532145090

SUB= 145090

$7.99

$

Usually ships in 3-10 days

0

81

Electrolux/AYP 532165592

SHAFT ASM CROSS TAPERED

$40.99

$

Usually ships in 3-10 days

0

82

Electrolux/AYP 532165711

SPRING

$7.49

$

In Stock, only 1 left!

0

83

Electrolux/AYP 819171216

WASHER 17/32 X 3/4 X 16 GA
(Superseded to 19171216)

$

$

Not available

84

Electrolux/AYP 532166231

TRANSAXLE LINK
(Superseded to 597068804)

$

$

Not available

85

Electrolux/AYP 532150360

SUB= 150360
(Superseded to 873610400)

$

$

Not available

89

Electrolux/AYP 532166561

SUB= 158391X428

$42.99

$

Usually ships in 3-10 days

0

90

Electrolux/AYP 532124346

SUB= 124346X

$7.99

$

In Stock, only 1 left!

0

96

Electrolux/AYP 532124788

SUB= 4497H
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

112

Electrolux/AYP 819091210

WASHER 9/32 X 3/4 X 10 GA
(Superseded to 734115441)

$4.99

$

In Stock, only 1 left!

0

113

Electrolux/AYP 532127285

SUB= 127285X

$

$

Not available

116

Electrolux/AYP 872110610

BOLT RDHD SQ NECK 3/8-16 X 1.25
(Superseded to 872140614)

$4.99

$

Usually ships in 3-10 days

0

145

Electrolux/AYP 874490540

BOLT

$4.99

$

Usually ships in 3-10 days

0

150

Electrolux/AYP 532165850

BUSHING BELLCRANK

$

$

Not available

151

Electrolux/AYP 819133210

WASHER
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

156

Electrolux/AYP 532166002

WASHER.SORTED

$6.49

$

Usually ships in 3-10 days

0

158

Electrolux/AYP 532165589

BRKT.SHIFT.MOUNT
(Superseded to 532437458)

$7.49

$

Usually ships in 3-10 days

0

159

Electrolux/AYP 532165494

HUB.TAPERRED FLANGE SHIFT
(Superseded to 532444304)

$8.99

$

Usually ships in 3-10 days

0

161

Electrolux/AYP 872140406

BOLT, CARRIAGE 1/4-20 X 3/4
(Superseded to 872110407)

$4.99

$

Usually ships in 3-10 days

0

162

Electrolux/AYP 873680400

NUT CROWNLOCK 1/4-20
(Superseded to 586668901)

$4.99

$

In Stock, Qty 15

0

163

Electrolux/AYP 874780416

BOLT

$6.49

$

Usually ships in 3-10 days

0

164

Electrolux/AYP 819091010

WASHER

$

$

Not available

165

Electrolux/AYP 532165623

BRKT.PIVOT.LEVER
(Superseded to 532438250)

$7.49

$

Usually ships in 3-10 days

0

166

Electrolux/AYP 532166880

SCREW 5/16-18X5/8

$6.49

$

Usually ships in 3-10 days

0

168

Electrolux/AYP 532165492

BOLT SHOULDER 5/16-18X.561

$10.99

$

In Stock, only 3 left!

0

169

Electrolux/AYP 532165580

PLATE.FASTENING.CROSS.SHAFT

$6.99

$

Usually ships in 3-10 days

0

170

Electrolux/AYP 532165849

KEEPER BELT
(Superseded to 532178394)

$9.99

$

Usually ships in 3-10 days

0

197

Electrolux/AYP 532169613

NYLINER SNAP-IN

$7.49

$

In Stock, Qty 6

0

198

Electrolux/AYP 532169593

WASHER

$11.99

$

Usually ships in 3-10 days

0

202

Electrolux/AYP 872110612

BOLT, CARRIAGE 3/8-16 X 1-1/2 GR.5

$6.49

$

Usually ships in 3-10 days

0

204

Electrolux/AYP 817060516

SCREW

$6.49

$

Usually ships in 3-10 days

0
