HA GTH 220 B - Electrolux/AYP Lawn Tractor ENGINE Parts Diagram

Lawn Tractor

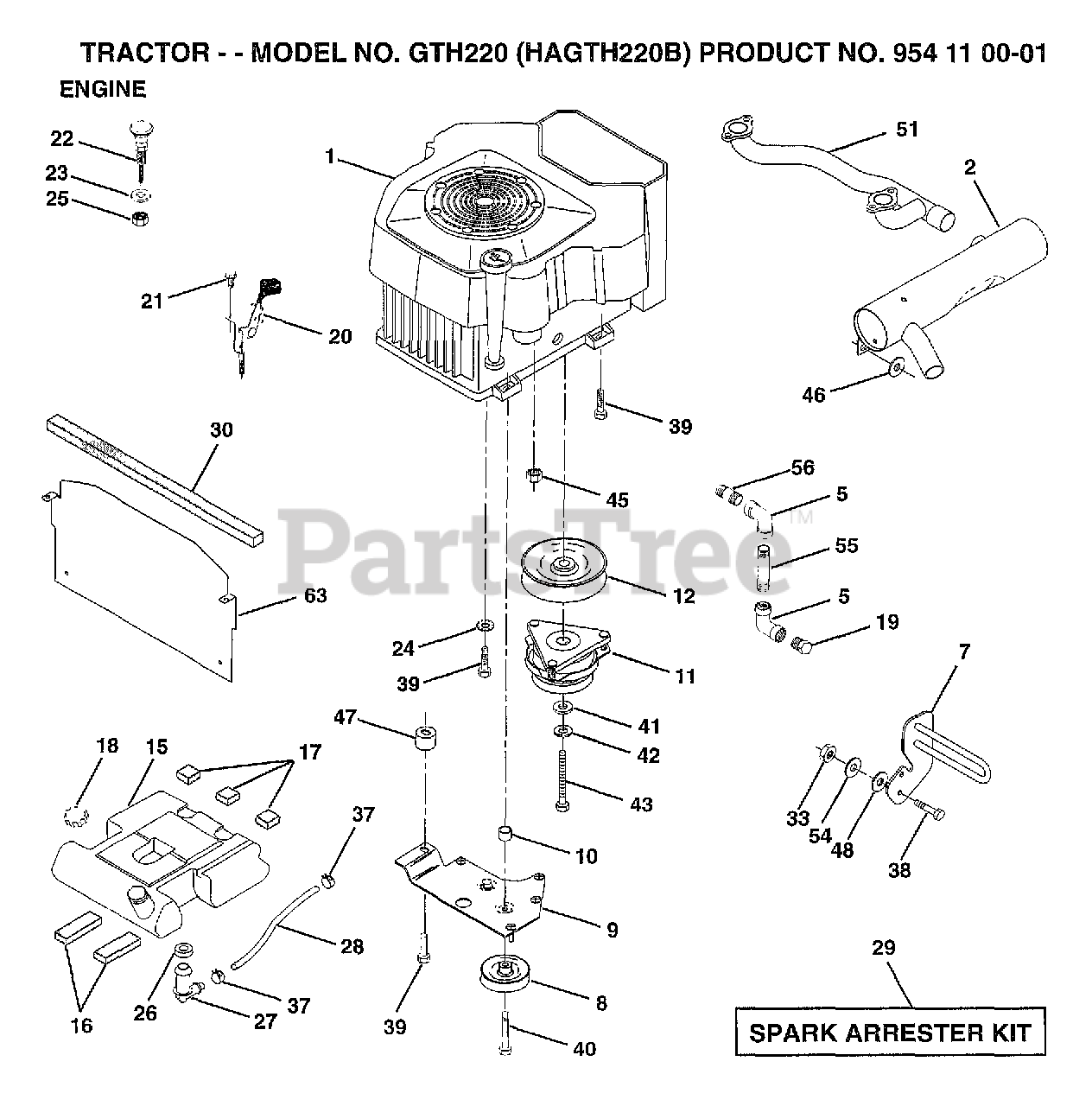

ENGINE Parts Diagram

  • Title

1

Electrolux/AYP CV22S

ENGINE, KOHLER

$

$

Not available

2

Electrolux/AYP 532152947

MUFFLER VGT CYLINDER

$

$

Not available

5

Electrolux/AYP 813200300

ELBOW STD 90 DEGREE 3/8-18 NPT
(Superseded to 532428287)

$18.99

$

In Stock, only 2 left!

0

7

Electrolux/AYP 532151396

SUB= 151396

$

$

Not available

8

Electrolux/AYP 532121361

SUB= 139123
(Superseded to 532139123)

$37.99

$

In Stock, only 1 left!

0

9

Electrolux/AYP 532150828

SUB= 150828
(Superseded to 532177748)

$

$

Not available

10

Electrolux/AYP 532105432

SUB= 105432X
(Superseded to 105432X)

$

$

Not available

11

Electrolux/AYP 532140923

SUB= 150283
(Superseded to 532150283)

$546.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 532143996

SUB= 143996

$53.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 532151346

SUB= 151346

$96.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 532109227

SUB= 109227X

$4.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 532106082

SUB= 106082X

$

$

Not available

18

Electrolux/AYP 532140527

SUB= 140527
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 813290300

PLUG OIL DRAIN

$

$

Not available

20

Electrolux/AYP 532132747

SUB= 532132748
(Superseded to 532132748)

$

$

Not available

21

Electrolux/AYP 817720410

SCREW HEX THD CUT 1/4-20X5/8 T
(Superseded to 874780410)

$3.99

$

In Stock, only 3 left!

0

22

Electrolux/AYP 532132781

SUB= 132781

$

$

Not available

23

Electrolux/AYP 819131316

WASHER 13/32 X 13/16 X 16 GA

$4.99

$

In Stock, Qty 5

0

24

Electrolux/AYP 811050600

WASHER LOCK
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 873920600

NUT, KEPS 3/8-24 UNF

$3.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 532124952

SUB= 3645J
(Superseded to 532003645)

$4.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 532139277

SUB= 139277

$8.99

$

In Stock, Qty 5

0

28

Electrolux/AYP 532124703

SUB= 8542R
(Superseded to 532008542)

$

$

Not available

29

Electrolux/AYP 532132920

SUB= 132920

$

$

Not available

30

Electrolux/AYP 532105037

SUB= 105037X

$

$

Not available

33

Electrolux/AYP 873800600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 532123487

SUB= 123487X

$7.49

$

In Stock, only 4 left!

0

38

Electrolux/AYP 874780624

BOLT, FIN HEX 3/8-16 UNC X 1-1/2
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 817490636

SCREW, TT 3/8-16 X 2-1/4 UNC

$2.49

$

In Stock, Qty 6

0

40

Electrolux/AYP 817490664

SCREW, TT 3/8-16 X 4 UNC

$

$

Not available

41

Electrolux/AYP 532126197

SUB= 126197X

$8.99

$

In Stock, only 3 left!

0

42

Electrolux/AYP 810040700

WASHER LOCK HVY HLCL SPR 7/16
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

43

Electrolux/AYP 532150280

SUB= 150280
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

45

Electrolux/AYP 532128861

SUB= 128861
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

46

Electrolux/AYP 819131616

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 532142040

SUB= 142040
(Superseded to 142040)

$

$

Not available

48

Electrolux/AYP 819132007

WASHER, 13/32 X 1-1/4 X 7 GA.

$3.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 532152946

PIPE CROSSOVER

$

$

Not available

54

Electrolux/AYP 819131414

WASHER, FLAT 13/32 X 7/8 X 14 GA.

$6.49

$

In Stock, only 2 left!

0

55

Electrolux/AYP 813280336

NIPPLE, PIPE 4-1/2

$

$

Not available

56

Electrolux/AYP 813090308

NIPPLE, PIPE 3/8 NPT X 1.00

$4.99

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 532145549

SUB= 145549
(Superseded to 145549)

$

$

Not available
