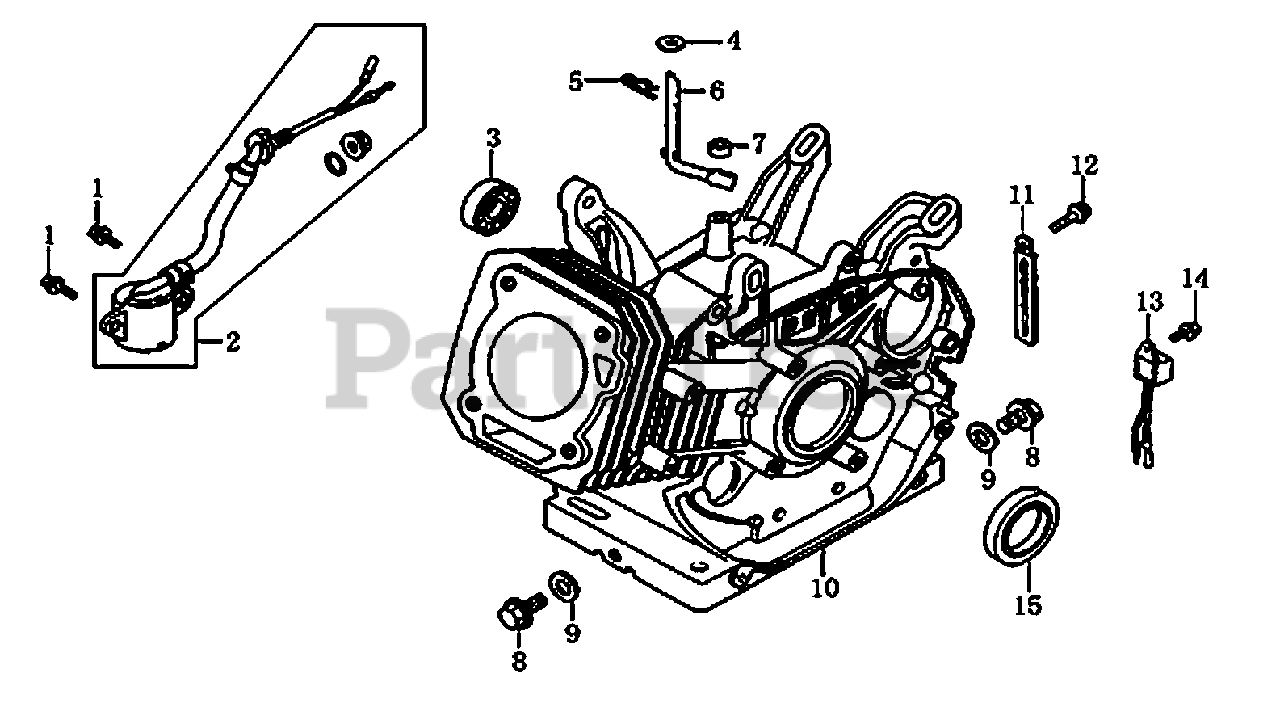

H7500 (0060391) - Honeywell Portable Generator (SN: 7515123A - 7516022A) (2012) Crankcase Parts Diagram

Portable Generator

Crankcase Parts Diagram

  • Title

1

Generac 0G84420217

BOLT' FLANGE' 6×14

$1.99

$

In Stock, Qty 7

0

2

Generac 0G84420105

SWITCH ASSY.' OIL LEVEL

$29.99

$

In Stock, only 1 left!

0

3

Generac 0G84420118

BEARING' RADIAL BALL' 6202

$14.99

$

Usually ships in 2-12 days

0

4

Generac 0G84420218

WASHER'8*16*1.2

$0.99

$

Usually ships in 2-12 days

0

5

Generac 0G84420219

PIN' LOCK' 10MM

$0.99

$

Usually ships in 2-12 days

0

6

Generac 0G84420220

SHAFT' GOVERNOR ARM

$7.99

$

Usually ships in 2-12 days

0

7

Generac 0G84420108

OIL SEAL' 8×14×4

$4.99

$

In Stock, only 2 left!

0

8

Generac 0G84420110

BOLT' DRAIN PLUG

$4.49

$

In Stock, only 2 left!

0

9

Generac 0G84420109

WASHER' DRAIN PLUG

$1.99

$

In Stock, only 3 left!

0

10

Generac 0J28790110

CRANKCASE

$

$

Currently unavailable

11

Generac 0G84420267

CLIP

$1.49

$

Usually ships in 2-12 days

0

12

Generac 0G84420194

BOLT' FLANGE' M6×12

$1.49

$

In Stock, only 4 left!

0

13

Generac 0G84420112

ALERT UNIT'OIL

$15.99

$

In Stock, only 1 left!

0

14

Generac 0G84420194

BOLT' FLANGE' M6×12

$1.49

$

In Stock, only 4 left!

0
