H6522 A4H (TZAD) - Honda Compact Tractor, Made in Japan (SN: TZAD-1000001 - TZAD-1001869) OIL PUMP Parts Diagram

Compact Tractor, Made in Japan

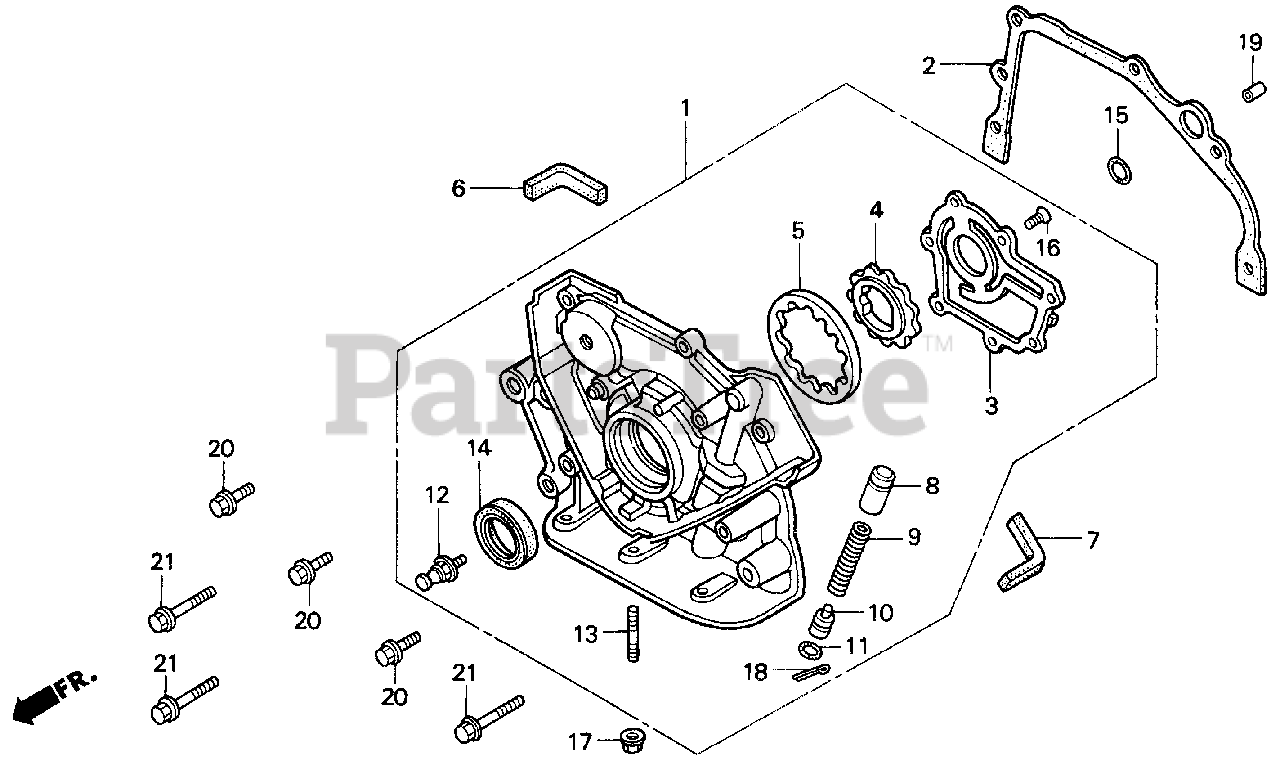

OIL PUMP Parts Diagram

  • Title

1

Honda 15100-ZG5-013

PUMP ASSY., OIL

$560.99

$

Usually ships in 3-6 days

0

2

Honda 15112-ZG5-800

GASKET, OIL PUMP BODY (NON-ASBESTOS)

$13.99

$

Usually ships in 3-6 days

0

3

Honda 15121-ZG5-003

COVER, OIL PUMP

$42.99

$

Usually ships in 3-6 days

0

4

Honda 15131-PM3-010

ROTOR, PUMP (INNER) (SUMITOMO)

$

$

Not available

5

Honda 15132-PE0-003

ROTOR, PUMP (OUTER) (SUMITOMO)

$

$

Not available

6

Honda 15146-ZG5-000

SEAL, CORNER (A)

$7.99

$

Usually ships in 3-6 days

0

7

Honda 15147-ZG5-000

SEAL, CORNER (B)

$7.99

$

Usually ships in 3-6 days

0

8

Honda 15231-PE0-000

VALVE, RELIEF

$19.99

$

Usually ships in 3-6 days

0

9

Honda 15232-679-023

SPRING, RELIEF VALVE

$7.49

$

Usually ships in 3-6 days

0

10

Honda 15233-PH7-013

SEAT, RELIEF VALVE SPRING

$12.99

$

Usually ships in 3-6 days

0

11

Honda 15234-PH7-003

O-RING, SPRING SEAT

$

$

Not available

12

Honda 90012-ZG5-003

SCREW, FLANGE (5X8.5)

$6.99

$

Usually ships in 3-6 days

0

13

Honda 90041-PA5-000

BOLT, STUD (6X28)

$6.49

$

Usually ships in 3-6 days

0

14

Honda 91213-ZG5-003

OIL SEAL (30X45X7)

$11.99

$

Usually ships in 3-6 days

0

15

Honda 91333-KE5-003

O-RING (17.0X2.5) (ARAI)

$2.99

$

Usually ships in 3-6 days

0

16

Honda 93600-06016-0A

SCREW, FLAT (6X16)

$1.49

$

Usually ships in 3-6 days

0

17

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0

18

Honda 94201-30450

PIN, COTTER (3.0X45)

$1.49

$

In Stock, Qty 20+

0

19

Honda 94301-10120

SEE PART DETAILS - PRI; PIN, DOWEL (10X12)

$3.49

$

Usually ships in 3-6 days

0

20

Honda 95701-08025-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X25)

$0.99

$

In Stock, Qty 12

0

21

Honda 95701-08035-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X35)

$1.99

$

Usually ships in 3-6 days

0
