H6522 A4H (TZAD) - Honda Compact Tractor, Made in Japan (SN: TZAD-1000001 - TZAD-1001869) FUEL TANK Parts Diagram

Compact Tractor, Made in Japan

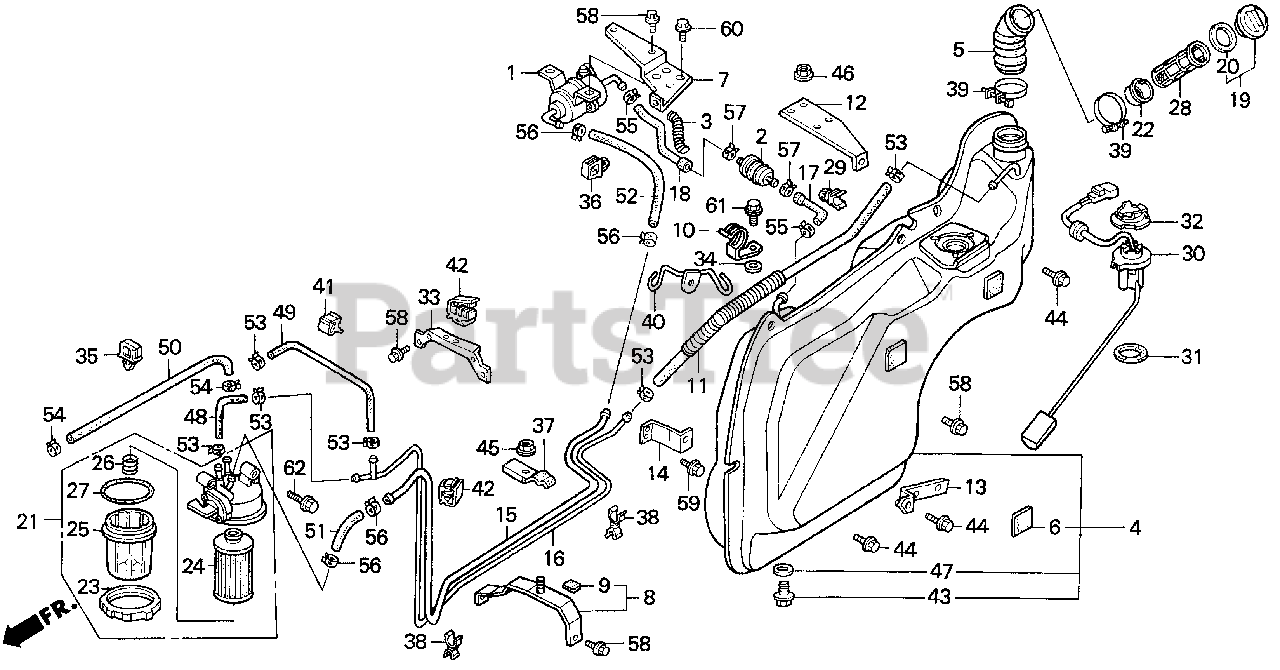

FUEL TANK Parts Diagram

  • Title

1

Honda 16700-759-004

PUMP ASSY., FUEL

$

$

Not available

2

Honda 16911-759-003

FILTER, FUEL PUMP

$42.99

$

Usually ships in 3-6 days

0

3

Honda 17468-MF8-790

SPRING, TUBE COVER (9MM)

$

$

Not available

4

Honda 17500-764-640

TANK ASSY., FUEL

$

$

Not available

5

Honda 17512-759-000

TUBE, FILLER NECK

$64.99

$

Usually ships in 3-6 days

0

6

Honda 17515-759-300

RUBBER, TANK MOUNTING (A)

$

$

Not available

7

Honda 17535-759-000

BRACKET, FEED PUMP

$

$

Not available

8

Honda 17536-759-000

BASE, CLAMP

$

$

Not available

9

Honda 17537-759-300

RUBBER, PIPE CUSHION

$

$

Not available

10

Honda 17538-759-000

CLAMP, FUEL STRAINER

$

$

Not available

11

Honda 17541-759-010

HOSE, FUEL RETURN

$

$

Not available

12

Honda 17543-759-000

BRACKET, TANK & BODY MOUNTING

$

$

Not available

13

Honda 17544-759-000

BRACKET A, FUEL TANK

$

$

Not available

14

Honda 17545-759-000

BRACKET B, FUEL TANK

$

$

Not available

15

Honda 17554-759-000

PIPE, FUEL SUPPLY

$

$

Not available

16

Honda 17556-759-000

PIPE, FUEL RETURN

$

$

Not available

17

Honda 17576-759-000

TUBE A, FUEL

$

$

Not available

18

Honda 17577-759-000

TUBE B, FUEL

$

$

Not available

19

Honda 17620-759-000

CAP, FUEL FILLER

$

$

Not available

20

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP
(Superseded to 17631-329-013)

$

$

Not available

21

Honda 17670-759-005

FILTER ASSY., FUEL

$

$

Not available

22

Honda 17673-893-000

HOLDER, FUEL FILTER

$14.99

$

In Stock, only 1 left!

0

23

Honda 17681-ZG5-003

RING, SET

$37.99

$

Usually ships in 3-6 days

0

24

Honda 17682-ZG5-003

STRAINER

$65.99

$

In Stock, only 1 left!

0

25

Honda 17683-ZG5-003

CHAMBER, STRAINER

$86.99

$

Usually ships in 3-6 days

0

26

Honda 17684-ZG5-003

SPRING, COIL

$4.99

$

Usually ships in 3-6 days

0

27

Honda 17685-ZG5-003

O-RING

$7.49

$

In Stock, only 1 left!

0

28

Honda 17690-759-000

FILTER, FUEL FILLER

$

$

Not available

29

Honda 17938-SE0-941

CLIP, THROTTLE WIRE

$9.49

$

Usually ships in 3-6 days

0

30

Honda 37800-764-641

FUEL UNIT

$

$

Currently unavailable

31

Honda 37801-GA7-700

GASKET, BASE

$7.49

$

Usually ships in 3-6 days

0

32

Honda 37802-GA7-700

RETAINER, FUEL UNIT

$7.49

$

Usually ships in 3-6 days

0

33

Honda 63325-759-000

BRACKET, RR. COVER

$

$

Not available

34

Honda 90401-PH7-J30

WASHER, PLAIN (8MM) (NOT AVAILABLE)

$

$

Currently unavailable

35

Honda 90650-SB6-003

CLIP, HARNESS (15MM) (BLUE)

$5.99

$

Usually ships in 3-6 days

0

36

Honda 90651-SB2-003

CLIP, WIRE HARNESS (13MM) (GRAY)

$8.99

$

Usually ships in 3-6 days

0

37

Honda 90655-759-000

CLAMP, FUEL PIPE

$

$

Not available

38

Honda 90665-759-000

CLAMP B, FUEL PIPE

$

$

Not available

39

Honda 90666-759-000

CLIP, FILLER TUBE

$5.99

$

Usually ships in 3-6 days

0

40

Honda 90668-759-010

CLAMP, FUEL HOSE

$

$

Not available

41

Honda 90690-GHB-641

CLIP, CABLE (10MM)

$2.99

$

Usually ships in 3-6 days

0

42

Honda 91592-SE0-003

CLIP, FUEL PIPE

$

$

Not available

43

Honda 92800-12000

BOLT, DRAIN PLUG (12MM)

$5.49

$

In Stock, only 2 left!

0

44

Honda 93406-08016-08

BOLT-WASHER (8X16)

$2.49

$

Usually ships in 3-6 days

0

45

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0

46

Honda 94050-10080

NUT, FLANGE (10MM)

$3.99

$

In Stock, Qty 20+

0

47

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 20+

0

48

Honda 95001-45003-20M

SEE PART DETAILS - SUP; BULK HOSE, FUEL (4.5X3000) (4.5X120)

$

$

Currently unavailable

49

Honda 95001-45003-20M

SEE PART DETAILS - SUP; BULK HOSE, FUEL (4.5X3000) (4.5X305)

$

$

Currently unavailable

50

Honda 95001-55008-20M

BULK HOSE, FUEL (5.5X8000) (5.5X320)

$

$

Currently unavailable

51

Honda 95001-75003-50M

BULK HOSE, FUEL (7.5X3000) (7.3X110)

$151.99

$

Usually ships in 3-6 days

0

52

Honda 95001-75003-50M

BULK HOSE, FUEL (7.5X3000) (7.5X235)

$151.99

$

Usually ships in 3-6 days

0

53

Honda 95002-40850-08

CLIP, TUBE (D8.5)

$3.49

$

In Stock, Qty 8

0

54

Honda 95002-41050-08

CLIP, TUBE (D10.5)

$3.49

$

In Stock, Qty 7

0

55

Honda 95002-41200-08

CLIP, TUBE (D12)

$3.49

$

Usually ships in 3-6 days

0

56

Honda 95002-41250-08

CLIP, TUBE (D12.5)

$3.49

$

Usually ships in 3-6 days

0

57

Honda 95002-41300-08

CLIP, TUBE (D13)

$4.49

$

Usually ships in 3-6 days

0

58

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0

59

Honda 95701-08016-08

BOLT, FLANGE (8X16)

$2.49

$

In Stock, only 3 left!

0

60

Honda 95701-08020-08

BOLT, FLANGE (8X20)

$2.49

$

Usually ships in 3-6 days

0

61

Honda 95701-08022-08

BOLT, FLANGE (8X22)

$2.99

$

In Stock, only 3 left!

0

62

Honda 95701-08030-08

BOLT, FLANGE (8X30)

$1.99

$

Usually ships in 3-6 days

0
