H6522 A4H (TZAD) - Honda Compact Tractor, Made in Japan (SN: TZAD-1000001 - TZAD-1001869) FRONT DIFFERENTIAL GEAR Parts Diagram

Compact Tractor, Made in Japan

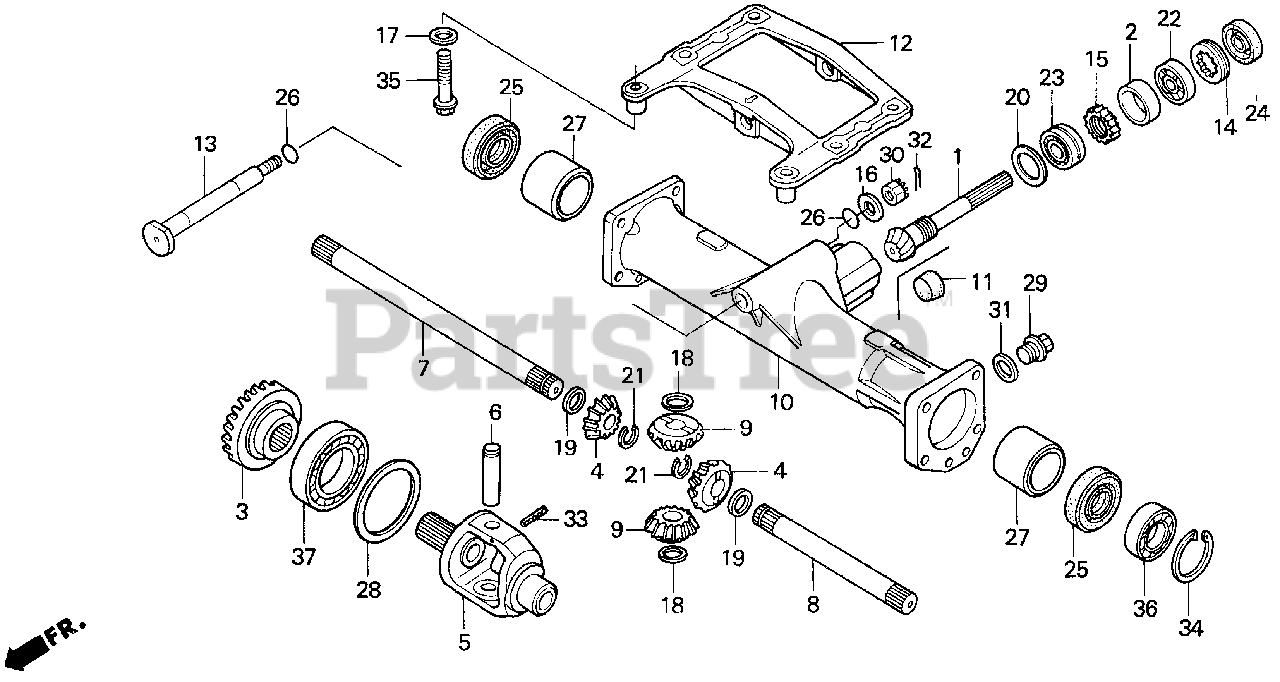

FRONT DIFFERENTIAL GEAR Parts Diagram

  • Title

1

Honda 41211-764-640

SHAFT, FR. DIFFERENTIAL INPUT

$

$

Not available

2

Honda 41213-752-000

COLLAR, FR. DIFFERENTIAL INPUT SHAFT

$14.99

$

Usually ships in 3-6 days

0

3

Honda 41221-759-000

GEAR, FR. DIFFERENTIAL DRIVEN

$

$

Not available

4

Honda 41241-759-000

GEAR, FR. DIFFERENTIAL SIDE

$

$

Not available

5

Honda 41311-759-010

CASE, FR. DIFFERENTIAL GEAR

$218.99

$

Usually ships in 3-6 days

0

6

Honda 41321-759-000

SHAFT, DIFFERENTIAL PINION

$21.99

$

Usually ships in 3-6 days

0

7

Honda 41331-759-010

SHAFT, R. FR. DRIVE

$

$

Not available

8

Honda 41332-759-010

SHAFT, L. FR. DRIVE

$

$

Not available

9

Honda 41341-752-620

PINION, DIFFERENTIAL (14T)

$

$

Not available

10

Honda 44111-759-000

TUBE, FR. AXLE

$

$

Not available

12

Honda 44131-759-000

BRACKET, FR. AXLE

$

$

Not available

13

Honda 44138-759-000

PIN, PIVOT CENTER

$

$

Not available

14

Honda 44331-752-000

NUT, LOCK (55MM)

$

$

Not available

15

Honda 44332-752-000

NUT, LOCK (25MM)

$

$

Not available

16

Honda 90122-428-000

WASHER, PIVOT BOLT (NOT AVAILABLE)

$

$

Currently unavailable

17

Honda 90504-SB0-000

WASHER, PLAIN (12MM)

$5.49

$

Usually ships in 3-6 days

0

18

Honda 90521-750-000

WASHER A, DIFFERENTIAL PINION (16.2X30X0.7)

$5.49

$

Usually ships in 3-6 days

0

18

Honda 90522-750-000

WASHER B, DIFFERENTIAL PINION (16.2X30X0.8)

$

$

Not available

18

Honda 90523-750-000

WASHER C, DIFFERENTIAL PINION (16.2X30X0.9)

$

$

Not available

18

Honda 90524-750-000

WASHER D, DIFFERENTIAL PINION (16.2X30X1.0)

$5.49

$

Usually ships in 3-6 days

0

19

Honda 90525-750-000

WASHER, DIFFERENTIAL GEAR

$5.49

$

In Stock, only 2 left!

0

20

Honda 90581-752-000

SHIM, PINION (45.5X51.5X1.35) (A)

$17.99

$

Usually ships in 3-6 days

0

20

Honda 90582-752-000

SHIM, PINION (45.5X51.5X1.4) (B)

$

$

Not available

20

Honda 90583-752-000

SHIM, PINION (45.5X51.5X1.45) (C)

$17.99

$

In Stock, only 1 left!

0

20

Honda 90584-752-000

SHIM, PINION (45.5X51.5X1.5) (D)

$13.99

$

Usually ships in 3-6 days

0

20

Honda 90585-752-000

SHIM, PINION (45.5X51.5X1.55) (E)

$

$

Not available

20

Honda 90586-752-000

SHIM, PINION (45.5X51.5X1.6) (F)

$

$

Not available

20

Honda 90587-752-000

SHIM, PINION (45.5X51.5X1.65) (G)

$

$

Not available

20

Honda 90588-752-000

SHIM, PINION (45.5X51.5X1.7) (H)

$17.99

$

In Stock, only 1 left!

0

20

Honda 90589-752-000

SHIM, PINION (45.5X51.5X1.75) (I)

$17.99

$

Usually ships in 3-6 days

0

20

Honda 90590-752-000

SHIM, PINION (45.5X51.5X1.8) (J)

$17.99

$

Usually ships in 3-6 days

0

20

Honda 90591-752-000

SHIM, PINION (45.5X51.5X1.85) (K)

$

$

Not available

20

Honda 90592-752-000

SHIM, PINION (45.5X51.5X1.9) (L)

$17.99

$

Usually ships in 3-6 days

0

20

Honda 90593-752-000

SHIM, PINION (45.5X51.5X1.95) (M)

$

$

Not available

20

Honda 90594-752-000

SHIM, PINION (45.5X51.5X2.0) (N)

$

$

Not available

20

Honda 90595-752-000

SHIM, PINION (45.5X51.5X2.05) (O)

$

$

Not available

20

Honda 90596-752-000

SHIM, PINION (45.5X51.5X2.1) (P)

$

$

Not available

20

Honda 90598-752-000

SHIM, PINION (45.5X51.5X1.25) (R)

$17.99

$

Usually ships in 3-6 days

0

20

Honda 90599-752-000

SHIM, PINION (45.5X51.5X1.3) (S)

$17.99

$

Usually ships in 3-6 days

0

21

Honda 90601-679-000

CIRCLIP (OUTER) (20MM)

$8.99

$

Usually ships in 3-6 days

0

22

Honda 91002-HA5-003

SEE PART DETAILS - PRI; BEARING, SPECIAL (22) (KOYO)

$

$

Not available

23

Honda 91071-759-004

BEARING, BALL (5205) (25X52X20.6)

$106.99

$

Usually ships in 3-6 days

0

24

Honda 91257-759-004

OIL SEAL (22X58X10.5)

$

$

Not available

26

Honda 91355-759-003

O-RING (21.8X2.4)

$2.49

$

Usually ships in 3-6 days

0

28

Honda 91870-759-000

SHIM A, FR. DIFFERENTIAL (1.0)

$

$

Not available

28

Honda 91871-759-000

SHIM B, FR. DIFFERENTIAL (1.05)

$

$

Not available

28

Honda 91872-759-000

SHIM C, FR. DIFFERENTIAL (1.1)

$

$

Not available

28

Honda 91873-759-000

SHIM D, FR. DIFFERENTIAL (1.15)

$

$

Not available

28

Honda 91874-759-000

SHIM E, FR. DIFFERENTIAL (1.2)

$

$

Not available

28

Honda 91875-759-000

SHIM F, FR. DIFFERENTIAL (1.25)

$

$

Not available

28

Honda 91876-759-000

SHIM G, FR. DIFFERENTIAL (1.3)

$

$

Not available

28

Honda 91877-759-000

SHIM H, FR. DIFFERENTIAL (1.35)

$

$

Not available

28

Honda 91878-759-000

SHIM I, FR. DIFFERENTIAL (1.4)

$

$

Not available

28

Honda 91879-759-000

SHIM J, FR. DIFFERENTIAL (1.45)

$

$

Not available

28

Honda 91880-759-000

SHIM K, FR. DIFFERENTIAL (1.5)

$

$

Not available

28

Honda 91881-759-000

SHIM L, FR. DIFFERENTIAL (1.55)

$

$

Not available

28

Honda 91882-759-000

SHIM M, FR. DIFFERENTIAL (1.6)

$

$

Not available

28

Honda 91883-759-000

SHIM N, FR. DIFFERENTIAL (1.65)

$

$

Not available

28

Honda 91884-759-000

SHIM O, FR. DIFFERENTIAL (1.7)

$

$

Not available

28

Honda 91885-759-000

SHIM P, FR. DIFFERENTIAL (1.75)

$

$

Not available

28

Honda 91886-759-000

SHIM Q, FR. DIFFERENTIAL (1.8)

$

$

Not available

28

Honda 91887-759-000

SHIM R, FR. DIFFERENTIAL (1.85)

$

$

Not available

28

Honda 91888-759-000

SHIM S, FR. DIFFERENTIAL (1.9)

$

$

Not available

28

Honda 91889-759-000

SHIM T, FR. DIFFERENTIAL (1.95)

$

$

Not available

28

Honda 91890-759-000

SHIM U, FR. DIFFERENTIAL (2.0)

$

$

Not available

29

Honda 92800-20000

BOLT, DRAIN PLUG (20MM)

$7.49

$

Usually ships in 3-6 days

0

30

Honda 94011-14080-0S

NUT, CASTLE (14MM)

$

$

Not available

31

Honda 94109-20000

WASHER, DRAIN PLUG (20MM)

$1.99

$

In Stock, only 4 left!

0

32

Honda 94201-30450

PIN, COTTER (3.0X45)

$1.49

$

In Stock, Qty 10

0

33

Honda 94305-40322

PIN, SPRING (4X32)

$2.99

$

In Stock, only 2 left!

0

34

Honda 94520-68000

CIRCLIP (INNER) (68MM)

$8.49

$

Usually ships in 3-6 days

0

35

Honda 95701-12055-08

BOLT, FLANGE (12X55)

$4.49

$

Usually ships in 3-6 days

0

36

Honda 96100-60080-00

BEARING, RADIAL BALL (6008)

$39.99

$

Usually ships in 3-6 days

0

37

Honda 96100-62100-00

BEARING, RADIAL BALL (6210)

$72.99

$

Usually ships in 3-6 days

0
