H6522 A4H (TZAD) - Honda Compact Tractor, Made in Japan (SN: TZAD-1000001 - TZAD-1001869) CLUTCH Parts Diagram

Compact Tractor, Made in Japan

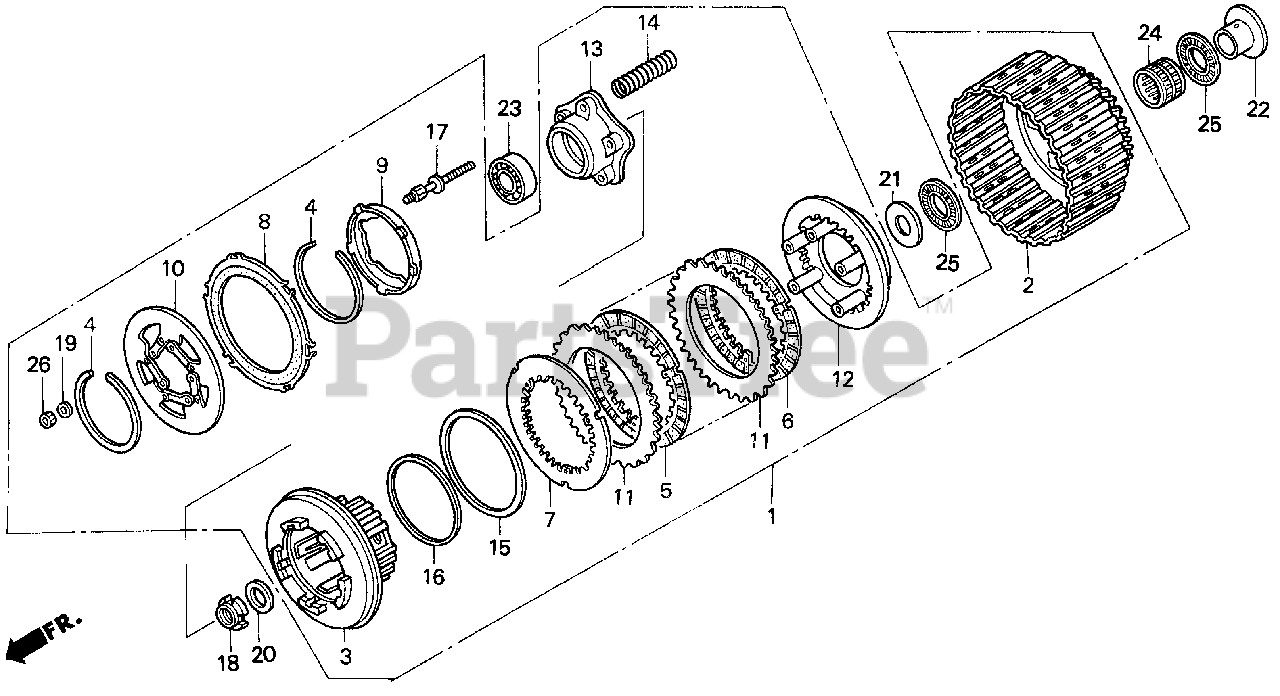

CLUTCH Parts Diagram

  • Title
1

Honda 22000-759-612

CLUTCH ASSY.

$

$

Not available

2

Honda 22100-759-003

CLUTCH (OUTER)

$

$

Not available

3

Honda 22120-759-611

CENTER, CLUTCH

$

$

Not available

4

Honda 22125-752-003

SET-RING (100.5MM)

$

$

Not available

5

Honda 22200-759-013

DISK A, CLUTCH FRICTION

$34.99

$

In Stock, only 1 left!

0

6

Honda 22201-759-013

DISK A, CLUTCH FRICTION

$

$

Not available

7

Honda 22202-759-013

DISK B, CLUTCH FRICTION

$

$

Not available

8

Honda 22204-759-003

PLATE B, BRAKE

$

$

Not available

9

Honda 22208-759-003

PLATE, OIL FENCE

$12.99

$

Usually ships in 3-6 days

0

10

Honda 22210-759-003

PLATE C, BRAKE

$

$

Not available

11

Honda 22321-759-003

PLATE, CLUTCH

$15.99

$

In Stock, only 1 left!

0

12

Honda 22350-759-003

PLATE, CLUTCH PRESSURE

$

$

Not available

13

Honda 22361-759-003

PLATE, CLUTCH LIFTER

$

$

Not available

14

Honda 22401-759-003

SPRING, CLUTCH

$

$

Not available

15

Honda 22405-759-003

SPRING, CONED DISK

$

$

Not available

16

Honda 22406-759-003

SEAT, SPRING

$

$

Not available

17

Honda 90050-759-003

BOLT, SPECIAL (6X28)

$10.99

$

Usually ships in 3-6 days

0

18

Honda 90306-759-003

NUT, LOCK (20MM)

$54.99

$

Usually ships in 3-6 days

0

19

Honda 90401-752-003

WASHER (10MM)

$2.99

$

Usually ships in 3-6 days

0

20

Honda 90432-121-000

WASHER, LOCK

$5.99

$

Usually ships in 3-6 days

0

21

Honda 90529-759-000

WASHER, THRUST (23X42X3)

$

$

Not available

22

Honda 90530-759-010

COLLAR (25X30X30)

$40.99

$

Usually ships in 3-6 days

0

23

Honda 91001-MG7-000

BEARING, BALL (6905)

$17.99

$

Usually ships in 3-6 days

0

24

Honda 91105-PH8-901

BEARING, NEEDLE (32X37X26)

$45.99

$

Usually ships in 3-6 days

0

25

Honda 91059-759-003

BEARING, NEEDLE (32X47X2)

$

$

Not available

26

Honda 94001-05000-0S

NUT, HEX. (5MM)

$2.49

$

Usually ships in 3-6 days

0
