H6522 A4H/A (TZAD) - Honda Compact Tractor, Made in Japan (SN: TZAD-1001870 - TZAD-1099999) SEAT Parts Diagram

Compact Tractor, Made in Japan

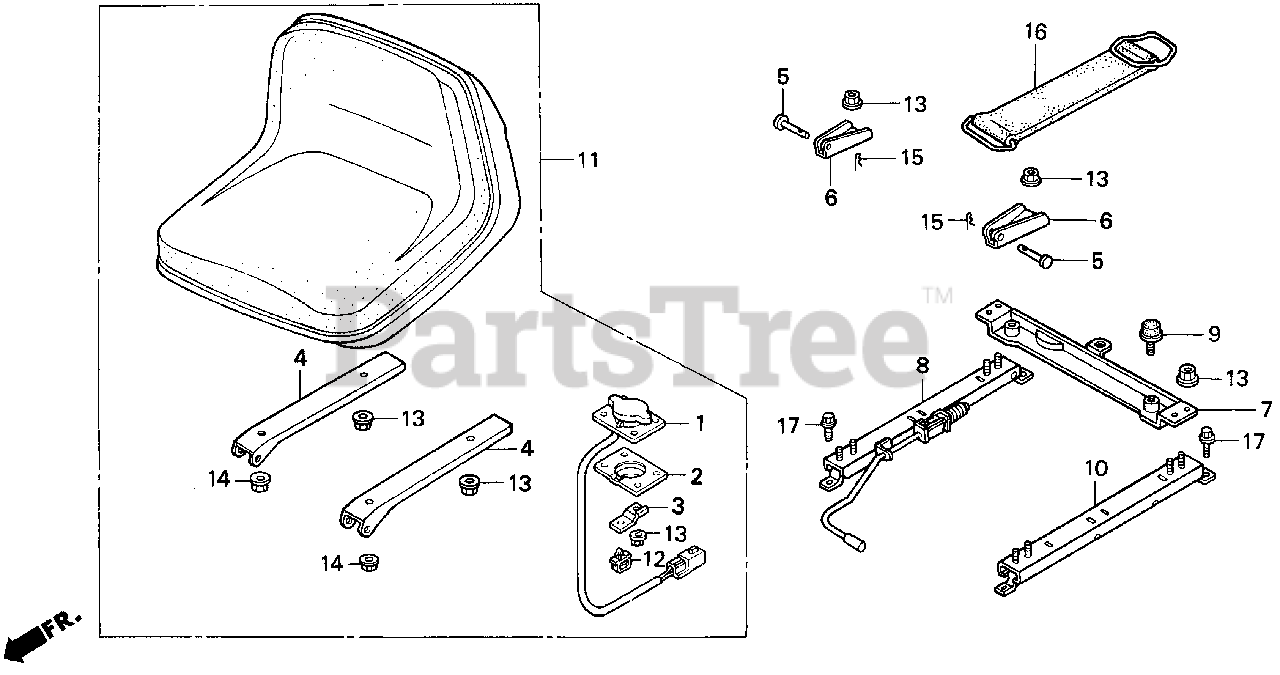

SEAT Parts Diagram

  • Title

1

Honda 35461-769-003

SWITCH, SEAT

$

$

Not available

2

Honda 35802-751-641

COVER, SEAT SWITCH

$

$

Not available

3

Honda 35806-758-000

BASE, CLIP

$5.99

$

Usually ships in 3-6 days

0

4

Honda 77223-750-003

BASE, SEAT (UPPER)

$62.99

$

Usually ships in 3-6 days

0

5

Honda 77226-750-003

PIN, SEAT BASE (8MM)

$6.49

$

Usually ships in 3-6 days

0

6

Honda 77501-764-640

HINGE, SEAT

$

$

Not available

7

Honda 77502-764-641

CROSSMEMBER, SLIDE ADJUSTER

$

$

Not available

8

Honda 77510-759-013

ADJUSTER, R. SLIDE

$

$

Not available

9

Honda 77516-759-000

RUBBER, SEAT

$

$

Not available

10

Honda 77520-759-013

ADJUSTER, L. SLIDE

$

$

Not available

11

Honda 81100-764-640

SEAT ASSY.

$

$

Not available

12

Honda 90654-SA4-003

CLIP, WIRE HARNESS (6MM) (WHITE)

$0.99

$

In Stock, Qty 8

0

13

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0

14

Honda 94071-06080

NUT-WASHER (6MM)

$1.99

$

Usually ships in 3-6 days

0

15

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 13

0

16

Honda 95012-14001

BAND C, BATTERY

$

$

Currently unavailable

17

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0
