H6522 A4H/A (TZAD) - Honda Compact Tractor, Made in Japan (SN: TZAD-1001870 - TZAD-1099999) REAR TRANSMISSION COVER Parts Diagram

Compact Tractor, Made in Japan

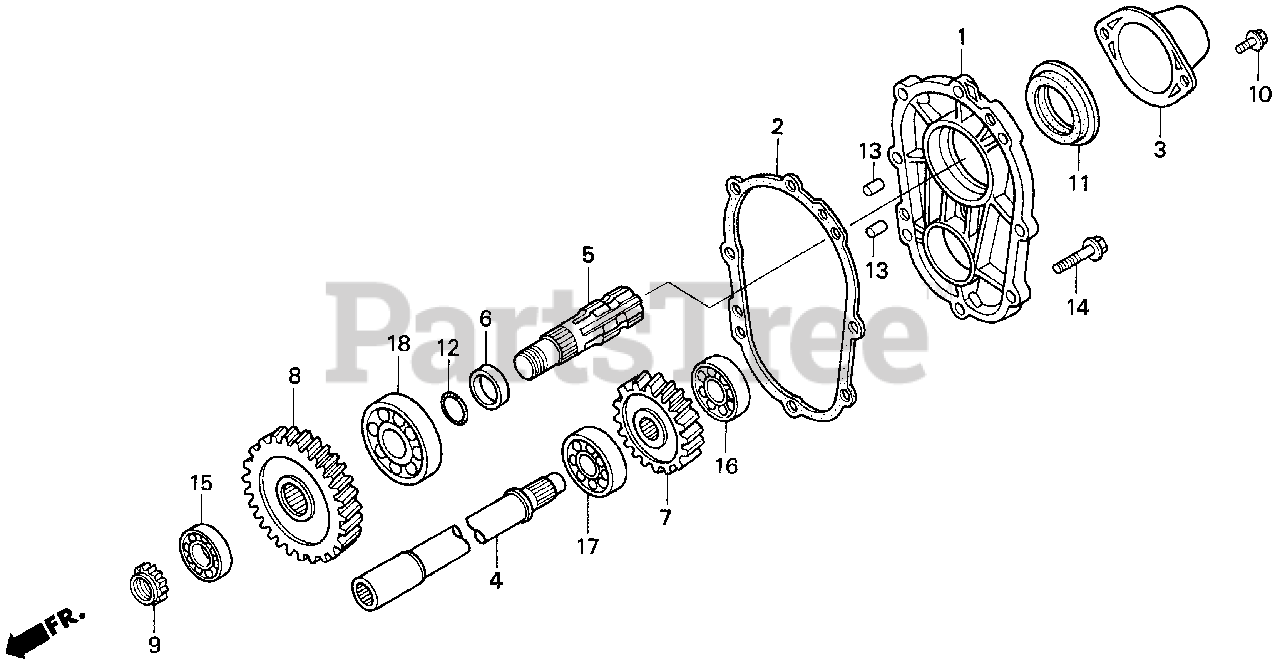

REAR TRANSMISSION COVER Parts Diagram

  • Title

1

Honda 21221-759-010

COVER, RR. TRANSMISSION

$

$

Not available

2

Honda 21223-764-650

GASKET, RR. COVER

$19.99

$

Usually ships in 3-6 days

0

3

Honda 21511-764-640

COVER, P.T.O.

$

$

Not available

4

Honda 23196-764-640

COUNTERSHAFT B, P.T.O.

$

$

Not available

5

Honda 23201-764-640

SHAFT, P.T.O. OUTPUT

$

$

Not available

6

Honda 23202-759-000

COLLAR, P.T.O.

$

$

Not available

7

Honda 23495-764-640

GEAR, P.T.O. FINAL DRIVE (22T)

$

$

Not available

8

Honda 23503-759-610

GEAR, P.T.O. FINAL DRIVEN (43T)

$

$

Not available

9

Honda 44332-752-000

NUT, LOCK (25MM)

$

$

Not available

10

Honda 90122-752-000

BOLT, SPECIAL (6MM)

$3.49

$

Usually ships in 3-6 days

0

11

Honda 91261-759-000

OIL SEAL (40X55X8)

$

$

Not available

12

Honda 91356-425-005

O-RING (29.7X2.4) (NOK)

$3.99

$

In Stock, Qty 15

0

13

Honda 94302-08140

PIN, DOWEL (8X14)

$2.99

$

Usually ships in 3-6 days

0

14

Honda 95701-08032-08

BOLT, FLANGE (8X32)

$2.99

$

Usually ships in 3-6 days

0

15

Honda 96100-62050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205)

$25.99

$

In Stock, only 1 left!

0

16

Honda 96100-63040-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6304)

$19.99

$

Usually ships in 3-6 days

0

17

Honda 96100-63050-00

BEARING, RADIAL BALL (6305)

$20.99

$

Usually ships in 3-6 days

0

18

Honda 96100-63060-00

BEARING, RADIAL BALL (6306)

$42.99

$

Usually ships in 3-6 days

0
