H6522 A4H/A (TZAD) - Honda Compact Tractor, Made in Japan (SN: TZAD-1001870 - TZAD-1099999) HOOD Parts Diagram

Compact Tractor, Made in Japan

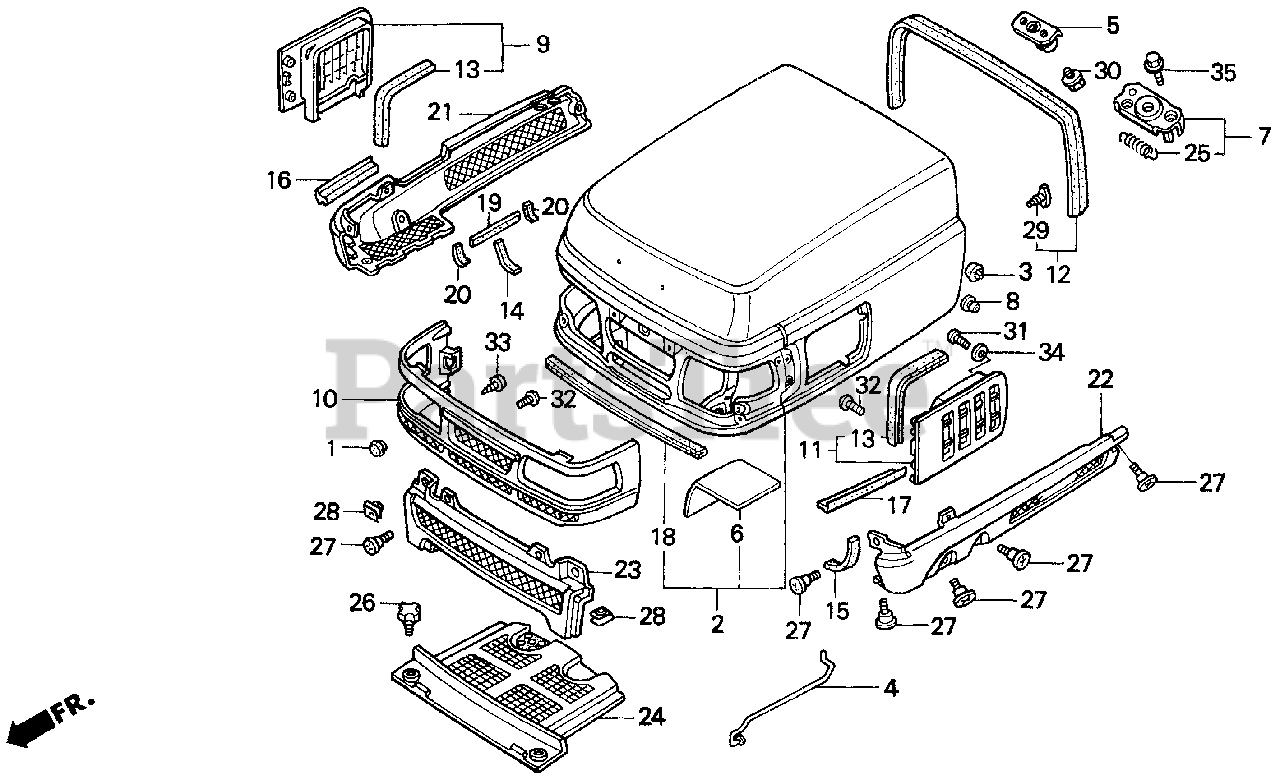

HOOD Parts Diagram

  • Title

1

Honda 53125-174-670

PLUG, HANDLE COVER (LOWER)

$2.49

$

Usually ships in 3-6 days

0

2

Honda 60100-764-641ZA

HOOD ASSY. *R165* (JOLLY RED)

$

$

Not available

3

Honda 60135-759-000

RUBBER, HOOD

$

$

Not available

4

Honda 60161-759-000

STOPPER, HOOD OPEN

$

$

Not available

5

Honda 60170-759-003

STRIKER ASSY., HOOD

$

$

Not available

6

Honda 60176-759-000

HOOD GLASS WOOL

$

$

Not available

7

Honda 60190-759-003

LOCK ASSY., HOOD

$

$

Not available

8

Honda 60528-759-000

BUSH, STIFFENER

$

$

Not available

9

Honda 60540-759-000ZA

GARNISH, R. HOOD *NH105* (MAT BLACK)

$

$

Not available

10

Honda 60545-764-640ZB

GARNISH, FR. HOOD *NH105* (MAT BLACK)

$

$

Not available

11

Honda 60550-759-000ZA

GARNISH, L. HOOD *NH105* (MAT BLACK)

$

$

Not available

12

Honda 60551-759-000

RUBBER, SHROUD SEAL (UPPER)

$

$

Not available

13

Honda 60552-759-300

RUBBER, HOOD SEAL

$

$

Not available

14

Honda 60554-759-000

RUBBER A, R. SIDE SKIRT SEAL

$

$

Not available

15

Honda 60555-759-000

RUBBER, L. SIDE SKIRT SEAL

$

$

Not available

16

Honda 60563-759-000

RUBBER, R. HOOD SEAL (LOWER)

$

$

Not available

17

Honda 60564-759-000

RUBBER, L. HOOD SEAL (LOWER)

$

$

Not available

18

Honda 60565-764-640

RUBBER, FR. SKIRT SEAL

$

$

Not available

19

Honda 60567-759-000

RUBBER B, R. SIDE SKIRT SEAL

$

$

Not available

20

Honda 60568-759-000

RUBBER C, R. SIDE SKIRT SEAL

$

$

Not available

21

Honda 60851-759-000ZB

SKIRT, R. SIDE *R165* (JOLLY RED)

$

$

Not available

22

Honda 60861-759-000ZA

SKIRT, L. SIDE *R165* (JOLLY RED)

$

$

Not available

23

Honda 60871-759-610ZA

SKIRT, FR. *R165* (JOLLY RED)

$

$

Not available

24

Honda 60882-759-610ZA

TRAY, BATTERY (LOWER) *R165* (JOLLY RED)

$

$

Not available

25

Honda 74125-SD4-003

SPRING, HOOD LOCK

$

$

Not available

26

Honda 90103-SA5-300

BOLT, SETTING (6MM)

$

$

Not available

27

Honda 90123-750-000

SCREW, METER VISOR SETTING

$4.99

$

In Stock, Qty 6

0

28

Honda 90675-SA5-003

NUT, CLIP (6MM)

$8.49

$

Usually ships in 3-6 days

0

29

Honda 91513-SE0-003

CLIP, HOOD SEAL

$

$

Not available

30

Honda 93404-06012-07

SEE PART DETAILS - PRI; BOLT-WASHER (6X12)

$2.49

$

Usually ships in 3-6 days

0

31

Honda 93500-05006-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X6)

$1.49

$

Usually ships in 3-6 days

0

32

Honda 93891-05012-08

SCREW-WASHER (5X12)

$1.49

$

In Stock, only 2 left!

0

33

Honda 93903-24320

SCREW, TAPPING (4X12)

$1.49

$

Usually ships in 3-6 days

0

34

Honda 94101-05800

WASHER, PLAIN (5MM)

$1.49

$

In Stock, only 2 left!

0

35

Honda 95701-06010-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

$2.49

$

In Stock, Qty 20+

0
