H6522 A4H/A (TZAD) - Honda Compact Tractor, Made in Japan (SN: TZAD-1001870 - TZAD-1099999) AUXILIARY IDLE SHAFT Parts Diagram
Compact Tractor, Made in Japan

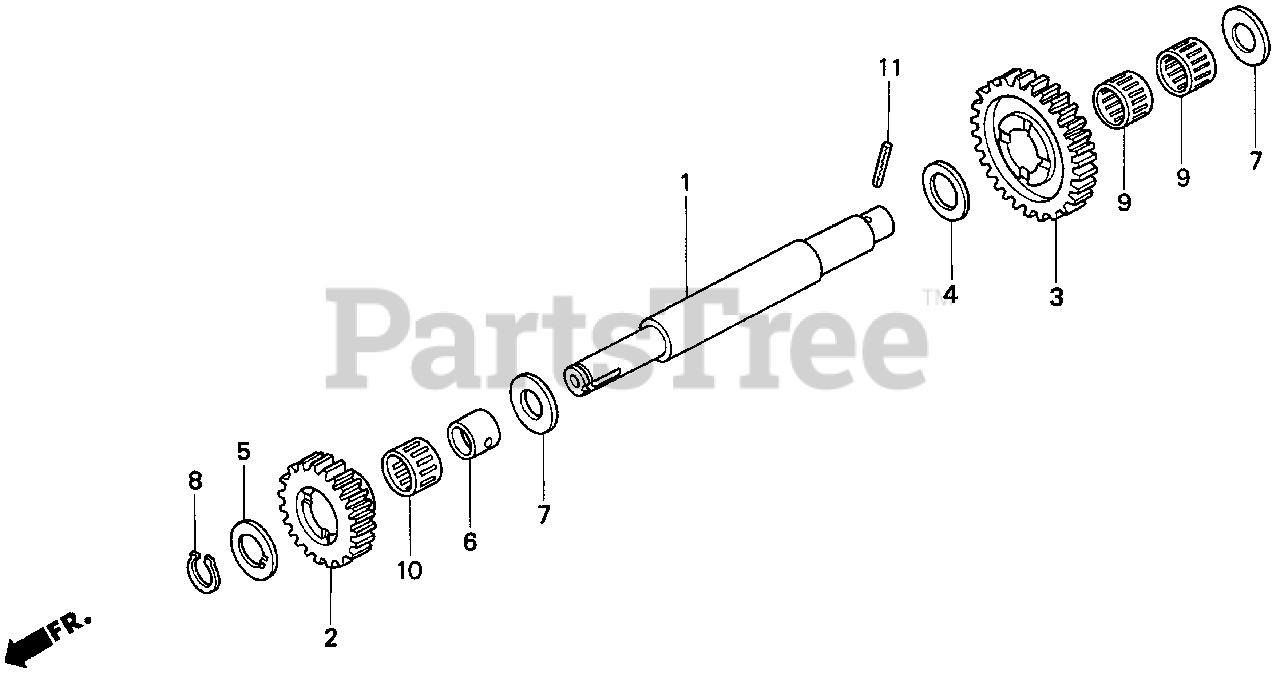

AUXILIARY IDLE SHAFT Parts Diagram
Honda 23160-764-640
SHAFT, AUXILIARY IDLE
$
$
Not available
Honda 23461-759-000
GEAR B, AUXILIARY LOW IDLE
$
$
Not available
Honda 23467-764-640
GEAR, FR. IDLE (28/13T)
$
$
Not available
Honda 90443-430-000
WASHER, THRUST (20X31.5)
$11.99
$
Usually ships in 3-6 days
Honda 90540-759-000
WASHER, THRUST (17X32X2)
$
$
Not available
Honda 90542-759-000
COLLAR (17X21X17)
$
$
Not available
Honda 90584-759-000
WASHER, THRUST (17X31X2)
$
$
Not available
Honda 90601-001-000
CIRCLIP (OUTER) (17MM)
$1.99
$
Usually ships in 3-6 days
Honda 91013-PA9-003
BEARING, NEEDLE (20X24X13) (NTN CORP.)
$22.99
$
Usually ships in 3-6 days
Honda 91051-759-000
BEARING, NEEDLE (21X25X17)
$
$
Not available
Honda 94305-40252
PIN, SPRING (4X25)
$2.99
$
In Stock, Qty 8
