H6522 A4H/A (TZAD) - Honda Compact Tractor, Made in Japan (SN: TZAD-1001870 - TZAD-1099999) ALTERNATOR Parts Diagram

Compact Tractor, Made in Japan

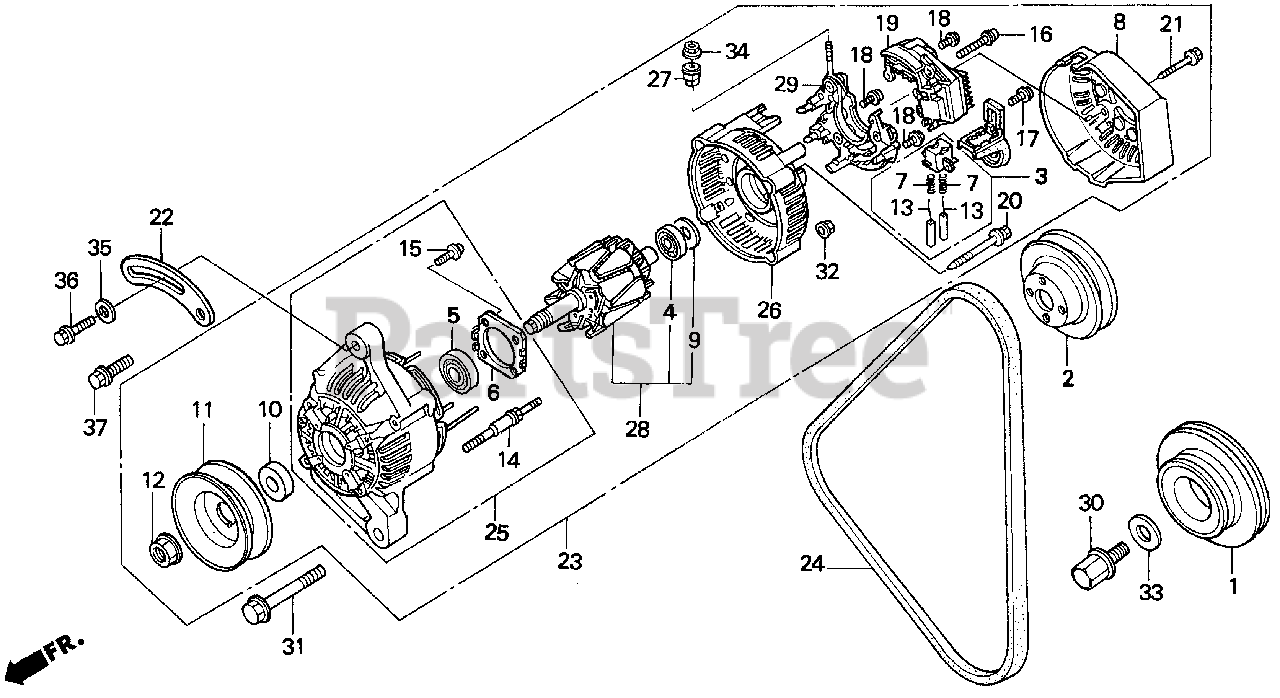

ALTERNATOR Parts Diagram

  • Title

1

Honda 13810-ZG5-L10

PULLEY, CRANKSHAFT

$

$

Not available

2

Honda 19224-ZG5-000

PULLEY, WATER PUMP

$39.99

$

Usually ships in 3-6 days

0

3

Honda 31105-PT0-B91

HOLDER ASSY., ALTERNATOR BRUSH

$

$

Not available

4

Honda 31111-PE9-942

BEARING, RR.

$

$

Not available

5

Honda 31114-PE9-941

BEARING, FR.

$

$

Not available

6

Honda 31116-PE9-942

PLATE, RETAINER

$

$

Not available

7

Honda 31129-PD1-014

SPRING, BRUSH

$

$

Currently unavailable

8

Honda 31135-PN3-003

COVER, RR. END

$

$

Not available

9

Honda 31138-PD1-004

COVER, BEARING

$13.99

$

Usually ships in 3-6 days

0

10

Honda 31141-PN4-003

COLLAR, SPACE

$22.99

$

Usually ships in 3-6 days

0

11

Honda 31141-657-014

PULLEY, ALTERNATOR (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 31142-PN4-003

NUT, PULLEY LOCK

$

$

Not available

13

Honda 31144-P01-003

SEE PART DETAILS - PRI; BRUSH

$

$

Not available

14

Honda 31145-PE9-941

BOLT, STUD

$8.49

$

Usually ships in 3-6 days

0

15

Honda 31146-PE9-941

SCREW-WASHER

$4.99

$

Usually ships in 3-6 days

0

16

Honda 31149-PZ1-003

SCREW

$2.99

$

Usually ships in 3-6 days

0

17

Honda 31148-PD1-004

SCREW-WASHER (4X25)

$4.99

$

Usually ships in 3-6 days

0

18

Honda 31147-PT0-003

SCREW

$4.49

$

Usually ships in 3-6 days

0

19

Honda 31150-PE9-941

REGULATOR ASSY.

$

$

Not available

20

Honda 31152-PE9-942

BOLT-WASHER

$4.49

$

Usually ships in 3-6 days

0

21

Honda 31153-PZ1-003

BOLT

$2.99

$

Usually ships in 3-6 days

0

22

Honda 31313-ZG5-000

STAY, ALTERNATOR

$13.99

$

Usually ships in 3-6 days

0

23

Honda 31600-ZG5-L01

ALTERNATOR ASSY.

$881.99

$

Usually ships in 3-6 days

0

24

Honda 31603-ZG5-L01

BELT, ALTERNATOR (BANDO)

$26.99

$

Usually ships in 3-6 days

0

25

Honda 31605-ZG5-L01

FRAME ASSY., DRIVE END

$

$

Not available

26

Honda 31608-ZG5-L01

FRAME, RR. END

$

$

Not available

27

Honda 31609-ZG5-L01

BUSH, INSULATION

$

$

Not available

28

Honda 31610-ZG5-L01

ROTOR ASSY.

$

$

Not available

29

Honda 31700-ZG5-L01

RECTIFIER ASSY.

$

$

Not available

30

Honda 90017-ZG5-L10

BOLT, SPECIAL (12MM)

$16.99

$

Usually ships in 3-6 days

0

31

Honda 90057-ZG5-L00

BOLT, ALTERNATOR (8X50)

$21.99

$

Usually ships in 3-6 days

0

32

Honda 90231-PD1-014

NUT, HEX. (5MM)

$5.99

$

Usually ships in 3-6 days

0

33

Honda 90402-PB2-000

WASHER (12X30X4.5)

$14.99

$

Usually ships in 3-6 days

0

34

Honda 94001-06080-0S

NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 6

0

35

Honda 94101-08800

SEE PART DETAILS - SUP; WASHER, PLAIN (8MM)

$2.49

$

In Stock, only 3 left!

0

36

Honda 95701-08025-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X25)

$0.99

$

In Stock, Qty 12

0

37

Honda 95701-10022-08

BOLT, FLANGE (10X22)

$2.99

$

Usually ships in 3-6 days

0
