H6522 A4H/A (TZAD) - Honda Compact Tractor, Made in Japan (SN: TZAD-1001870 - TZAD-1099999) 2/4WD CHANGE LEVER Parts Diagram

Compact Tractor, Made in Japan

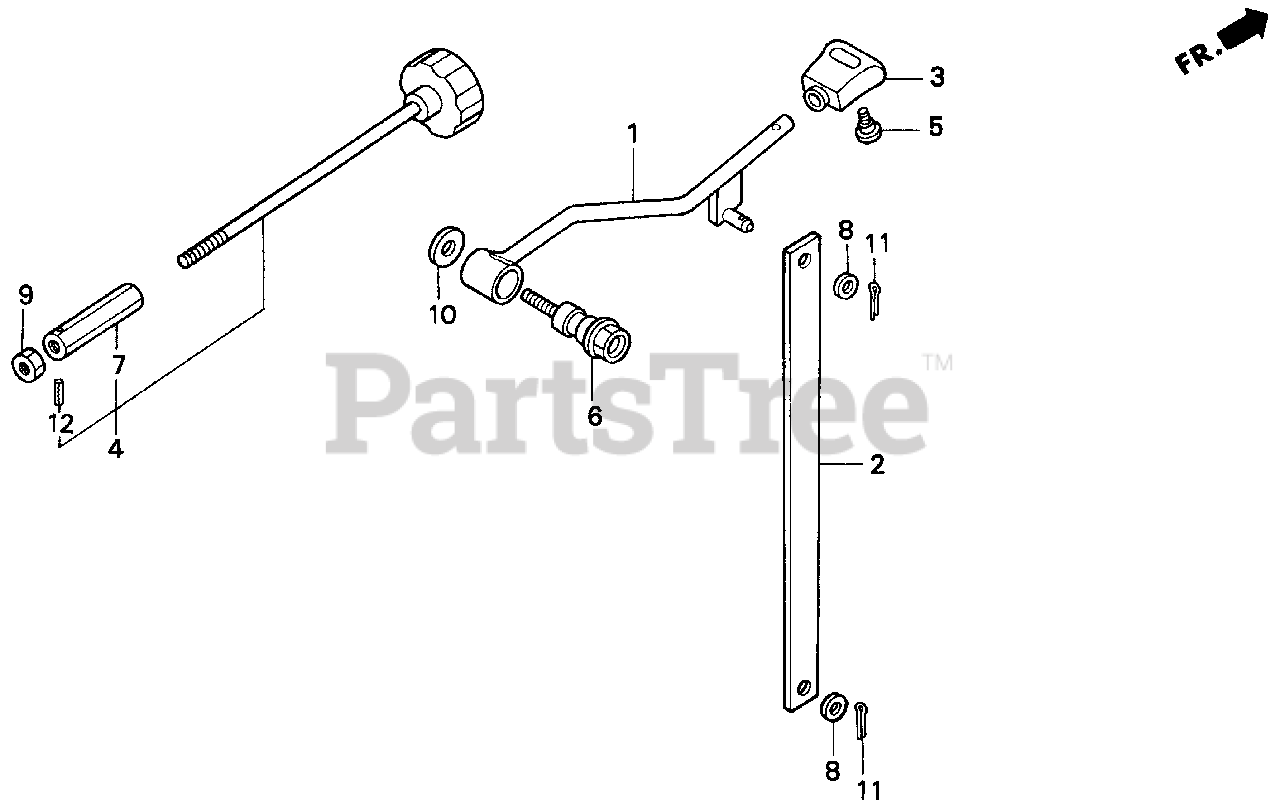

2/4WD CHANGE LEVER Parts Diagram

  • Title

1

Honda 24381-759-000

LEVER, CHANGE (2/4WD)

$

$

Not available

2

Honda 24383-764-640

ROD, CHANGE (2/4WD)

$17.99

$

Usually ships in 3-6 days

0

3

Honda 40351-759-000

GRIP, CHANGE (2/4WD)

$22.99

$

Usually ships in 3-6 days

0

4

Honda 56590-759-020

KNOB, SLOW RETURN

$

$

Not available

5

Honda 90101-GE0-000

SCREW, HINGE PATCH

$3.99

$

Usually ships in 3-6 days

0

6

Honda 90106-759-000

BOLT, CHANGE PIVOT

$18.99

$

Usually ships in 3-6 days

0

7

Honda 90328-759-300

NUT, HEX. (8MMX40)

$34.99

$

Usually ships in 3-6 days

0

8

Honda 90581-GB5-610

WASHER, PLAIN (6MM)

$3.49

$

Usually ships in 3-6 days

0

9

Honda 94002-08000-0S

SEE PART DETAILS - PRI; NUT, HEX. (8MM)

$1.99

$

Usually ships in 3-6 days

0

9

Honda 94002-08080-0S

SEE PART DETAILS - SUP; NUT, HEX. (8MM)

$

$

Currently unavailable

10

Honda 94103-08800

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 10

0

11

Honda 94201-16250

PIN, COTTER (1.6X25)

$1.49

$

Usually ships in 3-6 days

0

12

Honda 94305-30141

PIN, SPRING (3X14)

$1.99

$

Usually ships in 3-6 days

0
