H6522 A4 (TZAD) - Honda Compact Tractor, Made in Japan (SN: TZAD-1000001 - TZAD-1001869) PEDAL Parts Diagram

Compact Tractor, Made in Japan

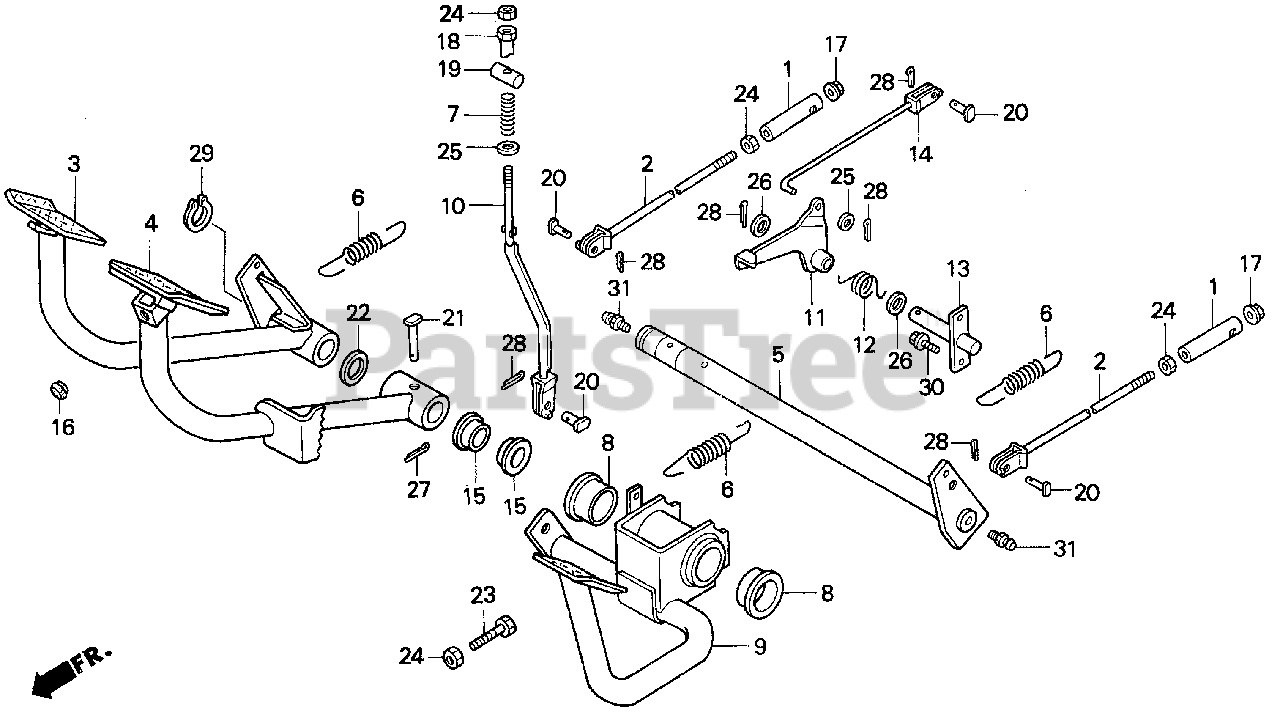

PEDAL Parts Diagram

  • Title
1

Honda 43453-752-000

JOINT (8MM)

$

$

Not available

2

Honda 43454-752-B30

ROD B, RR. BRAKE

$

$

Not available

3

Honda 46510-764-640

PEDAL, R. BRAKE

$

$

Not available

4

Honda 46520-759-000

PEDAL, L. BRAKE

$

$

Not available

5

Honda 46610-764-640

SHAFT, BRAKE

$

$

Not available

6

Honda 46901-759-000

SPRING, CLUTCH PEDAL

$

$

Not available

7

Honda 46902-759-000

SPRING, CLUTCH ROD

$

$

Not available

8

Honda 46905-759-000

BUSH, CLUTCH PEDAL

$

$

Not available

9

Honda 46910-764-640

PEDAL, CLUTCH

$

$

Not available

10

Honda 46930-759-610

ROD, CLUTCH

$

$

Not available

11

Honda 47020-759-000

PEDAL, DIFFERENTIAL LOCK

$

$

Not available

12

Honda 47021-759-000

SPRING, DIFFERENTIAL LOCK PEDAL

$

$

Not available

13

Honda 47022-759-000

PIVOT, DIFFERENTIAL LOCK

$

$

Not available

14

Honda 47046-759-000

ROD, DIFFERENTIAL LOCK

$

$

Not available

15

Honda 50131-759-000

BUSH, BRAKE PEDAL

$

$

Not available

16

Honda 50354-428-000

RUBBER B, STOPPER

$3.99

$

Usually ships in 3-6 days

0

17

Honda 90201-750-000

NUT, HEX. (8MM)

$3.49

$

Usually ships in 3-6 days

0

18

Honda 90301-759-010

NUT, ADJUSTING

$

$

Not available

19

Honda 90701-759-010

PIN, CLUTCH LEVER

$8.99

$

Usually ships in 3-6 days

0

20

Honda 90702-759-000

PIN (8X17.5)

$5.99

$

Usually ships in 3-6 days

0

21

Honda 90756-752-010

PIN, BRAKE SHAFT

$5.99

$

Usually ships in 3-6 days

0

22

Honda 91891-759-000

WASHER, THRUST (24.1X36X1.5)

$

$

Not available

23

Honda 92501-08025-0A

BOLT, CAP (8X25)

$5.49

$

Usually ships in 3-6 days

0

24

Honda 94001-08000-0S

NUT, HEX. (8MM)

$1.99

$

In Stock, Qty 10

0

25

Honda 94102-08800

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 9

0

26

Honda 94102-14800

WASHER, PLAIN (14MM)

$1.49

$

In Stock, only 2 left!

0

27

Honda 94201-20150

PIN, COTTER (2.0X15)

$1.49

$

In Stock, only 2 left!

0

28

Honda 94201-25300

SEE PART DETAILS - PRI; PIN, COTTER (2.5MM)

$1.49

$

Usually ships in 3-6 days

0

29

Honda 94514-24000

CIRCLIP (OUTER) (24MM)

$1.99

$

Usually ships in 3-6 days

0

30

Honda 95701-08020-08

BOLT, FLANGE (8X20)

$2.49

$

Usually ships in 3-6 days

0

31

Honda 96201-10000

FITTING, GREASE (A.76)

$3.49

$

Usually ships in 3-6 days

0
