H6522 A4 (TZAD) - Honda Compact Tractor, Made in Japan (SN: TZAD-1000001 - TZAD-1001869) P.S. OIL PUMP Parts Diagram

Compact Tractor, Made in Japan

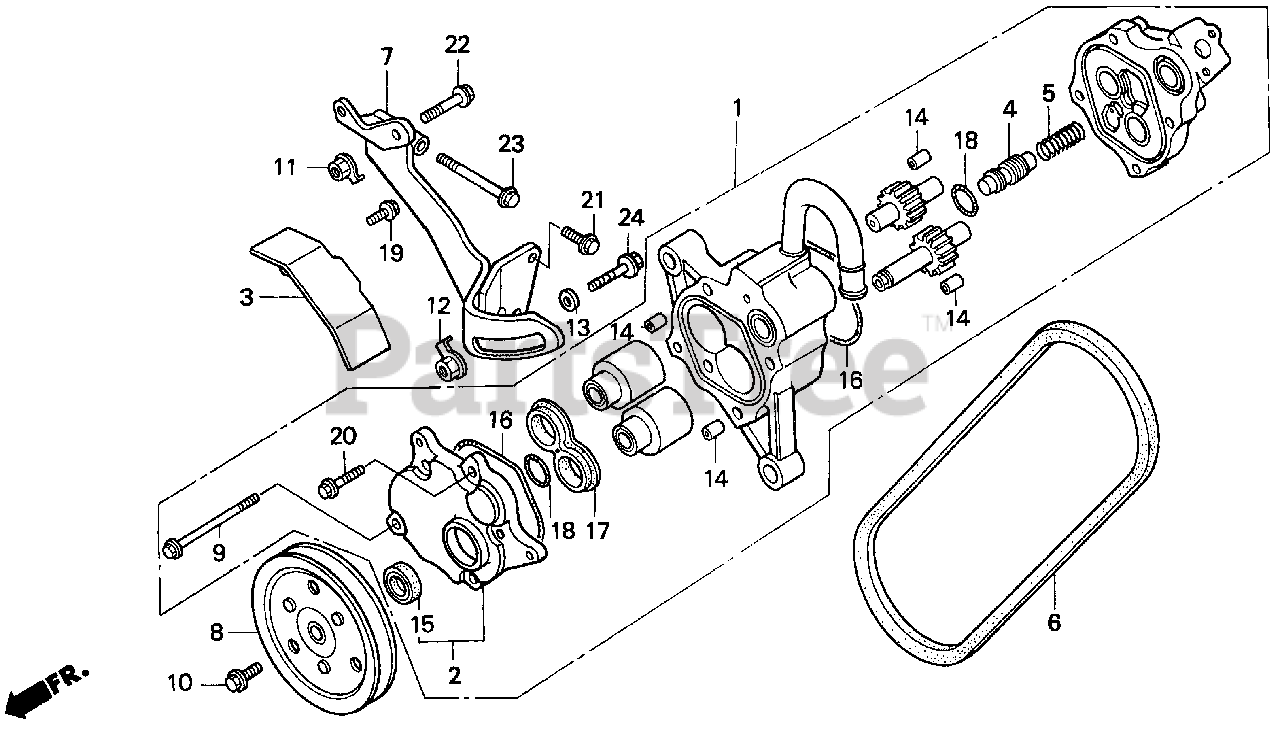

P.S. OIL PUMP Parts Diagram

  • Title
1

Honda 53710-759-610

PUMP SUB-ASSY., POWER STEERING

$

$

Not available

2

Honda 53740-759-610

COVER, FR. POWER STEERING PUMP

$

$

Not available

3

Honda 53750-759-610

COVER, POWER STEERING PULLEY

$

$

Not available

4

Honda 53751-759-610

VALVE A, CONTROL

$

$

Not available

4

Honda 53752-759-610

VALVE B, CONTROL

$

$

Not available

5

Honda 53771-759-610

SPRING, SPOOL

$5.49

$

Usually ships in 3-6 days

0

6

Honda 53781-759-611

BELT, POWER STEERING PUMP (FM-35.5)

$

$

Not available

7

Honda 53791-759-610

BRACKET, POWER STEERING PUMP

$

$

Not available

8

Honda 56480-PC1-040

PULLEY ASSY., POWER STEERING PUMP

$

$

Not available

9

Honda 90001-PE0-000

BOLT, FLANGE (6X72)

$

$

Currently unavailable

10

Honda 90004-PE0-000

BOLT, SPECIAL (8X18)

$12.99

$

Usually ships in 3-6 days

0

11

Honda 90333-759-610

NUT, PLATE BASED (8MM)

$

$

Not available

12

Honda 90438-PH3-950

NUT, PLATE BASED

$

$

Not available

13

Honda 90528-230-000

WASHER (10.2X20)

$3.99

$

Usually ships in 3-6 days

0

14

Honda 90701-679-000

SEE PART DETAILS - SUP; PIN, DOWEL (8X10)
(Superseded to 94301-08100)

$2.99

$

Usually ships in 3-6 days

0

14

Honda 94301-08100

SEE PART DETAILS - PRI; PIN A, DOWEL (8X10)

$2.99

$

Usually ships in 3-6 days

0

15

Honda 91201-PE0-003

OIL SEAL (16X30X7) (NOK)

$

$

Not available

16

Honda 91303-PH1-004

SEAL, HOUSING (ARAI)

$

$

Not available

17

Honda 91307-PH1-004

SEAL, PLUNGER

$10.99

$

Usually ships in 3-6 days

0

18

Honda 91316-PJ7-003

SEE PART DETAILS - SUP; O-RING (19.8X1.9) (NOK)
(Superseded to 91353-KM1-004)

$3.49

$

Usually ships in 3-6 days

0

19

Honda 95701-06014-08

BOLT, FLANGE (6X14)

$2.49

$

In Stock, Qty 9

0

20

Honda 95700-06025-08

BOLT, FLANGE (6X25)

$2.49

$

Usually ships in 3-6 days

0

20

Honda 95701-06025-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25)

$2.49

$

Usually ships in 3-6 days

0

21

Honda 95701-08018-08

BOLT, FLANGE (8X18)

$2.49

$

In Stock, Qty 6

0

22

Honda 95701-08038-08

BOLT, FLANGE (8X38)

$2.99

$

Usually ships in 3-6 days

0

23

Honda 95701-08065-08

BOLT, FLANGE (8X65)

$3.99

$

Usually ships in 3-6 days

0

24

Honda 95701-10040-08

BOLT, FLANGE (10X40)

$2.99

$

Usually ships in 3-6 days

0
