H6522 A4 (TZAD) - Honda Compact Tractor, Made in Japan (SN: TZAD-1000001 - TZAD-1001869) MIDDLE P.T.O. LEVER Parts Diagram

Compact Tractor, Made in Japan

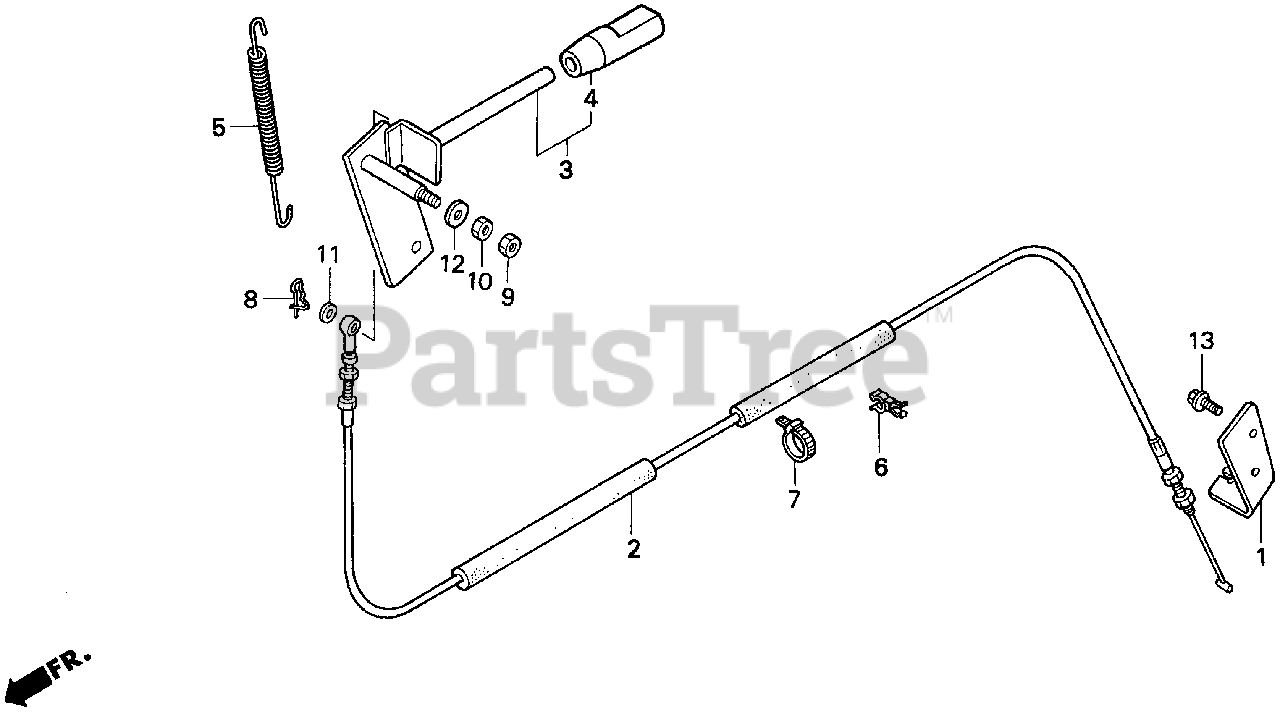

MIDDLE P.T.O. LEVER Parts Diagram

  • Title

1

Honda 24448-764-640

HOLDER, P.T.O. CABLE

$

$

Not available

2

Honda 75187-764-640

CABLE, P.T.O. CLUTCH

$

$

Not available

3

Honda 75260-764-640

LEVER, P.T.O.

$

$

Not available

4

Honda 75261-759-610

KNOB, FR. P.T.O. LEVER

$

$

Not available

5

Honda 75263-764-640

SPRING, P.T.O. LEVER

$

$

Not available

6

Honda 90672-769-000

CLAMP, RESERVE TANK TUBE

$5.99

$

Usually ships in 3-6 days

0

7

Honda 90674-WA8-003

BAND, CABLE (120MM) (BLACK)

$4.49

$

Usually ships in 3-6 days

0

8

Honda 90705-SD2-931

PIN, SNAP (6MM)

$5.49

$

Usually ships in 3-6 days

0

9

Honda 94001-06080-0S

NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 6

0

10

Honda 94002-06080-0S

NUT, HEX. (6MM)

$1.99

$

Usually ships in 3-6 days

0

11

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

12

Honda 94103-06800

WASHER, PLAIN (6MM)

$1.49

$

In Stock, Qty 10

0

13

Honda 95701-06016-08

BOLT, FLANGE (6X16)

$1.99

$

In Stock, Qty 5

0
