H6522 A4 (TZAD) - Honda Compact Tractor, Made in Japan (SN: TZAD-1000001 - TZAD-1001869) FLASHING WARNING LIGHT Parts Diagram

Compact Tractor, Made in Japan

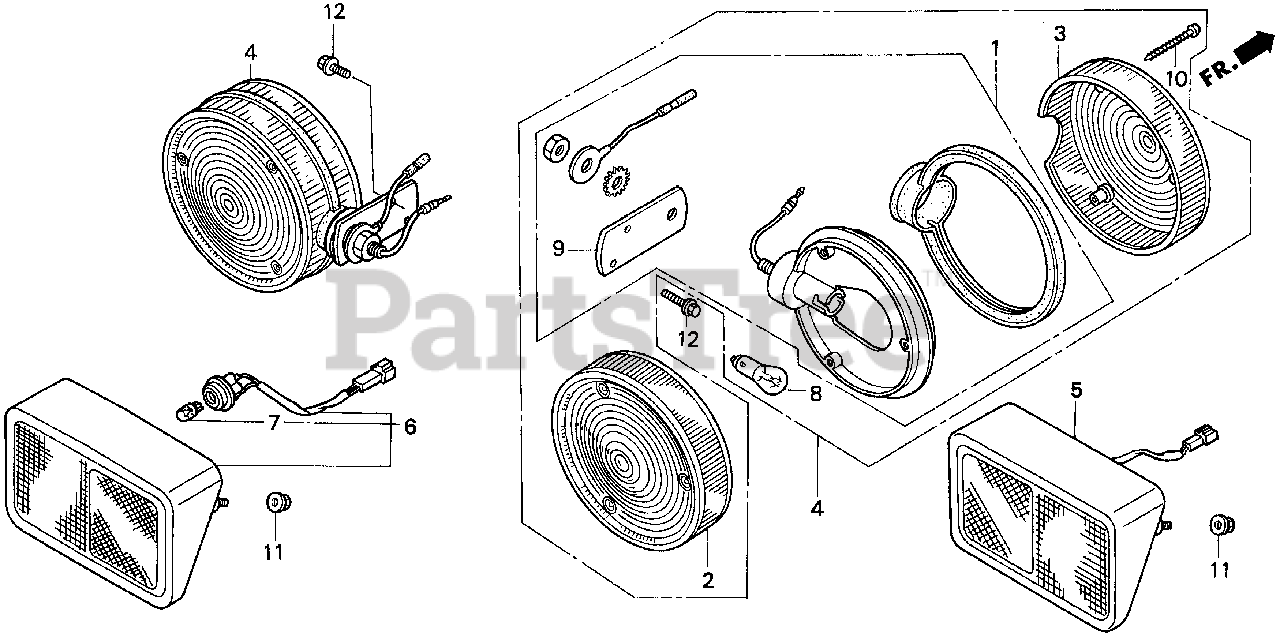

FLASHING WARNING LIGHT Parts Diagram

  • Title
1

Honda 33411-764-641

BASE, TURN SIGNAL

$

$

Currently unavailable

2

Honda 33412-764-641

LENS, TURN SIGNAL (A)

$

$

Not available

3

Honda 33415-764-641

LENS, TURN SIGNAL (B)

$

$

Not available

4

Honda 33430-764-641

LIGHT ASSY., FLASHING WARNING

$

$

Not available

5

Honda 33700-764-641

TAILLIGHT ASSY., R.

$

$

Currently unavailable

6

Honda 33750-764-641

TAILLIGHT ASSY., L.

$

$

Not available

7

Honda 34351-657-921

SEE PART DETAILS - PRI; BULB (12V5W) (STANLEY)

$5.49

$

Usually ships in 3-6 days

0

8

Honda 34903-SB6-671

BULB (12V27W 1156)

$3.99

$

Usually ships in 3-6 days

0

9

Honda 64468-764-640

BRACKET, HAZARD LIGHT

$

$

Not available

10

Honda 90105-764-641

SCREW, TAPPING (4X40)

$

$

Not available

11

Honda 94050-05080

NUT, FLANGE (5MM)

$0.99

$

In Stock, Qty 6

0

12

Honda 95701-06016-07

BOLT, FLANGE (6X16)

$2.49

$

Usually ships in 3-6 days

0
