H6522 A4/A (TZAD) - Honda Compact Tractor, Made in Japan (SN: TZAD-1001870 - TZAD-1099999) TIMING BELT Parts Diagram

Compact Tractor, Made in Japan

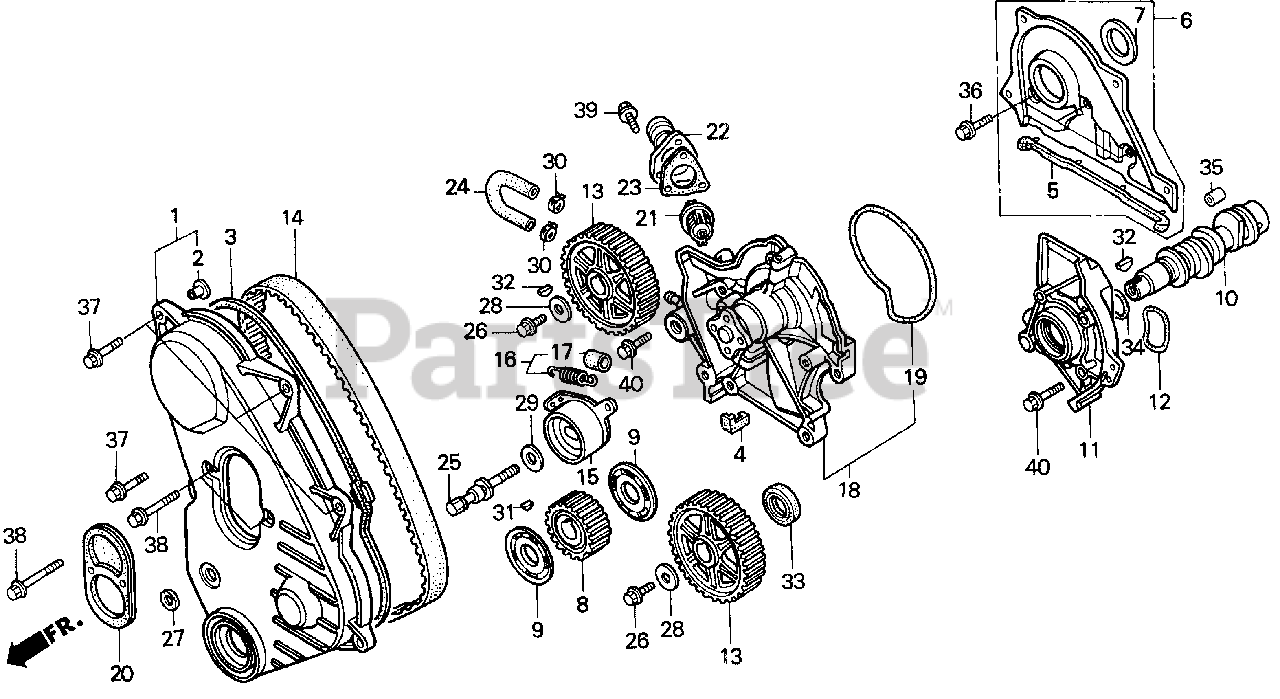

TIMING BELT Parts Diagram

  • Title

1

Honda 11810-ZG5-000

COVER A, TIMING BELT

$96.99

$

Usually ships in 3-6 days

0

2

Honda 11814-634-300

COLLAR, TIMING BELT COVER (LOWER)

$

$

Not available

3

Honda 11831-ZG5-000

RUBBER A, SEAL

$49.99

$

Usually ships in 3-6 days

0

4

Honda 11832-ZG5-000

RUBBER, R. BACK SEAL

$4.49

$

Usually ships in 3-6 days

0

5

Honda 11833-ZG5-L00

RUBBER C, SEAL

$12.99

$

Usually ships in 3-6 days

0

6

Honda 11840-ZG5-L00

COVER, RR. TIMING BELT

$92.99

$

Usually ships in 3-6 days

0

7

Honda 11842-ZG5-300

RUBBER, RR. COVER SEAL

$

$

Not available

8

Honda 13621-PE0-003

PULLEY, TIMING BELT DRIVE

$

$

Not available

9

Honda 13622-PE0-000

SEE PART DETAILS - SUP; PLATE, TIMING BELT GUIDE

$

$

Not available

10

Honda 14131-ZG5-010

CAMSHAFT, FUEL

$

$

Not available

11

Honda 14140-ZG5-010

COVER, FUEL CAM

$96.99

$

Usually ships in 3-6 days

0

12

Honda 14142-ZG5-000

GASKET, FUEL CAM COVER

$6.99

$

Usually ships in 3-6 days

0

13

Honda 14211-PK1-003

PULLEY, TIMING BELT DRIVEN

$

$

Not available

14

Honda 14400-ZG5-004

BELT, TIMING

$

$

Not available

15

Honda 14510-ZG5-003

TENSIONER, TIMING BELT

$

$

Not available

16

Honda 14520-ZG5-000

SEE PART DETAILS - SUP; SPRING, TIMING BELT ADJUSTING

$

$

Currently unavailable

17

Honda 14522-ZG5-000

BOOT, SPRING

$2.99

$

Usually ships in 3-6 days

0

18

Honda 19200-ZG5-L02

WATER PUMP

$299.99

$

Usually ships in 3-6 days

0

19

Honda 19222-ZG5-L01

O-RING, WATER PUMP

$

$

Not available

20

Honda 19225-ZG5-000

RUBBER, WATER PUMP SEAL

$

$

Not available

21

Honda 19301-ZG5-003

THERMOSTAT

$56.99

$

Usually ships in 3-6 days

0

22

Honda 19315-ZG5-L00

COVER, THERMOSTAT

$

$

Not available

23

Honda 19318-ZG5-800

GASKET, THERMOSTAT COVER (NON-ASBESTOS)

$

$

Not available

24

Honda 19508-ZG5-000

HOSE, WATER BYPASS

$

$

Not available

25

Honda 90016-PH1-003

BOLT, TIMING BELT ADJUSTER

$24.99

$

Usually ships in 3-6 days

0

26

Honda 90031-PT0-003

SEE PART DETAILS - SUP; BOLT-WASHER (8X22)
(Superseded to 90032-ZW5-003)

$7.49

$

Usually ships in 3-6 days

0

27

Honda 90401-634-000

RUBBER, TIMING BELT ADJUSTER

$5.49

$

Usually ships in 3-6 days

0

29

Honda 90501-MB7-610

WASHER (10.3X25)

$6.99

$

Usually ships in 3-6 days

0

30

Honda 90682-SA0-671

CLAMP, CANISTER HOSE

$11.99

$

Usually ships in 3-6 days

0

31

Honda 90704-634-000

KEY (4.5X11.0)

$8.49

$

Usually ships in 3-6 days

0

32

Honda 90741-657-000

KEY (25.4X13)

$9.99

$

Usually ships in 3-6 days

0

33

Honda 91214-ZG5-003

OIL SEAL (29X45X8)

$10.99

$

Usually ships in 3-6 days

0

34

Honda 91301-GE0-000

O-RING (64X2.3)

$5.49

$

Usually ships in 3-6 days

0

35

Honda 94301-10120

SEE PART DETAILS - PRI; PIN, DOWEL (10X12)

$3.49

$

Usually ships in 3-6 days

0

36

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0

37

Honda 95701-06016-08

BOLT, FLANGE (6X16)

$1.99

$

In Stock, Qty 5

0

38

Honda 95701-06020-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X20)

$0.99

$

Usually ships in 3-6 days

0

39

Honda 95701-06025-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25)

$2.49

$

Usually ships in 3-6 days

0

40

Honda 95701-08035-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X35)

$1.99

$

Usually ships in 3-6 days

0
