H6522 A4/A (TZAD) - Honda Compact Tractor, Made in Japan (SN: TZAD-1001870 - TZAD-1099999) REAR TRANSMISSION CASE Parts Diagram

Compact Tractor, Made in Japan

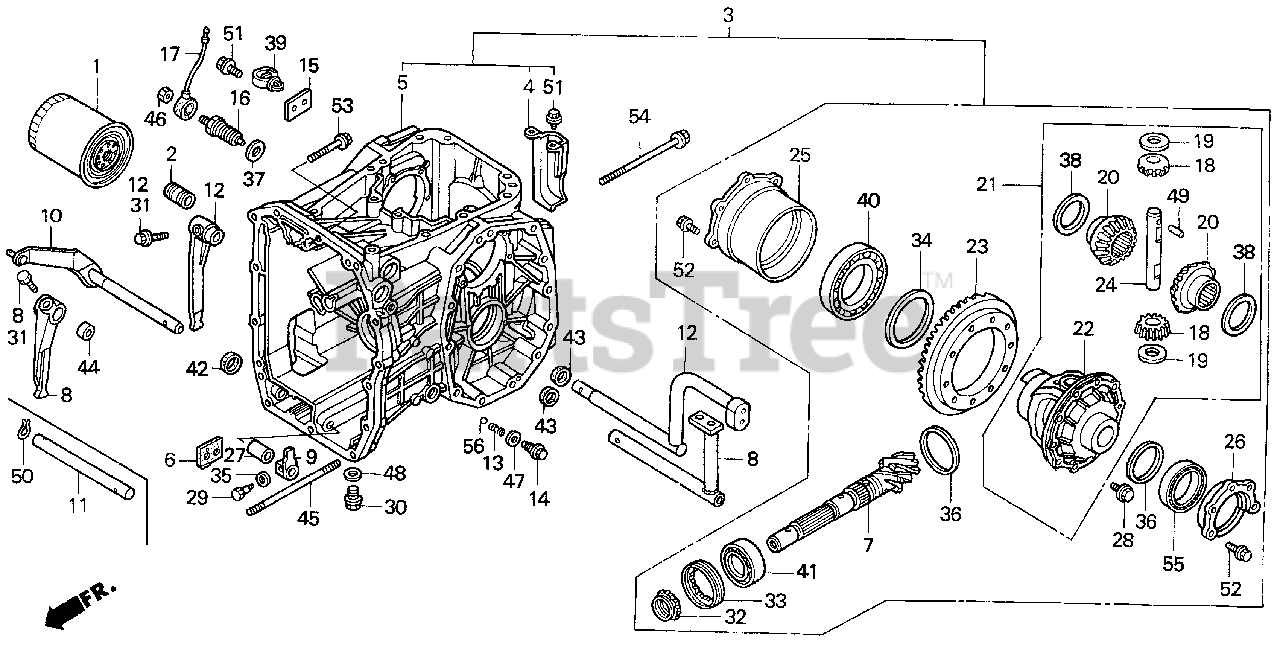

REAR TRANSMISSION CASE Parts Diagram

  • Title

1

Honda 15421-759-003

FILTER, OIL

$

$

Not available

2

Honda 15423-759-003

HOLDER, OIL FILTER

$

$

Not available

3

Honda 20003-764-640

CASE ASSY., RR. TRANSMISSION

$

$

Not available

4

Honda 21122-759-000

PLATE, OIL GUIDE

$

$

Not available

5

Honda 21211-764-640

CASE, RR. TRANSMISSION

$

$

Not available

6

Honda 21216-759-003

PLATE, SUCTION

$

$

Not available

7

Honda 23251-759-000

SHAFT, FINAL

$

$

Not available

8

Honda 24230-764-640

JOINT SET, AUXILIARY LEVER

$

$

Not available

9

Honda 24331-759-000

ARM, SHIFT (2/4WD)

$

$

Not available

10

Honda 24385-764-640

SHAFT, CHANGE (2/4WD)

$

$

Not available

12

Honda 24430-764-640

JOINT SET, P.T.O. LEVER

$

$

Not available

13

Honda 24452-679-000

SPRING, BALL SETTING

$

$

Not available

14

Honda 24519-PB6-000

SCREW, BALL SPRING SETTING

$13.99

$

Usually ships in 3-6 days

0

15

Honda 32103-759-000

BRACKET, WIRE HARNESS CLIP

$3.99

$

Usually ships in 3-6 days

0

16

Honda 35600-HC0-003

SWITCH, REVERSE (TOYO)

$

$

Currently unavailable

17

Honda 35615-763-A00

WIRE, NEUTRAL SWITCH

$12.99

$

In Stock, only 1 left!

0

18

Honda 41341-PC9-000

SEE PART DETAILS - SUP; GEAR, DIFFERENTIAL PINION

$

$

Currently unavailable

18

Honda 41341-PC9-010

SEE PART DETAILS - PRI; GEAR, DIFFERENTIAL PINION

$

$

Not available

19

Honda 41351-689-000

WASHER A, DIFFERENTIAL PINION (0.7MM)

$

$

Not available

19

Honda 41352-689-000

WASHER B, DIFFERENTIAL PINION (0.8MM)

$

$

Not available

19

Honda 41353-689-000

WASHER C, DIFFERENTIAL PINION (0.9MM)

$

$

Not available

19

Honda 41354-689-000

WASHER D, DIFFERENTIAL PINION (1.0MM)

$

$

Not available

19

Honda 41355-PC8-000

WASHER E, DIFFERENTIAL PINION (0.75MM)

$

$

Not available

19

Honda 41356-PC8-000

WASHER F, DIFFERENTIAL PINION (0.85MM)

$

$

Not available

19

Honda 41357-PC8-000

WASHER G, DIFFERENTIAL PINION (0.95MM)

$

$

Not available

20

Honda 45241-759-000

PINION, RR. DRIVE

$

$

Not available

21

Honda 45300-759-000

DIFFERENTIAL SUB-ASSY.

$

$

Not available

22

Honda 45311-759-000

CASE, RR. DIFFERENTIAL

$

$

Not available

23

Honda 45316-759-000

GEAR, RR. DIFFERENTIAL DRIVEN

$

$

Not available

24

Honda 45321-759-000

SHAFT, PINION

$

$

Not available

25

Honda 45381-759-000

HOLDER, R. DIFFERENTIAL BEARING

$

$

Not available

26

Honda 45391-759-000

HOLDER, L. DIFFERENTIAL BEARING

$

$

Not available

27

Honda 73292-752-800

COLLAR (17.3X28)

$

$

Not available

28

Honda 90011-689-000

BOLT, HEX. (10MM)

$12.99

$

Usually ships in 3-6 days

0

29

Honda 90029-PB6-000

BOLT, SPECIAL (8X22)

$8.99

$

Usually ships in 3-6 days

0

30

Honda 90081-PA0-000

SEE PART DETAILS - SUP; BOLT, PLUG (14MM)

$

$

Currently unavailable

30

Honda 90081-PB6-000

SEE PART DETAILS - PRI; BOLT, PLUG (14MM)

$28.99

$

Usually ships in 3-6 days

0

31

Honda 90146-759-000

BOLT, CHANGE ARM

$

$

Not available

32

Honda 90241-MB0-000

NUT, LOCK (30MM)

$27.99

$

Usually ships in 3-6 days

0

33

Honda 90242-MB0-000

NUT, LOCK (64MM)

$42.99

$

Usually ships in 3-6 days

0

34

Honda 90401-759-000

SHIM A, R. RR. DIFFERENTIAL (1.00)

$

$

Not available

34

Honda 90402-759-000

SHIM B, R. RR. DIFFERENTIAL (1.05)

$

$

Not available

34

Honda 90403-759-000

SHIM C, R. RR. DIFFERENTIAL (1.10)

$

$

Not available

34

Honda 90404-759-000

SHIM D, R. RR. DIFFERENTIAL (1.15)

$

$

Not available

34

Honda 90405-759-000

SHIM E, R. RR. DIFFERENTIAL (1.20)

$

$

Not available

34

Honda 90406-759-000

SHIM F, R. RR. DIFFERENTIAL (1.25)

$

$

Not available

34

Honda 90407-759-000

SHIM G, R. RR. DIFFERENTIAL (1.30)

$

$

Not available

34

Honda 90408-759-000

SHIM H, R. RR. DIFFERENTIAL (1.35)

$21.99

$

Usually ships in 3-6 days

0

34

Honda 90409-759-000

SHIM I, R. RR. DIFFERENTIAL (1.40)

$

$

Not available

34

Honda 90410-759-000

SHIM J, R. RR. DIFFERENTIAL (1.45)

$

$

Not available

34

Honda 90411-759-000

SHIM K, R. RR. DIFFERENTIAL (1.50)

$

$

Not available

34

Honda 90412-759-000

SHIM L, R. RR. DIFFERENTIAL (1.55)

$

$

Not available

34

Honda 90413-759-000

SHIM M, R. RR. DIFFERENTIAL (1.60)

$

$

Not available

34

Honda 90414-759-000

SHIM N, R. RR. DIFFERENTIAL (1.65)

$

$

Not available

34

Honda 90415-759-000

SHIM O, R. RR. DIFFERENTIAL (1.70)

$

$

Not available

34

Honda 90416-759-000

SHIM P, R. RR. DIFFERENTIAL (1.75)

$

$

Not available

34

Honda 90417-759-000

SHIM Q, R. RR. DIFFERENTIAL (1.80)

$

$

Not available

34

Honda 90418-759-000

SHIM R, R. RR. DIFFERENTIAL (1.85)

$

$

Not available

34

Honda 90419-759-000

SHIM S, R. RR. DIFFERENTIAL (1.90)

$

$

Not available

34

Honda 90420-759-000

SHIM T, R. RR. DIFFERENTIAL (1.95)

$

$

Not available

34

Honda 90421-759-000

SHIM U, R. RR. DIFFERENTIAL (2.00)

$

$

Not available

35

Honda 90412-679-000

WASHER, CONICAL SPRING (8MM)

$6.99

$

Usually ships in 3-6 days

0

36

Honda 90422-759-000

SHIM A, L. RR. DIFFERENTIAL (1.00)

$

$

Not available

36

Honda 90423-759-000

SHIM B, L. RR. DIFFERENTIAL (1.05)

$

$

Not available

36

Honda 90424-759-000

SHIM C, L. RR. DIFFERENTIAL (1.10)

$

$

Not available

36

Honda 90425-759-000

SHIM D, L. RR. DIFFERENTIAL (1.15)

$

$

Not available

36

Honda 90426-759-000

SHIM E, L. RR. DIFFERENTIAL (1.20)

$

$

Not available

36

Honda 90427-759-000

SHIM F, L. RR. DIFFERENTIAL (1.25)

$

$

Not available

36

Honda 90428-759-000

SHIM G, L. RR. DIFFERENTIAL (1.30)

$

$

Not available

36

Honda 90429-759-000

SHIM H, L. RR. DIFFERENTIAL (1.35)

$

$

Not available

36

Honda 90430-759-000

SHIM I, L. RR. DIFFERENTIAL (1.40)

$

$

Not available

36

Honda 90431-759-000

SHIM J, L. RR. DIFFERENTIAL (1.45)

$19.99

$

Usually ships in 3-6 days

0

36

Honda 90432-759-000

SHIM K, L. RR. DIFFERENTIAL (1.50)

$

$

Not available

36

Honda 90433-759-000

SHIM L, L. RR. DIFFERENTIAL (1.55)

$

$

Not available

36

Honda 90434-759-000

SHIM M, L. RR. DIFFERENTIAL (1.60)

$

$

Not available

36

Honda 90435-759-000

SHIM N, L. RR. DIFFERENTIAL (1.65)

$

$

Not available

36

Honda 90436-759-000

SHIM O, L. RR. DIFFERENTIAL (1.70)

$

$

Not available

36

Honda 90437-759-000

SHIM P, L. RR. DIFFERENTIAL (1.75)

$

$

Not available

36

Honda 90438-759-000

SHIM Q, L. RR. DIFFERENTIAL (1.80)

$

$

Not available

36

Honda 90439-759-000

SHIM R, L. RR. DIFFERENTIAL (1.85)

$

$

Not available

36

Honda 90440-759-000

SHIM S, L. RR. DIFFERENTIAL (1.90)

$

$

Not available

36

Honda 90441-759-000

SHIM T, L. RR. DIFFERENTIAL (1.95)

$

$

Not available

36

Honda 90442-759-000

SHIM U, L. RR. DIFFERENTIAL (2.00)

$

$

Not available

37

Honda 90443-KR0-000

WASHER, NEUTRAL SWITCH

$1.99

$

Usually ships in 3-6 days

0

38

Honda 90551-759-000

WASHER, THRUST (30.3X50X1.5)

$

$

Not available

39

Honda 90683-SA0-003

CLIP, WIRE HARNESS (25MM)

$12.99

$

Usually ships in 3-6 days

0

40

Honda 91055-759-000

BEARING, RADIAL BALL (6012)

$

$

Not available

41

Honda 91073-759-003

BEARING, RADIAL BALL (5206V12)

$128.99

$

Usually ships in 3-6 days

0

42

Honda 91202-444-023

SEE PART DETAILS - PRI; OIL SEAL (14X24X6) (ARAI)

$5.49

$

In Stock, only 1 left!

0

43

Honda 91205-965-003

OIL SEAL (22X31X5) (ARAI)

$7.99

$

Usually ships in 3-6 days

0

44

Honda 91552-764-640

COLLAR (22.2X28X11)

$

$

Not available

45

Honda 92900-10090-0B

BOLT, STUD (10X90)

$3.99

$

Usually ships in 3-6 days

0

46

Honda 94001-04080-0S

NUT, HEX. (4MM)

$1.49

$

Usually ships in 3-6 days

0

47

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 20+

0

48

Honda 94109-14000

WASHER, DRAIN PLUG (14MM)

$0.99

$

In Stock, Qty 20+

0

49

Honda 94305-40282

PIN, SPRING (4X28)

$2.99

$

In Stock, Qty 12

0

51

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0

52

Honda 95701-08025-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X25)

$0.99

$

In Stock, Qty 12

0

53

Honda 95701-10035-08

BOLT, FLANGE (10X35)

$5.49

$

In Stock, only 3 left!

0

54

Honda 95701-10090-08

BOLT, FLANGE (10X90)

$5.99

$

Usually ships in 3-6 days

0

55

Honda 96100-60100-00

BEARING, RADIAL BALL (6010)

$64.99

$

Usually ships in 3-6 days

0

56

Honda 96211-10000

BALL, STEEL (#10) (5/16)

$1.99

$

Usually ships in 3-6 days

0
