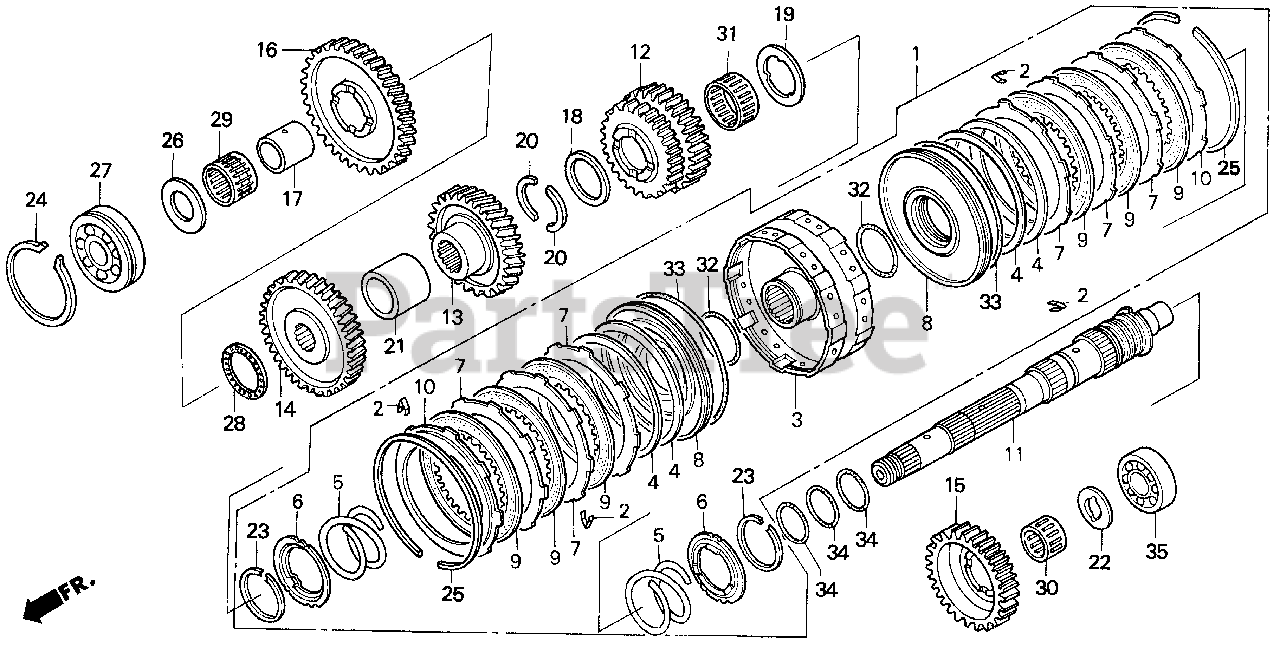

H6522 A4/A (TZAD) - Honda Compact Tractor, Made in Japan (SN: TZAD-1001870 - TZAD-1099999) MAINSHAFT Parts Diagram

Compact Tractor, Made in Japan

MAINSHAFT Parts Diagram

  • Title

1

Honda 22400-759-610

CLUTCH ASSY., FIRST & REVERSE

$

$

Not available

2

Honda 22405-759-610

SPRING, DISK SETTING

$

$

Not available

3

Honda 22470-759-610

GUIDE, FIRST & REVERSE CLUTCH

$

$

Not available

4

Honda 22537-759-610

SPRING, CLUTCH DISK

$26.99

$

Usually ships in 3-6 days

0

5

Honda 22403-764-640

SPRING, CLUTCH RETURN

$

$

Not available

6

Honda 22542-PA9-000

SEAT, CLUTCH SPRING

$9.49

$

Usually ships in 3-6 days

0

7

Honda 22543-PJ4-000

PLATE, CLUTCH (106)

$

$

Not available

8

Honda 22543-759-610

PISTON, CLUTCH

$

$

Not available

9

Honda 22544-PN0-000

DISK, CLUTCH

$

$

Not available

10

Honda 22551-PA9-010

PLATE, CLUTCH END (2.3MM)

$37.99

$

Usually ships in 3-6 days

0

10

Honda 22552-PA9-010

PLATE, CLUTCH END (2.6MM)

$37.99

$

Usually ships in 3-6 days

0

10

Honda 22553-PA9-010

PLATE, CLUTCH END (2.9MM)

$37.99

$

Usually ships in 3-6 days

0

10

Honda 22554-PA9-010

PLATE, CLUTCH END (3.2MM)

$37.99

$

Usually ships in 3-6 days

0

10

Honda 22555-PA9-010

PLATE, CLUTCH END (3.5MM)

$37.99

$

Usually ships in 3-6 days

0

10

Honda 22561-PA9-010

PLATE, CLUTCH END (2.15MM)

$37.99

$

Usually ships in 3-6 days

0

10

Honda 22562-PA9-010

PLATE, CLUTCH END (2.45MM)

$37.99

$

Usually ships in 3-6 days

0

10

Honda 22563-PA9-010

PLATE, CLUTCH END (2.75MM)

$37.99

$

Usually ships in 3-6 days

0

10

Honda 22564-PA9-010

PLATE, CLUTCH END (3.05MM)

$37.99

$

Usually ships in 3-6 days

0

10

Honda 22565-PA9-010

PLATE, CLUTCH END (3.35MM)

$37.99

$

Usually ships in 3-6 days

0

10

Honda 22566-PA9-010

PLATE, CLUTCH END (3.65MM)

$37.99

$

Usually ships in 3-6 days

0

11

Honda 23210-759-610

MAINSHAFT

$

$

Not available

12

Honda 23421-764-640

GEAR, FIRST DRIVE (28/38T)

$

$

Not available

13

Honda 23422-764-640

GEAR, SECOND DRIVE (33T)

$

$

Not available

14

Honda 23423-764-640

GEAR, THIRD DRIVE (38T)

$

$

Not available

15

Honda 23424-759-610

GEAR, REVERSE DRIVE (16T-38T)

$

$

Not available

16

Honda 23566-764-640

GEAR, P.T.O. IDLE (41T-24T)

$

$

Not available

17

Honda 91553-764-641

COLLAR (26X32X27)

$36.99

$

Usually ships in 3-6 days

0

18

Honda 23921-634-000

WASHER A, THRUST (32MM) (-0.02/-0.05) (NOT AVAILABLE)

$

$

Currently unavailable

19

Honda 90411-PA9-010

WASHER, SPLINE (35X50X3.00)

$28.99

$

Usually ships in 3-6 days

0

19

Honda 90412-PA9-010

WASHER, SPLINE (35X50X3.05)

$28.99

$

Usually ships in 3-6 days

0

19

Honda 90413-PA9-010

WASHER, SPLINE (35X50X3.10)

$28.99

$

Usually ships in 3-6 days

0

19

Honda 90414-PA9-010

WASHER, SPLINE (35X50X3.15)

$28.99

$

Usually ships in 3-6 days

0

19

Honda 90415-PA9-010

WASHER, SPLINE (35X50X3.20)

$29.99

$

Usually ships in 3-6 days

0

19

Honda 90418-PA9-000

WASHER, SPLINE (35X50X3.25)

$28.99

$

Usually ships in 3-6 days

0

19

Honda 90419-PA9-000

WASHER, SPLINE (35X50X3.30)

$28.99

$

Usually ships in 3-6 days

0

19

Honda 90420-PA9-000

WASHER, SPLINE (35X50X3.35)

$29.99

$

Usually ships in 3-6 days

0

19

Honda 90421-PA9-000

WASHER, SPLINE (35X50X3.40)

$

$

Not available

20

Honda 90431-PC9-000

COTTER (28MM)

$14.99

$

Usually ships in 3-6 days

0

21

Honda 90511-PH0-000

COLLAR, DISTANCE (28X38X34)

$

$

Currently unavailable

21

Honda 90512-PH0-000

COLLAR, DISTANCE (28X38X34.05)

$

$

Currently unavailable

21

Honda 90513-PH0-000

COLLAR, DISTANCE (28X38X34.10)

$

$

Currently unavailable

21

Honda 90514-PH0-000

COLLAR, DISTANCE (28X38X34.15)

$

$

Currently unavailable

21

Honda 90515-PH0-000

COLLAR, DISTANCE (28X38X34.20)

$

$

Currently unavailable

21

Honda 90516-PH0-000

COLLAR, DISTANCE (28X38X34.25)

$

$

Currently unavailable

21

Honda 90517-PH0-000

COLLAR, DISTANCE (28X38X34.30)

$

$

Currently unavailable

21

Honda 90518-PH0-000

COLLAR, DISTANCE (28X38X33.90)

$

$

Not available

21

Honda 90519-PH0-000

COLLAR, DISTANCE (28X38X33.95)

$

$

Not available

22

Honda 90562-759-000

SHIM B, FINAL SHAFT (2.0MM)

$

$

Not available

23

Honda 90603-P24-A01

SEE PART DETAILS - SUP; CIRCLIP (OUTER) (40MM) (F.C.C.)

$

$

Not available

24

Honda 90603-PB6-000

RING, SNAP (62MM)

$14.99

$

Usually ships in 3-6 days

0

25

Honda 90605-PA9-000

RING, SNAP (114X1.8)

$22.99

$

Usually ships in 3-6 days

0

26

Honda 90831-759-610

WASHER, THRUST (25X45X3.8)

$

$

Not available

26

Honda 90832-759-610

WASHER, THRUST (25X45X3.9)

$

$

Not available

26

Honda 90833-759-610

WASHER, THRUST (25X45X4.0)

$

$

Not available

26

Honda 90834-759-610

WASHER, THRUST (25X45X4.1)

$

$

Not available

26

Honda 90835-759-610

WASHER, THRUST (25X45X4.2)

$

$

Not available

26

Honda 90836-759-610

WASHER, THRUST (25X45X4.3)

$

$

Not available

26

Honda 90837-759-610

WASHER, THRUST (25X45X4.4)

$

$

Not available

26

Honda 90838-759-610

WASHER, THRUST (25X45X4.5)

$

$

Not available

26

Honda 90839-759-610

WASHER, THRUST (25X45X4.6)

$

$

Not available

26

Honda 90840-759-610

WASHER, THRUST (25X45X4.7)

$

$

Not available

26

Honda 90841-759-610

WASHER, THRUST (25X45X4.8)

$

$

Not available

26

Honda 90842-759-610

WASHER, THRUST (25X45X4.9)

$

$

Not available

27

Honda 91004-PA9-003

BEARING, BALL (6305) (TOYO)

$

$

Not available

28

Honda 91018-P56-003

SEE PART DETAILS - PRI; NEEDLE, THRUST (32X44X2)

$29.99

$

Usually ships in 3-6 days

0

29

Honda 91021-415-005

BEARING, NEEDLE (32MM) (TOMUSON)

$

$

Not available

30

Honda 91007-HB3-013

BEARING, NEEDLE (22X27X20)

$31.99

$

Usually ships in 3-6 days

0

31

Honda 91103-PE9-008

BEARING, NEEDLE (32X37X18)

$38.99

$

Usually ships in 3-6 days

0

32

Honda 91302-PA9-003

O-RING (39.8X2.2) (ARAI)

$6.99

$

Usually ships in 3-6 days

0

33

Honda 91303-PA9-004

O-RING (100X2.2) (NOK)

$12.99

$

Usually ships in 3-6 days

0

34

Honda 91307-PA9-003

O-RING (31.2X1.9) (ARAI)

$5.99

$

Usually ships in 3-6 days

0

35

Honda 96100-62040-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6204)

$16.99

$

In Stock, only 2 left!

0
