H6522 A2 (TZAD) - Honda Compact Tractor, Made in Japan (SN: TZAD-1000001 - TZAD-1001869) WHEELS Parts Diagram

Compact Tractor, Made in Japan

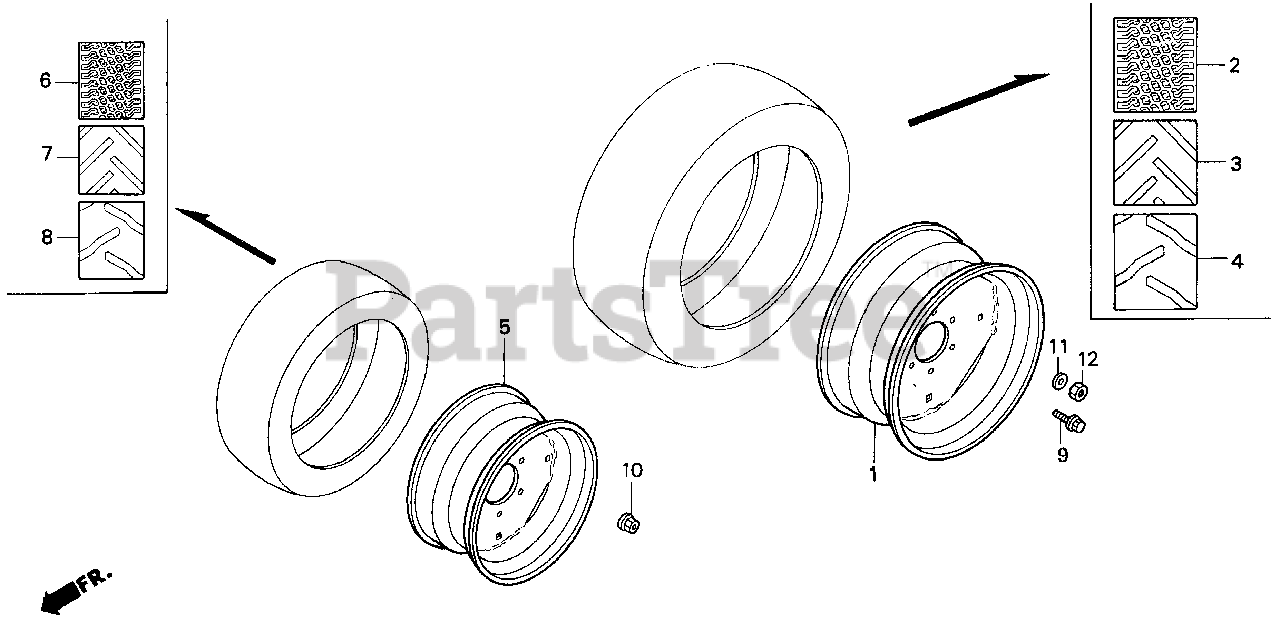

WHEELS Parts Diagram

  • Title

1

Honda 42710-764-641

WHEEL (15X10LB D.C.) (DICO)

$

$

Not available

1

Honda 42710-764-811

WHEEL (16XW8L D.C. DICO)

$

$

Currently unavailable

2

Honda 42751-764-641

TIRE (33X12.50-15) (TURF)

$

$

Not available

3

Honda 42751-764-801

TIRE (12.5L-15 H.F.)

$

$

Currently unavailable

4

Honda 42751-764-811

TIRE (9.5-16 AG.) (GOODYEAR)

$521.99

$

Usually ships in 3-6 days

0

5

Honda 44710-764-641

WHEEL (12X7JA) (DICO)

$135.99

$

Usually ships in 3-6 days

0

5

Honda 44710-764-811

WHEEL (12X5JA) (DICO)

$132.99

$

Usually ships in 3-6 days

0

6

Honda 44751-764-641

TIRE (23X8.50-12) (TURF)

$

$

Currently unavailable

7

Honda 44751-764-801

TIRE (23X8.50-12) (H.F.)

$

$

Currently unavailable

8

Honda 44751-764-811

TIRE (6-12) (AG.) (GOODYEAR)

$249.99

$

Usually ships in 3-6 days

0

9

Honda 90109-759-000

BOLT, HEX. (16X28)

$11.99

$

Usually ships in 3-6 days

0

10

Honda 90304-752-000

NUT, WHEEL (12MM)

$5.99

$

Usually ships in 3-6 days

0

11

Honda 90553-759-000

SEE PART DETAILS - SUP; WASHER, PLAIN (16MM)

$

$

Not available

12

Honda 94030-16200

NUT, HEX. (16MM)

$2.49

$

Usually ships in 3-6 days

0
