H6522 A2 (TZAD) - Honda Compact Tractor, Made in Japan (SN: TZAD-1000001 - TZAD-1001869) SELECT LEVER Parts Diagram

Compact Tractor, Made in Japan

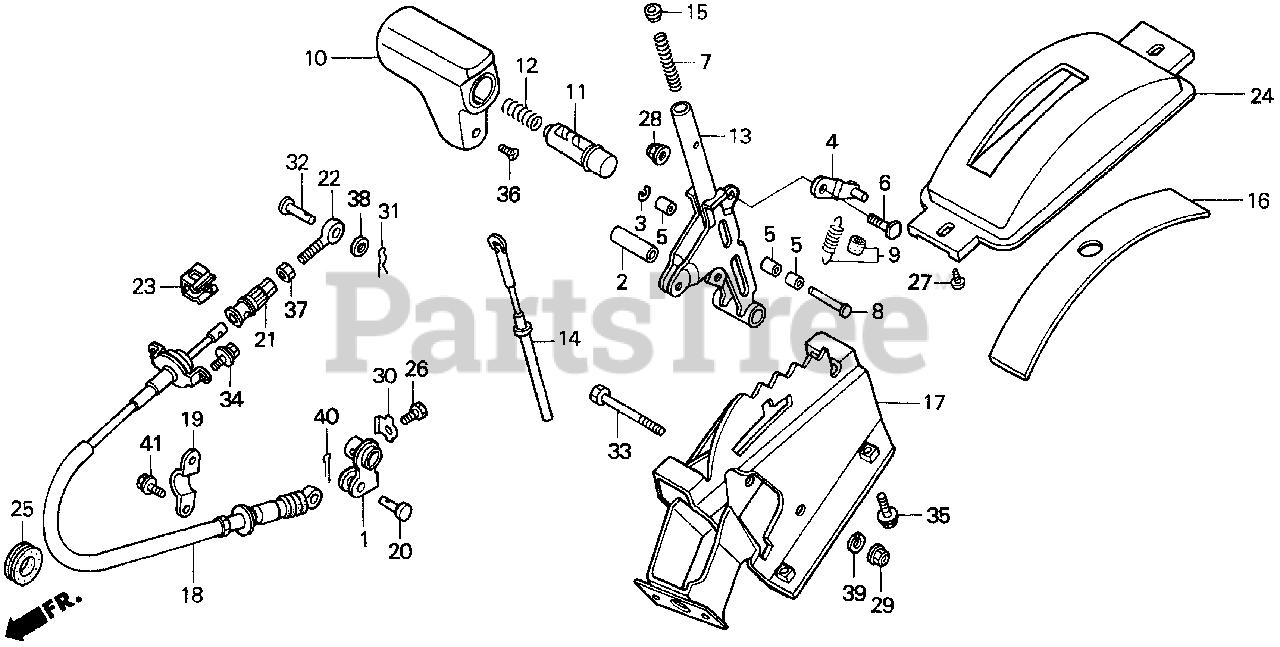

SELECT LEVER Parts Diagram

  • Title
1

Honda 24137-759-610

LEVER, CONTROL

$

$

Not available

2

Honda 28115-HB7-000

SHAFT A, STARTING IDLE

$

$

Not available

3

Honda 30158-700-010

E-CLIP (3MM)

$4.49

$

Usually ships in 3-6 days

0

4

Honda 54110-SB2-980

STOPPER, SELECT LEVER

$

$

Currently unavailable

5

Honda 54113-692-980

COLLAR, LOCK PIN

$

$

Currently unavailable

6

Honda 54115-SB2-980

BOLT, SELECTOR STOPPER

$

$

Currently unavailable

7

Honda 54117-759-610

SPRING, LOCK PIN

$

$

Not available

8

$

$

Not available

9

Honda 54120-759-610

SPRING ASSY., SELECT

$

$

Not available

10

Honda 54131-SF4-981

KNOB, SELECT LEVER

$

$

Not available

11

Honda 54132-759-611

KNOB, PUSH

$

$

Not available

12

Honda 54133-759-611

SPRING, PUSH KNOB

$

$

Not available

13

Honda 54135-759-610

LEVER, SELECT

$

$

Not available

14

Honda 54136-759-610

ROD, LOCK PIN

$64.99

$

Usually ships in 3-6 days

0

15

Honda 54142-SA5-980

BUSH, GUIDE

$7.49

$

Usually ships in 3-6 days

0

16

Honda 54146-759-610

COVER, SELECT LEVER

$

$

Not available

17

Honda 54210-759-610

BRACKET, CONTROL

$

$

Not available

18

Honda 54330-759-611

WIRE, CONTROL

$

$

Not available

19

Honda 54346-759-610

HOLDER, CONTROL WIRE

$10.99

$

Usually ships in 3-6 days

0

20

Honda 54347-679-980

PIN A, CONTROL ROD

$12.99

$

Usually ships in 3-6 days

0

21

Honda 54361-SE0-980

PIPE, CONTROL WIRE ADJUSTING

$

$

Not available

21

Honda 54361-759-610

PIPE, WIRE ADJUSTING

$

$

Not available

22

Honda 54362-759-610

END, ROD (6MM)

$

$

Not available

23

Honda 54363-689-981

PIN, CONTROL WIRE ADJUSTER

$

$

Not available

24

Honda 54380-759-610ZB

CONTROL *NH24* (ESCN) (CERAMIC WHITE)

$

$

Not available

25

Honda 63461-759-000

GROMMET, CABLE

$

$

Not available

26

Honda 90001-PA9-000

BOLT, HEX. (6MM)

$9.49

$

Usually ships in 3-6 days

0

27

Honda 90114-GB6-920

SCREW, RR. COVER

$2.49

$

Usually ships in 3-6 days

0

28

Honda 90114-SA0-000

SEE PART DETAILS - PRI; NUT, SELF-LOCK (6MM)

$4.49

$

In Stock, Qty 20+

0

29

Honda 90308-SA0-981

NUT, SELF-LOCK (6MM)

$8.49

$

Usually ships in 3-6 days

0

30

Honda 90433-639-000

WASHER, LOCK (6MM)

$6.49

$

Usually ships in 3-6 days

0

31

Honda 90705-SD2-931

PIN, SNAP (6MM)

$5.49

$

Usually ships in 3-6 days

0

32

Honda 90754-740-010

PIN, SIDE CLUTCH ARM

$4.99

$

Usually ships in 3-6 days

0

33

Honda 92201-06050-0H

SEE PART DETAILS - PRI; BOLT, HEX. (6X50)

$2.99

$

Usually ships in 3-6 days

0

34

Honda 93402-06016-08

BOLT-WASHER (6X16)

$2.49

$

Usually ships in 3-6 days

0

35

Honda 93404-06012-07

SEE PART DETAILS - PRI; BOLT-WASHER (6X12)

$2.49

$

Usually ships in 3-6 days

0

36

Honda 93700-05008-0G

SCREW, OVAL (5X8)

$1.49

$

Usually ships in 3-6 days

0

37

Honda 94001-06080-0S

NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 6

0

38

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

39

Honda 94111-06800

WASHER, SPRING (6MM)

$1.49

$

Usually ships in 3-6 days

0

40

Honda 94201-16250

PIN, COTTER (1.6X25)

$1.49

$

Usually ships in 3-6 days

0

41

Honda 95701-06014-08

BOLT, FLANGE (6X14)

$2.49

$

In Stock, Qty 9

0
