H6522 A2 (TZAD) - Honda Compact Tractor, Made in Japan (SN: TZAD-1000001 - TZAD-1001869) POSITION CONTROL VALVE Parts Diagram

Compact Tractor, Made in Japan

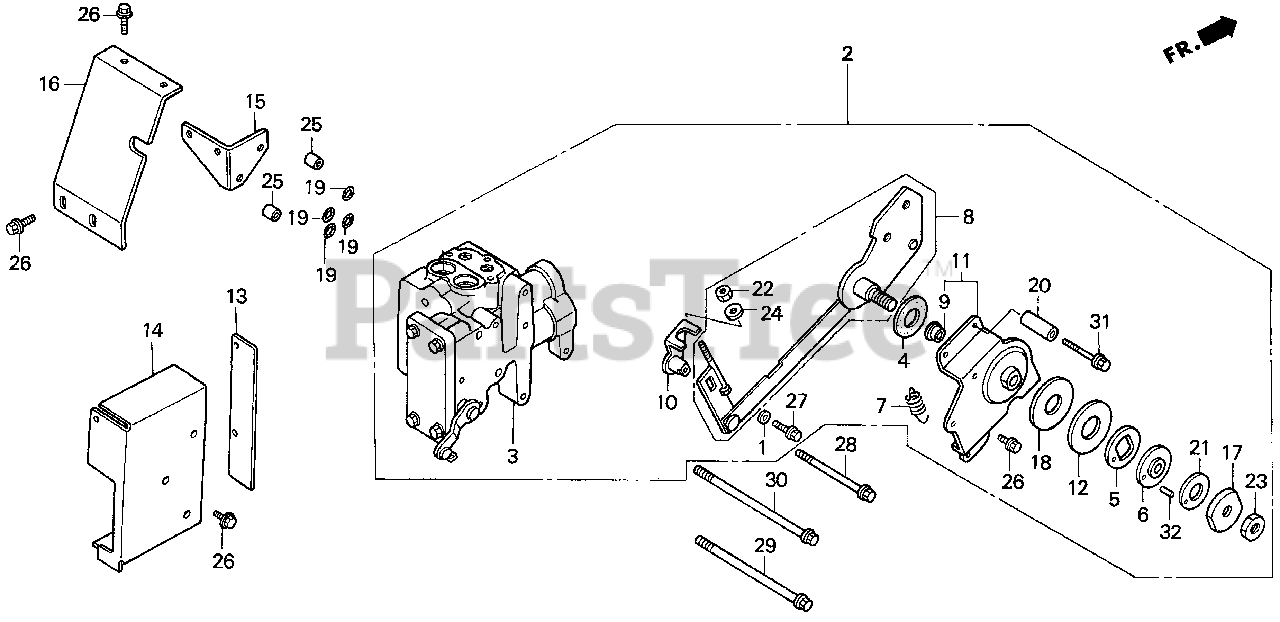

POSITION CONTROL VALVE Parts Diagram

  • Title
1

Honda 38675-671-000

SPACER, HOSE CLAMP (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 56700-764-642

VALVE ASSY., MECHANICAL POSITION CONTROL

$

$

Not available

3

Honda 56705-759-305

VALVE ASSY., POSITION

$

$

Currently unavailable

4

Honda 57231-759-003

WASHER, FRICTION

$

$

Not available

5

Honda 57232-759-000

WASHER A, POSITION CONTROL ARM

$

$

Not available

6

Honda 57233-759-000

WASHER B, POSITION CONTROL ARM

$

$

Not available

7

Honda 57245-759-010

SPRING, POSITION CONTROL RETURN

$

$

Not available

8

Honda 57260-759-030

LINK, POSITION CONTROL

$

$

Not available

9

Honda 57264-759-003

BUSH (14X10)

$7.99

$

Usually ships in 3-6 days

0

10

Honda 57282-759-000

SUPPORT, POSITION CONTROL JOINT

$

$

Not available

11

Honda 57290-759-010

BASE, POSITION CONTROL LINK

$

$

Not available

12

Honda 57353-759-000

SPRING, CONED DISK (22MM)

$

$

Not available

13

Honda 57391-759-000

PLATE A, POSITION CONTROL COVER

$

$

Not available

14

Honda 57392-759-010

PLATE B, POSITION CONTROL COVER

$

$

Not available

15

Honda 57941-759-000

BRACKET, LINK COVER

$

$

Not available

16

Honda 57942-759-010

COVER, LINK

$

$

Not available

17

Honda 90331-759-000

NUT (10MMX6)

$

$

Not available

18

Honda 90458-KE8-000

WASHER, THRUST (22X45X0.8)

$5.99

$

Usually ships in 3-6 days

0

19

Honda 91365-759-003

SEE PART DETAILS - SUP; O-RING (15.8X2.4)

$

$

Currently unavailable

20

Honda 91571-759-000

COLLAR (6.1X13X28)

$

$

Not available

21

Honda 91865-759-003

WASHER, THRUST (16X30X1.5)

$

$

Not available

22

Honda 94002-06080-0S

NUT, HEX. (6MM)

$1.99

$

Usually ships in 3-6 days

0

23

Honda 94002-10280-0S

NUT, HEX. (10MM)

$1.49

$

Usually ships in 3-6 days

0

24

Honda 94103-06800

WASHER, PLAIN (6MM)

$1.49

$

In Stock, Qty 10

0

25

Honda 94301-10160

PIN A, DOWEL (10X16)

$3.49

$

In Stock, only 3 left!

0

26

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0

27

Honda 95701-06020-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X20)

$0.99

$

Usually ships in 3-6 days

0

28

Honda 95701-08080-08

BOLT, FLANGE (8X80)

$3.99

$

Usually ships in 3-6 days

0

29

Honda 95701-08120-08

BOLT, FLANGE (8X120)

$6.49

$

Usually ships in 3-6 days

0

30

Honda 95701-08130-08

BOLT, FLANGE (8X130)

$4.49

$

Usually ships in 3-6 days

0

31

Honda 95801-06040-08

BOLT, FLANGE (6X40)

$2.49

$

Usually ships in 3-6 days

0

32

Honda 96220-20080

ROLLER (2X8)

$4.49

$

Usually ships in 3-6 days

0
