H6522 A2 (TZAD) - Honda Compact Tractor, Made in Japan (SN: TZAD-1000001 - TZAD-1001869) FRONT FINAL REDUCTION CASE Parts Diagram

Compact Tractor, Made in Japan

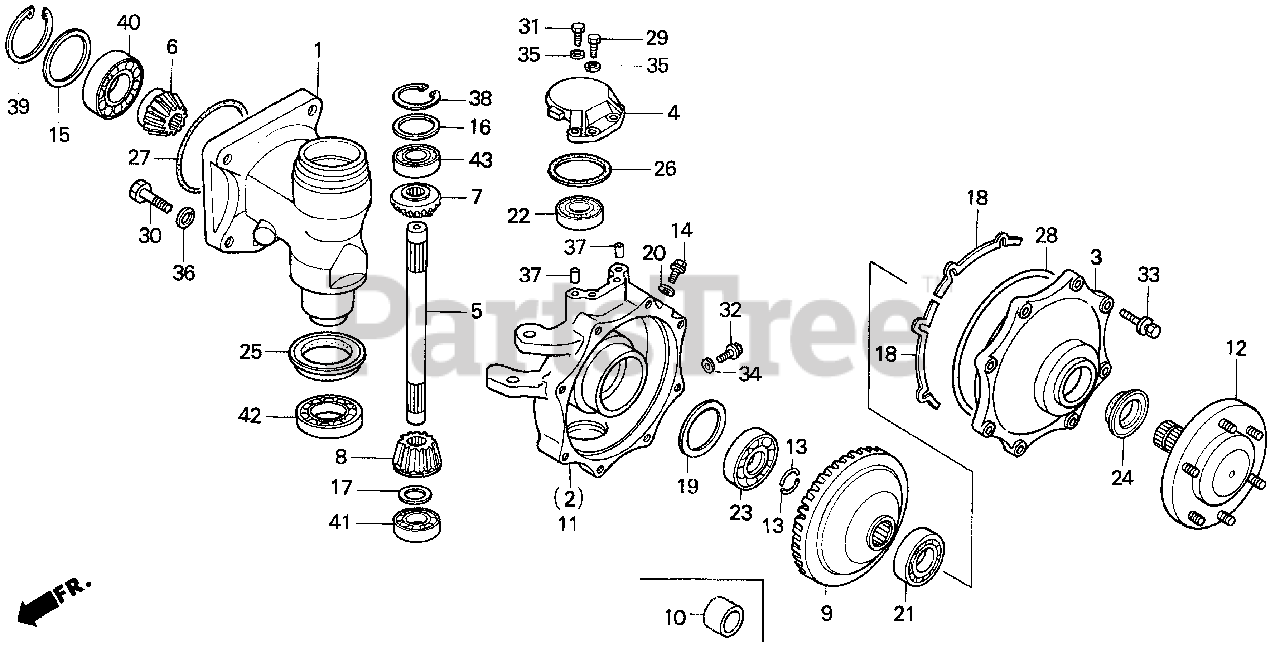

FRONT FINAL REDUCTION CASE Parts Diagram

  • Title
1

Honda 44151-759-000

CASE A, FINAL REDUCTION

$

$

Not available

2

Honda 44161-764-640

CASE B, R. FINAL REDUCTION

$

$

Not available

3

Honda 44171-759-000

COVER, FINAL REDUCTION

$

$

Not available

4

Honda 44181-759-000

PIVOT, FINAL REDUCTION (UPPER)

$

$

Not available

10

Honda 44249-764-630

COLLAR, FR. AXLE SHAFT

$

$

Not available

11

Honda 44261-764-640

CASE B, L. FINAL REDUCTION

$

$

Not available

12

Honda 44310-764-630

SHAFT, FR. AXLE

$

$

Not available

13

Honda 44319-759-000

KEY, AXLE SHAFT LOCK

$

$

Not available

14

Honda 90131-ZE1-000

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$3.49

$

In Stock, only 2 left!

0

20

Honda 90601-ZE1-000

WASHER, DRAIN PLUG (10.2MM)

$1.49

$

In Stock, Qty 20+

0

21

Honda 91005-PL0-008

BEARING (72X35X17) (NTN CORP.)

$85.99

$

Usually ships in 3-6 days

0

22

Honda 91052-759-003

BEARING, RADIAL BALL (60/28)

$31.99

$

Usually ships in 3-6 days

0

22

Honda 91052-764-641

BEARING, RADIAL BALL (60/28)

$

$

Not available

23

Honda 91062-764-631

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (62/32SP)

$

$

Not available

24

Honda 91252-759-004

SEAL, WATER (42X62X13.5)

$

$

Not available

25

Honda 91253-759-004

SEAL, WATER (50X70X20)

$

$

Not available

26

Honda 91260-759-003

OIL SEAL (60X70X5)

$

$

Not available

27

Honda 91392-759-003

O-RING (85.4X3.1)

$

$

Not available

28

Honda 91394-759-003

O-RING (169.4X3.1) (NOK)

$

$

Not available

29

Honda 92101-10025-0G

BOLT, HEX. (10X25)

$2.49

$

Usually ships in 3-6 days

0

30

Honda 92101-12040-0G

BOLT, HEX. (12X40)

$2.99

$

Usually ships in 3-6 days

0

31

Honda 92201-10040-0G

BOLT, HEX. (10X40)

$2.49

$

Usually ships in 3-6 days

0

32

Honda 92800-12000

BOLT, DRAIN PLUG (12MM)

$5.49

$

In Stock, only 2 left!

0

33

Honda 93402-08032-08

BOLT-WASHER (8X32)

$2.49

$

Usually ships in 3-6 days

0

34

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 20+

0

35

Honda 94111-10700

WASHER, SPRING (10MM)

$

$

Currently unavailable

36

Honda 94111-12700

WASHER, SPRING (12MM)

$1.49

$

Usually ships in 3-6 days

0

37

Honda 94301-12160

PIN, KNOCK (12X16)

$3.49

$

Usually ships in 3-6 days

0

38

Honda 94520-52000

CIRCLIP (INNER) (52MM)

$4.49

$

Usually ships in 3-6 days

0

42

Honda 96150-60080-10

BEARING, RADIAL BALL (6008UU)

$42.99

$

Usually ships in 3-6 days

0
