H6522 A2 (TZAD) - Honda Compact Tractor, Made in Japan (SN: TZAD-1000001 - TZAD-1001869) FRAME Parts Diagram

Compact Tractor, Made in Japan

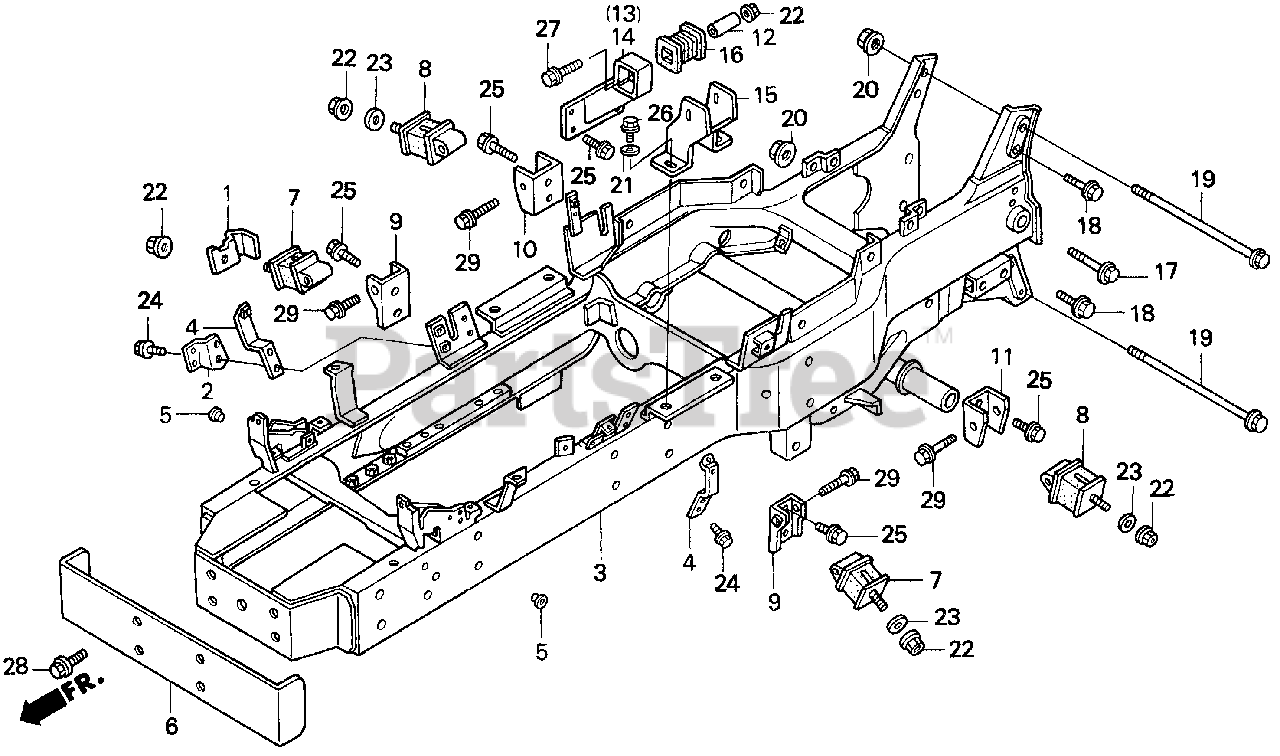

FRAME Parts Diagram

  • Title
1

Honda 32107-759-000

BRACKET F, WIRE HARNESS CLIP

$

$

Not available

2

Honda 32108-759-000

BRACKET, WIRE HARNESS CLIP (D)

$

$

Not available

3

Honda 50100-764-640ZA

FRAME *R165* (JOLLY RED)

$

$

Not available

4

Honda 50155-759-000

BRACKET, SKIRT CENTER

$

$

Not available

5

Honda 50157-759-000

CAP, HOLE (13MM)

$

$

Not available

6

Honda 50196-764-640

PLATE, FR.

$

$

Not available

7

Honda 50811-759-000

RUBBER, FR. ENGINE MOUNTING

$

$

Not available

8

Honda 50812-759-000

RUBBER, RR. ENGINE SETTING

$

$

Not available

9

Honda 50815-759-000

BRACKET, FR. ENGINE MOUNTING

$

$

Not available

10

Honda 50816-759-000

BRACKET, R. RR. ENGINE MOUNTING

$

$

Not available

11

Honda 50817-759-000

BRACKET, L. RR. ENGINE MOUNTING

$

$

Not available

12

Honda 50819-759-000

COLLAR, ROLL STOPPER

$

$

Not available

13

Honda 50826-759-000

ARM, R. MID ROLL STOPPER

$

$

Not available

14

Honda 50827-759-000

ARM, L. MID ROLL STOPPER

$

$

Not available

15

Honda 50828-759-000

BRACKET, MID ROLL STOPPER

$

$

Not available

16

Honda 50829-759-000

RUBBER, ROLL STOPPER INSULATOR

$

$

Not available

17

Honda 90140-759-003

BOLT, SPECIAL (14X63)

$

$

Not available

18

Honda 90142-759-003

BOLT, FLANGE (14X38)

$10.99

$

Usually ships in 3-6 days

0

19

Honda 90161-759-000

BOLT, FLANGE (14X242)

$

$

Not available

20

Honda 90305-759-000

NUT, SPECIAL (14MM)

$

$

Not available

21

Honda 90501-KF9-900

WASHER, BRAKE PEDAL

$3.99

$

Usually ships in 3-6 days

0

22

Honda 94050-10080

NUT, FLANGE (10MM)

$3.99

$

In Stock, Qty 20+

0

23

Honda 94103-10800

WASHER, PLAIN (10MM)

$1.99

$

In Stock, Qty 8

0

24

Honda 95701-06014-08

BOLT, FLANGE (6X14)

$2.49

$

In Stock, Qty 9

0

25

Honda 95701-10020-08

BOLT, FLANGE (10X20)

$2.99

$

In Stock, only 2 left!

0

26

Honda 95701-10028-08

BOLT, FLANGE (10X28)

$2.99

$

Usually ships in 3-6 days

0

27

Honda 95701-10065-08

BOLT, FLANGE (10X65)

$3.99

$

Usually ships in 3-6 days

0

28

Honda 95701-12030-07

BOLT, FLANGE (12X30)

$2.99

$

Usually ships in 3-6 days

0

29

Honda 95801-10050-08

SEE PART DETAILS - PRI; BOLT, FLANGE (10X50)

$3.99

$

Usually ships in 3-6 days

0
