H6522 A2 (TZAD) - Honda Compact Tractor, Made in Japan (SN: TZAD-1000001 - TZAD-1001869) AUXILIARY CHANGE GEAR Parts Diagram

Compact Tractor, Made in Japan

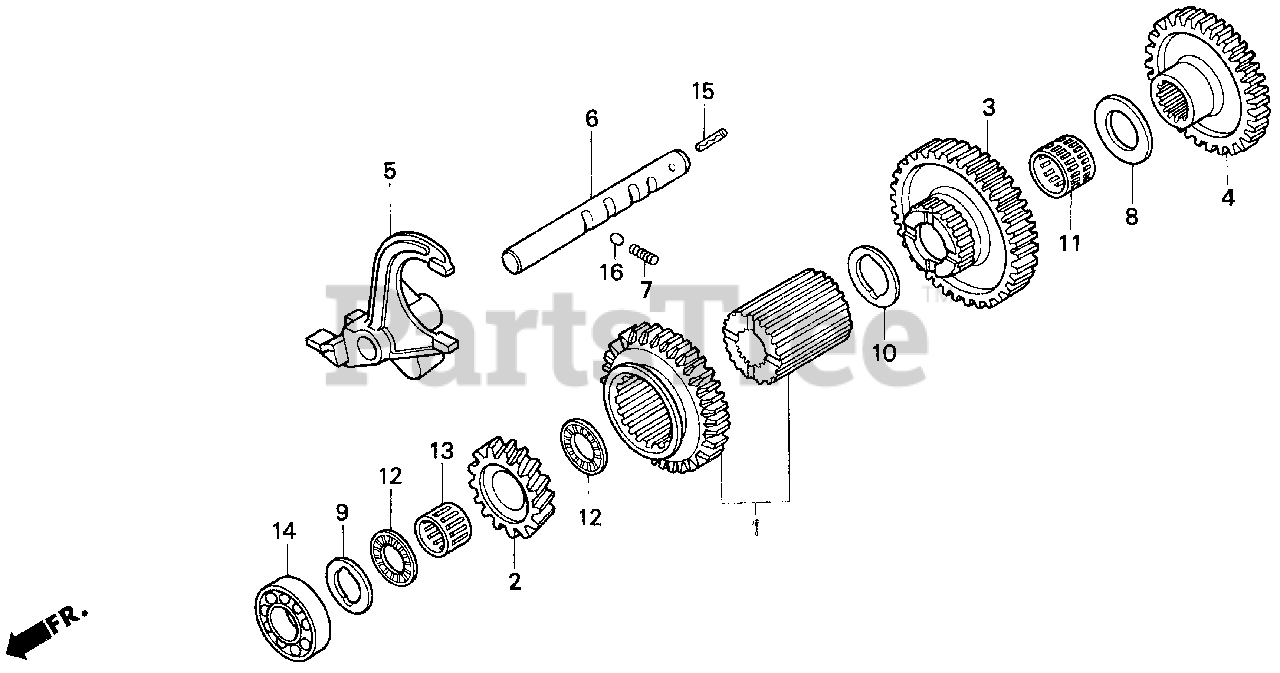

AUXILIARY CHANGE GEAR Parts Diagram

  • Title

1

Honda 23103-764-640

CHANGE SET, AUXILIARY

$

$

Not available

2

Honda 23451-759-000

GEAR, AUXILIARY DRIVEN HIGH (16T)

$

$

Not available

3

Honda 23453-764-640

GEAR, L. AUXILIARY DRIVEN (48T)

$

$

Not available

4

Honda 23454-764-640

GEAR, FR. DRIVE (29T)

$

$

Not available

5

Honda 24211-764-641

FORK, AUXILIARY SHIFT

$

$

Not available

6

Honda 24215-764-640

SHAFT, AUXILIARY SHIFT FORK

$

$

Not available

7

Honda 24452-679-000

SPRING, BALL SETTING

$

$

Not available

8

Honda 90451-VM0-000

WASHER, THRUST (25X40X2)

$7.99

$

Usually ships in 3-6 days

0

9

Honda 90561-759-000

SHIM A, FINAL SHAFT (1.5MM)

$

$

Not available

9

Honda 90562-759-000

SHIM B, FINAL SHAFT (2.0MM)

$

$

Not available

9

Honda 90563-759-000

SHIM C, FINAL SHAFT (2.5MM)

$

$

Not available

10

Honda 90565-759-000

WASHER, THRUST (25X35X2)

$

$

Not available

11

Honda 91011-KS6-003

BEARING, NEEDLE (25X29X22) (TOYO)

$43.99

$

Usually ships in 3-6 days

0

12

Honda 91032-PC9-003

NEEDLE, THRUST (20X35X2.8)

$27.99

$

Usually ships in 3-6 days

0

13

Honda 91064-759-005

BEARING, NEEDLE (20X24X17)

$

$

Not available

14

Honda 91102-GE1-711

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6204) (TOYO)

$25.99

$

Usually ships in 3-6 days

0

15

Honda 94305-30182

PIN, SPRING (3X18)

$1.99

$

Usually ships in 3-6 days

0

16

Honda 96211-10000

BALL, STEEL (#10) (5/16)

$1.99

$

Usually ships in 3-6 days

0
