H6522 A2 (TZAD) - Honda Compact Tractor, Made in Japan (SN: TZAD-1000001 - TZAD-1001869) AIR CLEANER Parts Diagram

Compact Tractor, Made in Japan

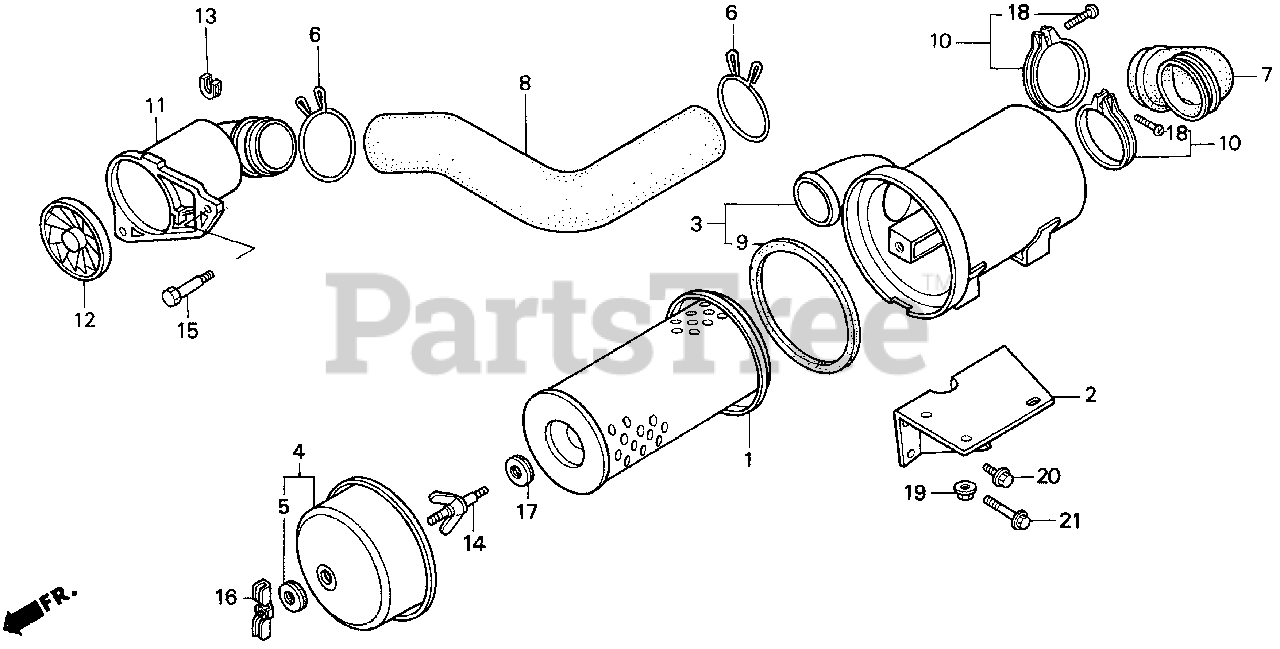

AIR CLEANER Parts Diagram

  • Title

1

Honda 17210-759-013

ELEMENT, AIR CLEANER

$56.99

$

In Stock, only 1 left!

0

2

Honda 17213-759-000

BRACKET, AIR CLEANER

$

$

Not available

3

Honda 17220-759-013

HOUSING, AIR CLEANER

$189.99

$

Usually ships in 3-6 days

0

4

Honda 17230-759-003

COVER, AIR CLEANER

$65.99

$

Usually ships in 3-6 days

0

5

Honda 17232-891-000

GROMMET, AIR CLEANER

$5.99

$

In Stock, Qty 15

0

6

Honda 17243-671-000

CLIP, AIR IN. TUBE

$

$

Not available

7

Honda 17243-759-000

TUBE, AIR CLEANER

$

$

Not available

8

Honda 17246-759-000

TUBE, AIR IN.

$70.99

$

Usually ships in 3-6 days

0

9

Honda 17253-759-003

SEAL, AIR CLEANER

$18.99

$

Usually ships in 3-6 days

0

10

Honda 17256-MM8-000

SEE PART DETAILS - SUP; BAND B, CONNECTING TUBE

$

$

Currently unavailable

11

Honda 17471-759-003

CASE, PRE CLEANER

Note: Use from Frame SN 1000837.

$

$

Not available

11

Honda 17471-759-010

CASE, PRE AIR CLEANER

Note: Use up to Frame SN 1000836.

$

$

Not available

12

Honda 17472-759-000

FAN, PRE AIR CLEANER

$

$

Not available

13

Honda 61317-MG2-000

PLATE, HEADLIGHT STAY SETTING

$

$

Not available

14

Honda 90113-759-003

BOLT, AIR CLEANER

$15.99

$

Usually ships in 3-6 days

0

15

Honda 90159-759-000

BOLT, SPECIAL (6X40)

$

$

Not available

16

Honda 90203-ZA0-800

WINGNUT (6MM)

$4.49

$

In Stock, only 2 left!

0

17

Honda 90502-759-003

WASHER, AIR CLEANER

$7.49

$

Usually ships in 3-6 days

0

18

Honda 93500-04020-0G

SCREW, PAN (4X20)

$1.49

$

Usually ships in 3-6 days

0

19

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 9

0

20

Honda 95701-06016-08

BOLT, FLANGE (6X16)

$1.99

$

In Stock, Qty 5

0

21

Honda 95701-06070-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X70)

$2.99

$

Usually ships in 3-6 days

0
