H6522 A2/A (TZAD) - Honda Compact Tractor, Made in Japan (SN: TZAD-1001870 - TZAD-1099999) HYDRAULIC PUMP Parts Diagram

Compact Tractor, Made in Japan

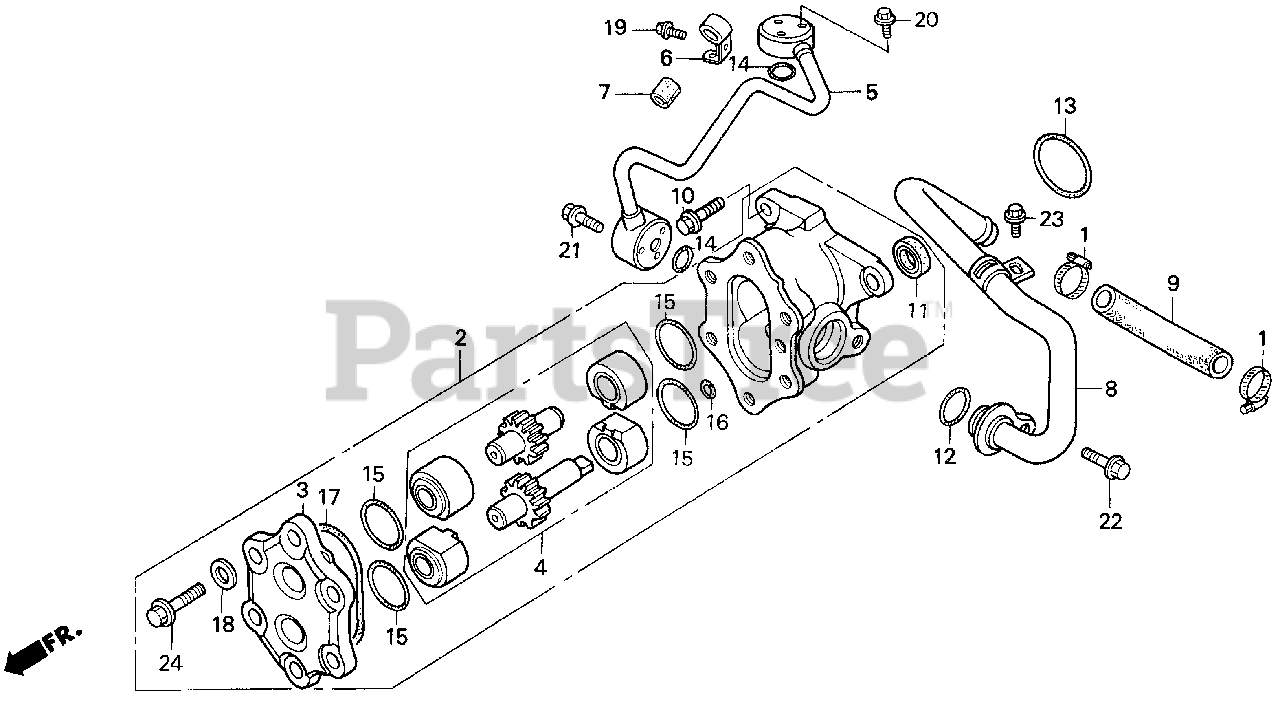

HYDRAULIC PUMP Parts Diagram

  • Title

1

Honda 19505-ML3-770

CLAMP, WATER HOSE

$9.99

$

Usually ships in 3-6 days

0

2

Honda 56100-759-000

PUMP ASSY., HYDRAULIC

$

$

Currently unavailable

3

Honda 56121-759-000

COVER, PUMP

$

$

Not available

4

Honda 56200-759-000

PUMP ASSY., SUB

$

$

Not available

5

Honda 57810-759-000

PIPE, FEED

$

$

Not available

6

Honda 57814-759-010

CLAMP, FEED PIPE

$

$

Not available

7

Honda 57815-759-000

TUBE (12X28)

$3.49

$

Usually ships in 3-6 days

0

8

Honda 57820-759-010

PIPE, INLET

$

$

Not available

9

Honda 57823-759-000

HOSE, IN.

$

$

Not available

10

Honda 90103-759-000

BOLT, FLANGE (8X28)

$

$

Not available

11

Honda 91272-759-003

OIL SEAL (16X30X7)

$6.99

$

Usually ships in 3-6 days

0

12

Honda 91310-KE8-003

O-RING (21.5X2) (ARAI)

$2.99

$

In Stock, only 4 left!

0

13

Honda 91358-752-003

SEE PART DETAILS - PRI; O-RING (37.5X2)

$

$

Not available

14

Honda 91366-759-000

SEE PART DETAILS - SUP; O-RING (10.8X2.4)
(Superseded to 15142-PH3-003)

$3.99

$

In Stock, only 1 left!

0

15

Honda 91377-759-003

O-RING (23.5X2.0)

$2.99

$

Usually ships in 3-6 days

0

16

Honda 91386-759-003

O-RING (4.8X1.9)

$

$

Not available

17

Honda 91390-759-003

O-RING (53.8X3.1)

$

$

Not available

18

Honda 94101-08800

SEE PART DETAILS - SUP; WASHER, PLAIN (8MM)

$2.49

$

In Stock, only 3 left!

0

19

Honda 95701-06010-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

$2.49

$

In Stock, Qty 20+

0

20

Honda 95701-06030-08

BOLT, FLANGE (6X30)

$2.99

$

Usually ships in 3-6 days

0

21

Honda 95701-06032-08

BOLT, FLANGE (6X32)

$2.49

$

In Stock, only 4 left!

0

22

Honda 95701-08016-08

BOLT, FLANGE (8X16)

$2.49

$

In Stock, only 3 left!

0

23

Honda 95701-08018-08

BOLT, FLANGE (8X18)

$2.49

$

In Stock, Qty 6

0

24

Honda 95701-08030-08

BOLT, FLANGE (8X30)

$1.99

$

Usually ships in 3-6 days

0
