H5518 NAC4/B (TZAC) - Honda Multi-Purpose Tractor, Made in Japan (SN: TZAC-3600001 - TZAC-9999999) SEAT Parts Diagram

Multi-Purpose Tractor, Made in Japan

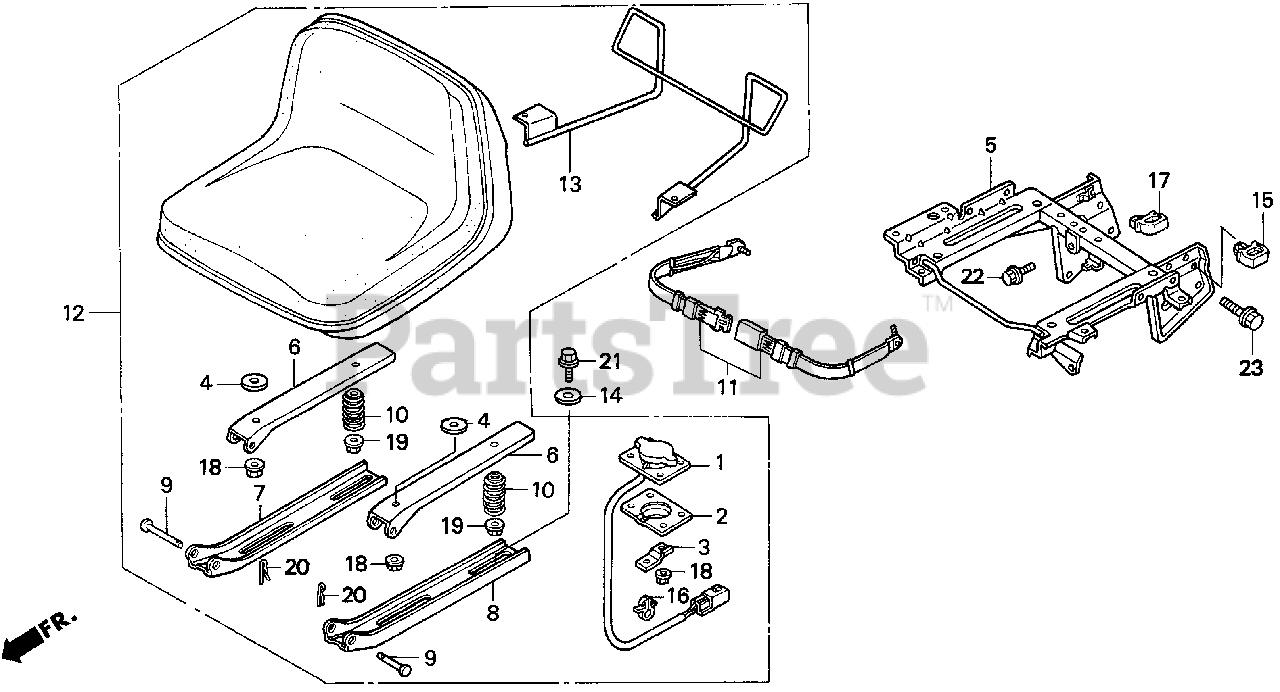

SEAT Parts Diagram

  • Title

1

Honda 35461-769-003

SWITCH, SEAT

$

$

Not available

2

Honda 35802-751-641

COVER, SEAT SWITCH

$

$

Not available

3

Honda 35806-758-000

BASE, CLIP

$5.99

$

Usually ships in 3-6 days

0

4

Honda 52315-GM6-003

WASHER (5MM)

$3.49

$

Usually ships in 3-6 days

0

5

Honda 65160-769-000

FRAME, SEAT SUPPORT

$

$

Not available

6

Honda 77223-750-003

BASE, SEAT (UPPER)

$62.99

$

Usually ships in 3-6 days

0

7

Honda 77224-750-003

BASE, R. SEAT (LOWER)

$62.99

$

Usually ships in 3-6 days

0

8

Honda 77225-750-003

BASE, L. SEAT (LOWER)

$62.99

$

Usually ships in 3-6 days

0

9

Honda 77226-750-003

PIN, SEAT BASE (8MM)

$6.49

$

Usually ships in 3-6 days

0

10

Honda 77228-752-003

SPRING, SEAT

$17.99

$

Usually ships in 3-6 days

0

11

Honda 77610-752-B31

SEAT BELT ASSY.

$

$

Not available

12

Honda 81100-769-000

SEAT ASSY.

$

$

Not available

13

Honda 83517-752-B30

HOLDER, TOOL BOX

$82.99

$

Usually ships in 3-6 days

0

14

Honda 90426-355-000

WASHER, ROTOR SETTING

$5.49

$

Usually ships in 3-6 days

0

15

Honda 90650-SB6-003

CLIP, HARNESS (15MM) (BLUE)

$5.99

$

Usually ships in 3-6 days

0

16

Honda 90654-SA4-003

CLIP, WIRE HARNESS (6MM) (WHITE)

$0.99

$

In Stock, Qty 8

0

17

Honda 90681-763-A01

CLIP, WIRE HARNESS

$10.99

$

Usually ships in 3-6 days

0

18

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 5

0

19

Honda 94071-06080

NUT-WASHER (6MM)

$1.99

$

Usually ships in 3-6 days

0

20

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 13

0

21

Honda 95701-08016-07

BOLT, FLANGE (8X16)

$2.49

$

Usually ships in 3-6 days

0

22

Honda 95701-08020-08

BOLT, FLANGE (8X20)

$2.49

$

Usually ships in 3-6 days

0

23

Honda 95701-10025-08

BOLT, FLANGE (10X25)

$2.99

$

Usually ships in 3-6 days

0
