H5518 NAC4/B (TZAC) - Honda Multi-Purpose Tractor, Made in Japan (SN: TZAC-3600001 - TZAC-9999999) REAR FINAL CASE Parts Diagram

Multi-Purpose Tractor, Made in Japan

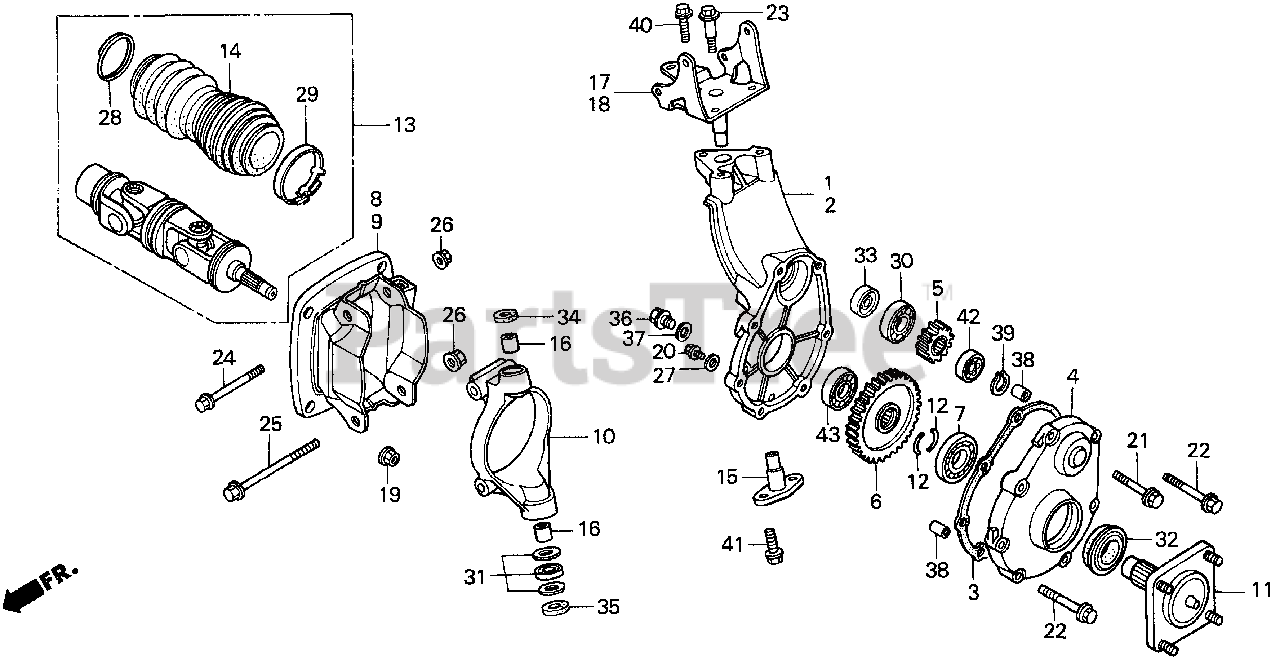

REAR FINAL CASE Parts Diagram

  • Title

1

Honda 25112-752-000

CASE, R. RR. FINAL REDUCTION

$

$

Not available

2

Honda 25113-752-000

CASE, L. RR. FINAL REDUCTION

$

$

Not available

3

Honda 25115-769-750

SEE PART DETAILS - PRI; GASKET, FINAL REDUCTION

$17.99

$

In Stock, only 2 left!

0

4

Honda 25121-752-000

COVER, FINAL REDUCTION

$

$

Not available

5

Honda 25151-752-000

GEAR, FINAL DRIVE (12T)

$

$

Not available

6

Honda 25152-752-000

GEAR, FINAL DRIVEN (35T)

$

$

Not available

7

Honda 25171-752-003

BEARING, RADIAL BALL SPECIAL (6206)

$

$

Not available

8

Honda 42140-752-B30

TUBE, R. RR. AXLE

$

$

Not available

9

Honda 42150-752-B30

TUBE, L. RR. AXLE

$

$

Not available

10

Honda 42155-752-000

HOLDER, FINAL REDUCTION CASE

$

$

Not available

11

Honda 42310-752-000

SHAFT, AXLE

$399.99

$

Usually ships in 3-6 days

0

12

Honda 42312-752-000

KEY, AXLE SHAFT LOCK

$

$

Not available

13

Honda 42350-752-000

JOINT ASSY., RR. DRIVE

$

$

Not available

14

Honda 42357-752-000

BOOT, RR. JOINT

$

$

Not available

15

Honda 51226-752-000

KINGPIN (LOWER)

$122.99

$

Usually ships in 3-6 days

0

16

Honda 51236-752-003

BUSH, KINGPIN

$

$

Not available

17

Honda 53461-752-000

ARM, R. RR. KNUCKLE

$

$

Not available

18

Honda 53466-752-000

ARM, L. RR. KNUCKLE

$

$

Not available

19

Honda 90002-SA7-000

NUT, SELF-LOCK (10MM)
(Superseded to 90212-671-005)

$1.49

$

Usually ships in 3-6 days

0

20

Honda 90024-612-000

BOLT, SEALING (8MM)

$7.49

$

Usually ships in 3-6 days

0

21

Honda 90031-752-000

BOLT, UBS (8X36)

$

$

Not available

22

Honda 90032-752-000

BOLT, KNOCK (8X46)

$

$

Not available

23

Honda 90101-752-000

BOLT, KNOCK (10X32)

$6.49

$

Usually ships in 3-6 days

0

24

Honda 90111-752-000

BOLT, FLANGE (12X105)

$

$

Not available

25

Honda 90112-752-000

BOLT, FLANGE (12X125)

$

$

Not available

26

Honda 90215-SB0-003

NUT, SELF-LOCK (12MM) (SATO RASHI)

$2.99

$

Usually ships in 3-6 days

0

27

Honda 90471-580-000

WASHER (8MM)

$4.49

$

In Stock, only 2 left!

0

28

Honda 90603-752-000

CLIP (50.7)

$4.99

$

In Stock, only 1 left!

0

29

Honda 90604-752-000

CLIP (57)

$12.99

$

In Stock, only 1 left!

0

30

Honda 91002-750-003

BEARING, RADIAL BALL (62/22)

$25.99

$

Usually ships in 3-6 days

0

31

Honda 91011-752-003

BEARING, THRUST (17X30X9)

$

$

Not available

32

Honda 91205-733-702

SEE PART DETAILS - SUP; SEAL, WATER (32X52X11) (NOK)
(Superseded to 91205-733-703)

$22.99

$

In Stock, only 1 left!

0

32

Honda 91205-733-703

SEE PART DETAILS - PRI; SEAL, WATER (32X52X10.5) (NOK)

$22.99

$

In Stock, only 1 left!

0

33

Honda 91216-PC8-003

OIL SEAL (24X42X7) (ARAI)

$

$

Not available

34

Honda 91271-752-003

OIL SEAL (22X35X8)

$

$

Not available

35

Honda 91272-752-003

OIL SEAL (25X38X8)

$

$

Not available

36

Honda 92800-14000

BOLT, DRAIN PLUG (14MM)

$5.99

$

Usually ships in 3-6 days

0

37

Honda 94109-14000

WASHER, DRAIN PLUG (14MM)

$0.99

$

In Stock, Qty 20+

0

38

Honda 94301-10160

PIN A, DOWEL (10X16)

$3.49

$

In Stock, only 3 left!

0

39

Honda 94510-17000

CIRCLIP (OUTER) (17MM)

$1.99

$

Usually ships in 3-6 days

0

40

Honda 95701-10025-08

BOLT, FLANGE (10X25)

$2.99

$

Usually ships in 3-6 days

0

41

Honda 95701-10028-08

BOLT, FLANGE (10X28)

$2.99

$

Usually ships in 3-6 days

0

42

Honda 96100-62030-00

BEARING, RADIAL BALL (6203)

$11.99

$

Usually ships in 3-6 days

0

43

Honda 96100-62050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205)

$25.99

$

In Stock, only 1 left!

0
