H5518 NAC4/B (TZAC) - Honda Multi-Purpose Tractor, Made in Japan (SN: TZAC-3600001 - TZAC-9999999) HYDRAULIC CYLINDER Parts Diagram

Multi-Purpose Tractor, Made in Japan

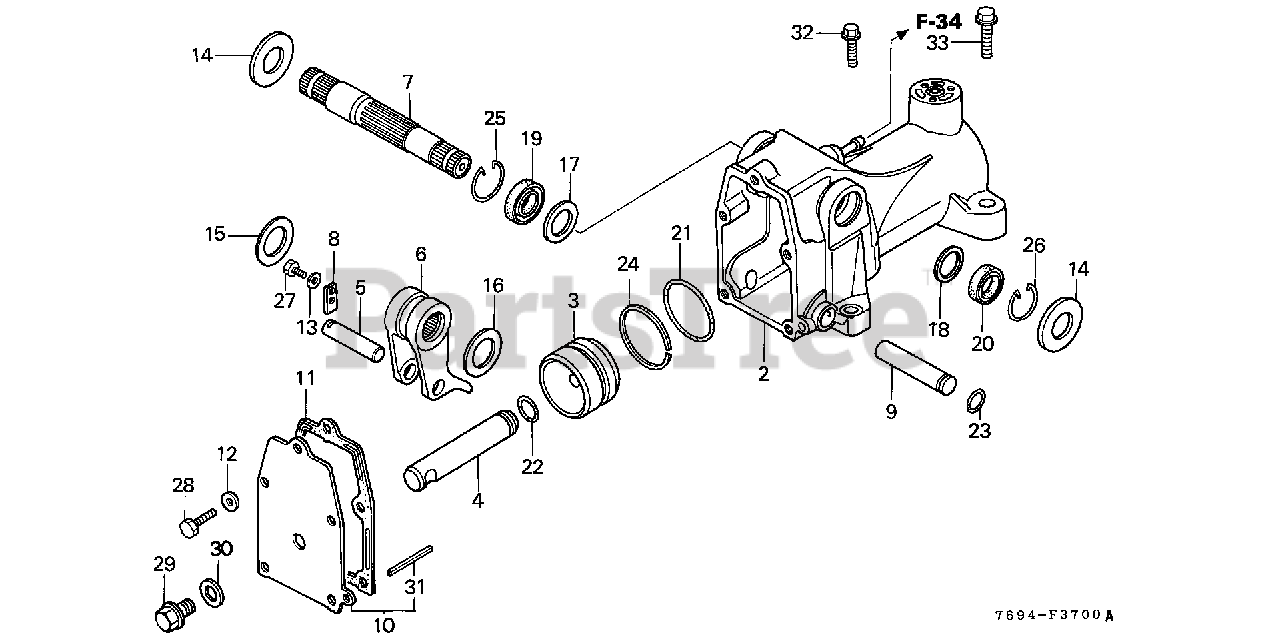

HYDRAULIC CYLINDER Parts Diagram

  • Title

2

Honda 56510-752-010

CYLINDER, HYDRAULIC

$1127.99

$

Usually ships in 3-6 days

0

3

Honda 56521-752-000

PISTON, HYDRAULIC (60MM)

$

$

Not available

4

Honda 56531-752-000

ROD, CONNECTING

$

$

Not available

5

Honda 56532-752-000

PIN, CONNECTING ROD

$

$

Not available

6

Honda 56533-752-020

ARM, HYDRAULIC CYLINDER

$

$

Not available

7

Honda 56537-752-000

SHAFT, HYDRAULIC CYLINDER

$

$

Not available

8

Honda 56538-752-010

PLATE, CONNECTING ROD PIN

$

$

Not available

9

Honda 56541-752-000

SHAFT, STOPPER

$

$

Not available

10

Honda 56546-752-000

COVER, CYLINDER

$

$

Not available

11

Honda 56547-769-750

GASKET, HYDRAULIC CYLINDER COVER

$

$

Not available

12

Honda 90405-463-000

WASHER (8MM)

$4.99

$

Usually ships in 3-6 days

0

13

Honda 90411-744-000

WASHER, CONICAL SPRING (6MM)

$5.99

$

Usually ships in 3-6 days

0

14

Honda 90445-752-000

WASHER, THRUST (25.5X50X5)

$

$

Not available

15

Honda 90505-752-000

WASHER, PLAIN (INNER) (28.5MM)

$11.99

$

Usually ships in 3-6 days

0

16

Honda 90506-752-000

WASHER, PLAIN (INNER) (25.5MM)

$11.99

$

Usually ships in 3-6 days

0

17

Honda 90507-752-000

WASHER, PLAIN (OUTER) (30.5MM)

$10.99

$

In Stock, only 1 left!

0

18

Honda 90508-752-000

WASHER, PLAIN (OUTER) (25.5MM)

$10.99

$

In Stock, only 1 left!

0

19

Honda 91251-752-000

OIL SEAL (30X44X8)

$8.99

$

In Stock, only 2 left!

0

20

Honda 91252-752-000

OIL SEAL (25X38X9)

$9.49

$

In Stock, only 2 left!

0

21

Honda 91351-752-003

O-RING, HYDRAULIC CYLINDER

$6.49

$

Usually ships in 3-6 days

0

22

Honda 91361-752-000

O-RING (17X3.5)

$4.99

$

Usually ships in 3-6 days

0

23

Honda 91362-752-003

SEE PART DETAILS - SUP; O-RING (13.8X2.4)

$

$

Currently unavailable

24

Honda 91391-752-003

RING, BACK-UP

$

$

Not available

25

Honda 91410-752-000

RING, STOPPER (49)

$9.49

$

In Stock, only 1 left!

0

26

Honda 91411-752-000

RING, STOPPER (43)

$9.49

$

In Stock, only 1 left!

0

27

Honda 92101-06012-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X12)

$1.99

$

Usually ships in 3-6 days

0

28

Honda 92101-08022-0H

BOLT, HEX. (8X22)

$2.49

$

Usually ships in 3-6 days

0

29

Honda 92800-14000

BOLT, DRAIN PLUG (14MM)

$5.99

$

Usually ships in 3-6 days

0

30

Honda 94109-14000

WASHER, DRAIN PLUG (14MM)

$0.99

$

In Stock, Qty 20+

0

31

Honda 94305-60402

PIN, SPRING (6X40)

$2.99

$

In Stock, only 2 left!

0

32

Honda 95701-10055-08

BOLT, FLANGE (10X55)

$3.99

$

In Stock, only 2 left!

0

33

Honda 90046-PD2-951

BOLT, FLANGE (12X58)

$

$

Currently unavailable

33

Honda 95701-12050-08

BOLT, FLANGE (12X50)

$4.49

$

Usually ships in 3-6 days
