H5518 NAC4/B (TZAC) - Honda Multi-Purpose Tractor, Made in Japan (SN: TZAC-3600001 - TZAC-9999999) FRAME Parts Diagram

Multi-Purpose Tractor, Made in Japan

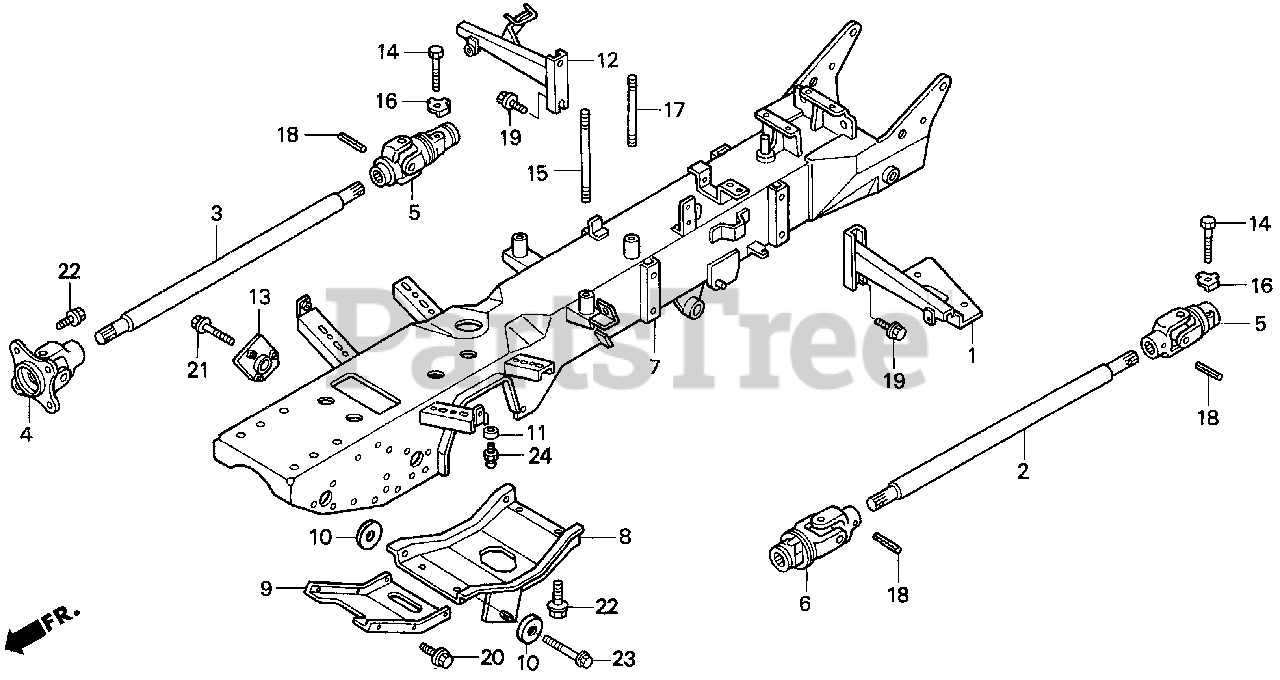

FRAME Parts Diagram

  • Title
1

Honda 17544-769-000

BRACKET A, FUEL TANK

$

$

Not available

2

Honda 40220-752-B30

SHAFT, PROPELLER (B)

$

$

Not available

3

Honda 40410-769-000

SHAFT A, PROPELLER

$202.99

$

Usually ships in 3-6 days

0

4

Honda 42330-769-000

JOINT, UNIVERSAL

$

$

Not available

5

Honda 42360-752-010

JOINT E, UNIVERSAL

$

$

Not available

6

Honda 42370-752-010

JOINT F, UNIVERSAL

$

$

Not available

$

$

Not available

8

Honda 50221-769-000

COVER A, FRAME (LOWER)

$

$

Not available

9

Honda 50222-752-630

COVER B, FRAME (LOWER)

$

$

Not available

10

Honda 50362-KT2-000

COLLAR, FR. ENGINE HANGER (A)

$8.49

$

Usually ships in 3-6 days

0

11

Honda 50618-KE8-000

COLLAR (6.5X11X3)

$3.99

$

Usually ships in 3-6 days

0

12

Honda 56735-769-000

BRACKET, OIL TANK

$

$

Not available

13

Honda 76323-752-J00

PIVOT, LIFT LINK

$

$

Not available

14

Honda 90102-752-000

BOLT, SPECIAL (8MM)

$4.99

$

In Stock, only 1 left!

0

15

Honda 90103-769-000

BOLT, STUD (10X128)

$14.99

$

Usually ships in 3-6 days

0

16

Honda 90502-752-000

WASHER, LOCK (8MM)

$2.99

$

Usually ships in 3-6 days

0

17

Honda 92900-10090-1B

BOLT, STUD (10X90)

$4.49

$

Usually ships in 3-6 days

0

18

Honda 94305-60323

PIN, SPRING (6X32)

$2.99

$

In Stock, only 4 left!

0

19

Honda 95701-08014-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X14)

$2.49

$

Usually ships in 3-6 days

0

20

Honda 95701-08016-08

BOLT, FLANGE (8X16)

$2.49

$

In Stock, only 3 left!

0

21

Honda 95701-08020-08

BOLT, FLANGE (8X20)

$2.49

$

Usually ships in 3-6 days

0

22

Honda 95701-10020-08

BOLT, FLANGE (10X20)

$2.99

$

In Stock, only 2 left!

0

23

Honda 95701-10028-08

BOLT, FLANGE (10X28)

$2.99

$

Usually ships in 3-6 days

0

24

Honda 96201-10000

FITTING, GREASE (A.76)

$3.49

$

Usually ships in 3-6 days

0
