H5518 NAC4/B (TZAC) - Honda Multi-Purpose Tractor, Made in Japan (SN: TZAC-3600001 - TZAC-9999999) CONTROL Parts Diagram

Multi-Purpose Tractor, Made in Japan

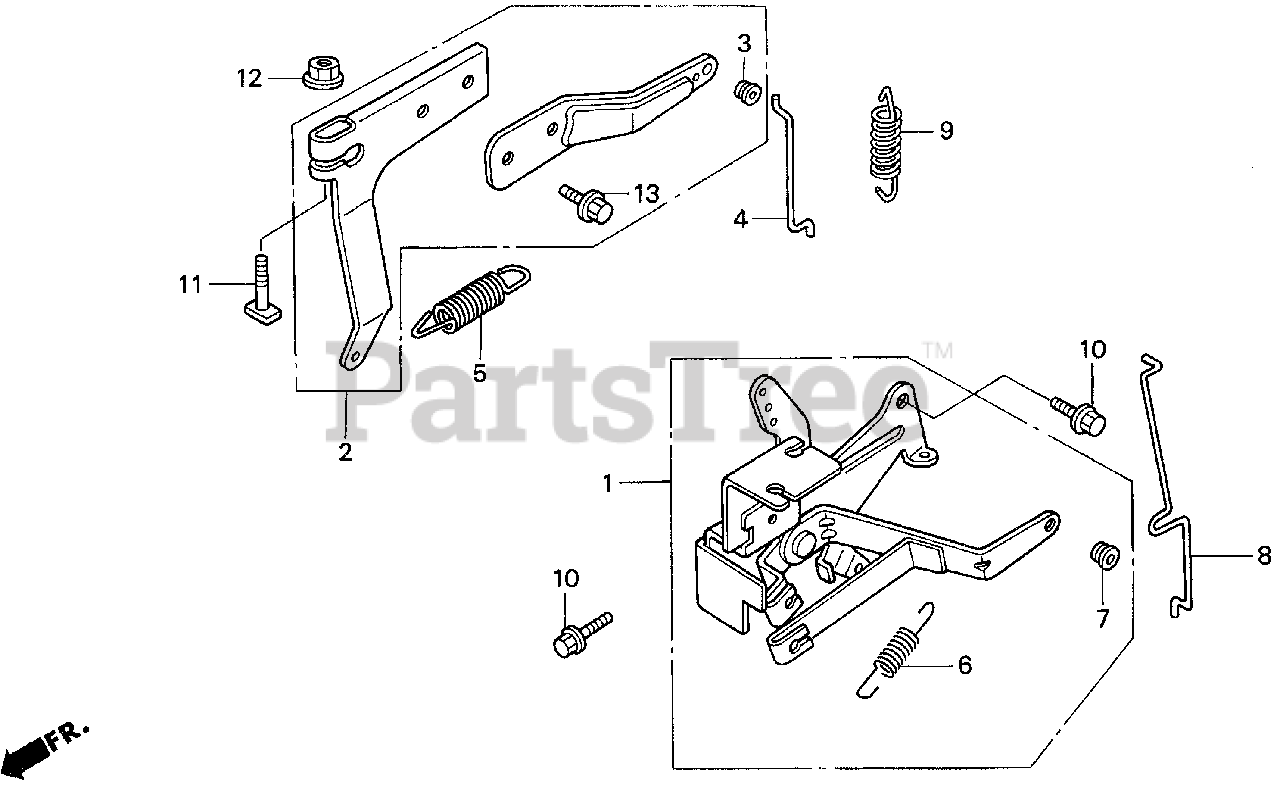

CONTROL Parts Diagram

  • Title

1

Honda 16501-ZG8-L10

CONTROL

$

$

Not available

2

Honda 16550-ZG8-000

ARM, GOVERNOR

$54.99

$

Usually ships in 3-6 days

0

3

Honda 16552-896-650

COLLAR, LEVER

$3.49

$

Usually ships in 3-6 days

0

4

Honda 16555-ZG8-000

ROD, GOVERNOR

$4.99

$

Usually ships in 3-6 days

0

5

Honda 16561-ZG8-L10

SPRING, GOVERNOR

$5.99

$

Usually ships in 3-6 days

0

6

Honda 16575-ZA0-700

SPRING, CONTROL LEVER RETURN

$4.49

$

Usually ships in 3-6 days

0

7

Honda 16576-ZA0-700

COLLAR, LEVER

$6.49

$

Usually ships in 3-6 days

0

8

Honda 16674-ZG8-020

ROD, CHOKE

$5.99

$

Usually ships in 3-6 days

0

9

Honda 17842-ZG8-020

SPRING, THROTTLE RETURN

$

$

Not available

10

Honda 90014-952-000

BOLT, FLANGE (6X14)

$3.49

$

In Stock, only 3 left!

0

11

Honda 90015-ZE3-790

BOLT, GOVERNOR ARM

$2.99

$

Usually ships in 3-6 days

0

12

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

13

Honda 95701-06008-00

BOLT, FLANGE (6X8)

$4.49

$

In Stock, Qty 20+

0
