H5518 NAC4/B (TZAC) - Honda Multi-Purpose Tractor, Made in Japan (SN: TZAC-3600001 - TZAC-9999999) BATTERY Parts Diagram

Multi-Purpose Tractor, Made in Japan

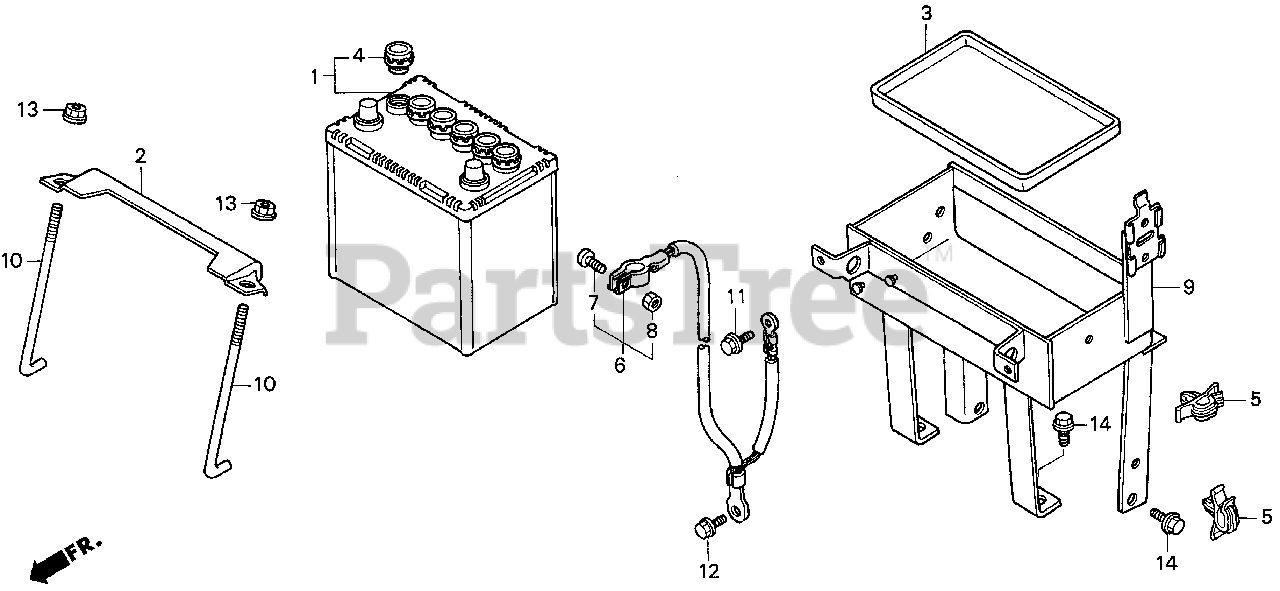

BATTERY Parts Diagram

  • Title

1

Honda 31500-750-013

SEE PART DETAILS - SUP; BATTERY ASSY. (32A19RT-S) (YUASA)
(Superseded to 31500-750-023)

$145.99

$

Usually ships in 3-6 days

0

2

Honda 31512-ZA0-000

PLATE, BATTERY SET

$23.99

$

In Stock, only 1 left!

0

3

Honda 31521-SD5-010

SEE PART DETAILS - PRI; BOX, BATTERY

$32.99

$

Usually ships in 3-6 days

0

4

Honda 31542-ZA0-007

PLUG, VENT

$6.49

$

Usually ships in 3-6 days

0

5

Honda 32171-GJ1-003

CLIP, WIRE HARNESS

$5.49

$

Usually ships in 3-6 days

0

6

Honda 32600-769-000

CABLE ASSY., GROUND

$

$

Not available

7

Honda 32601-SK7-900

SEE PART DETAILS - PRI; BOLT, BATTERY TERMINAL

$12.99

$

Usually ships in 3-6 days

0

8

Honda 32602-SK7-900

NUT, BATTERY TERMINAL

$7.49

$

Usually ships in 3-6 days

0

9

Honda 53214-769-000

HOLDER, BATTERY

$

$

Not available

10

Honda 90001-728-760

BOLT, BATTERY SETTING

$5.49

$

In Stock, only 2 left!

0

11

Honda 90014-952-000

BOLT, FLANGE (6X14)

$2.99

$

In Stock, only 4 left!

0

12

Honda 90149-SE0-003

BOLT, GROUND (6X16) (SN)

$11.99

$

Usually ships in 3-6 days

0

13

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0

14

Honda 95701-10022-08

BOLT, FLANGE (10X22)

$2.99

$

Usually ships in 3-6 days

0
