H5518 NAC2/B (TZAC) - Honda Multi-Purpose Tractor, Made in Japan (SN: TZAC-3600001 - TZAC-9999999) HEADLIGHT Parts Diagram

Multi-Purpose Tractor, Made in Japan

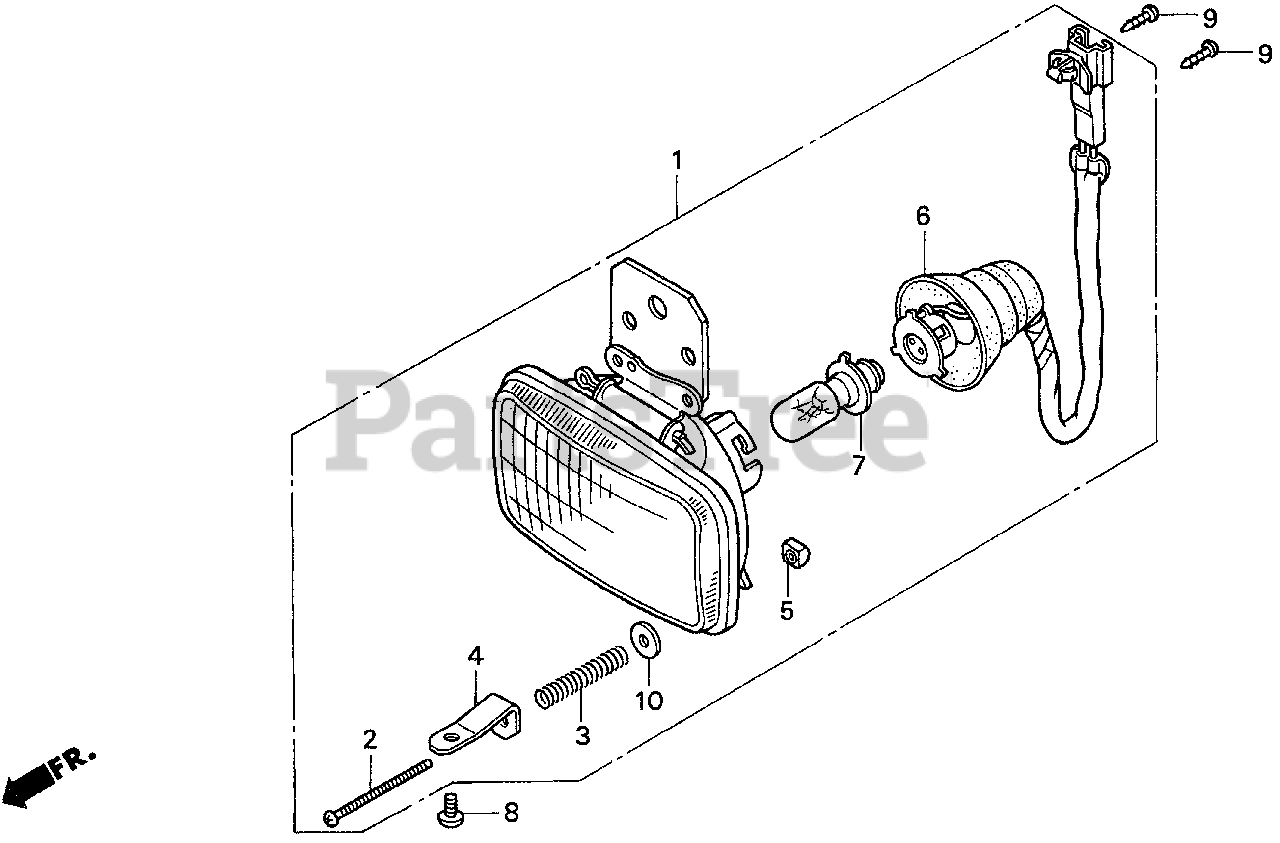

HEADLIGHT Parts Diagram

  • Title
1

Honda 33100-769-003

HEADLIGHT ASSY.

$

$

Not available

2

Honda 33103-769-003

SCREW, BEAM ADJUST

$

$

Not available

3

Honda 33107-438-841

SPRING, HEADLIGHT BEAM ADJUSTING

$

$

Not available

4

Honda 33116-769-003

STAY, HEADLIGHT

$

$

Not available

5

Honda 33117-KA2-003

NUT, BEAM ADJ. (STANLEY)

$2.99

$

Usually ships in 3-6 days

0

6

Honda 33130-769-003

SOCKET ASSY., HEADLIGHT

$

$

Not available

7

Honda 34901-706-000

BULB (12V25/25W) (STANLEY)

$7.49

$

Usually ships in 3-6 days

0

8

Honda 90114-KW7-900

SCREW, VISOR SETTING

$3.99

$

Usually ships in 3-6 days

0

9

Honda 93903-25220

SCREW, TAPPING (5X12)

$1.49

$

Usually ships in 3-6 days

0

10

Honda 94103-03000

WASHER, PLAIN (3MM)

$0.99

$

Usually ships in 3-6 days

0
