H5518 NA4/C (TZAC) - Honda Multi-Purpose Tractor, Made in Japan (SN: TZAC-2500001 - TZAC-3499999) OIL PUMP Parts Diagram

Multi-Purpose Tractor, Made in Japan

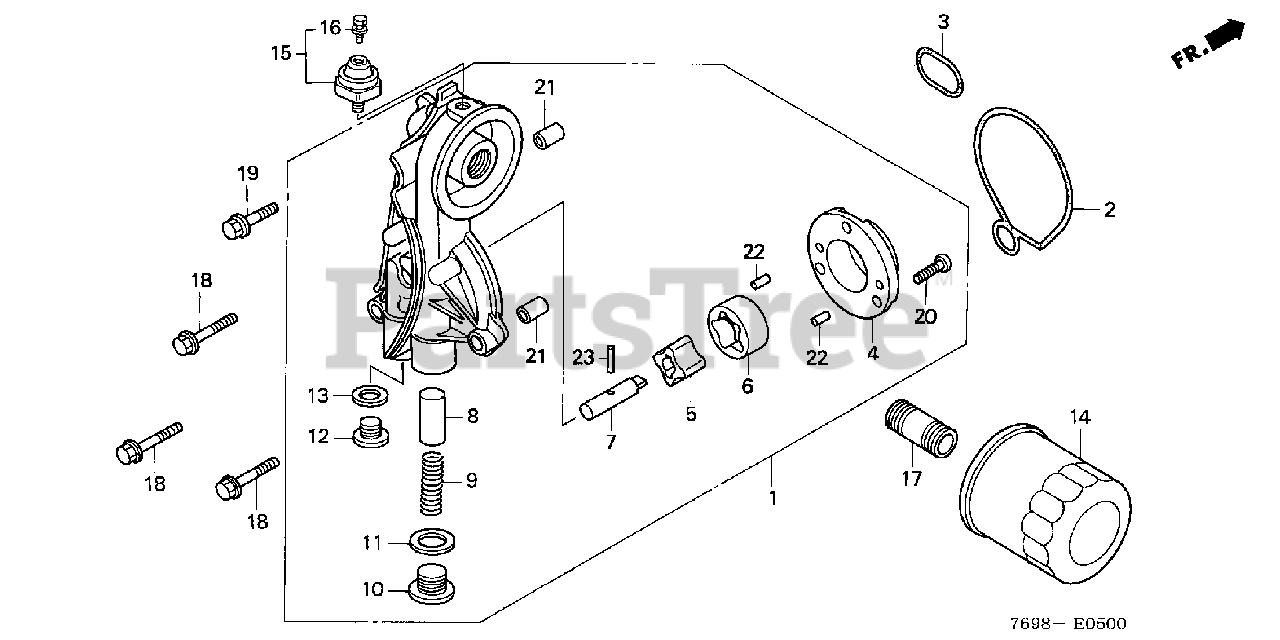

OIL PUMP Parts Diagram

  • Title
1

Honda 15100-ZG8-L10

PUMP ASSY., OIL

$300.99

$

Usually ships in 3-6 days

0

2

Honda 15112-ZG8-003

GASKET, OIL PUMP

$8.99

$

In Stock, only 1 left!

0

3

Honda 15113-ZG8-003

GASKET, OIL PUMP (B)

$3.99

$

In Stock, only 1 left!

0

4

Honda 15121-ZG8-300

COVER, OIL PUMP

$64.99

$

Usually ships in 3-6 days

0

5

Honda 15123-PE9-003

ROTOR, OIL PUMP (INNER)

$45.99

$

Usually ships in 3-6 days

0

6

Honda 15124-PE9-003

ROTOR, OIL PUMP (OUTER)

$45.99

$

Usually ships in 3-6 days

0

7

Honda 15136-ZG8-300

SHAFT, OIL PUMP

$20.99

$

Usually ships in 3-6 days

0

8

Honda 15231-PE0-000

VALVE, RELIEF

$19.99

$

Usually ships in 3-6 days

0

9

Honda 15232-PJ7-010

SPRING, RELIEF VALVE

$7.49

$

Usually ships in 3-6 days

0

10

Honda 15233-PC6-000

BOLT, SEALING (18MM)

$12.99

$

Usually ships in 3-6 days

0

11

Honda 15234-PC6-000

WASHER, SEALING (18MM)

$9.49

$

Usually ships in 3-6 days

0

12

Honda 15301-PE0-300

BOLT, SEALING (14MM)

$12.99

$

Usually ships in 3-6 days

0

13

Honda 15302-PE0-300

WASHER, SEALING (14MM)

$8.99

$

Usually ships in 3-6 days

0

14

Honda 15400-PFB-004

SEE PART DETAILS - SUP; FILTER, OIL
(Superseded to 15400-ZZ3-003)

$22.99

$

In Stock, only 2 left!

0

14

Honda 15400-PFB-014

SEE PART DETAILS - PRI; FILTER, OIL (TOYO ROKI)
(Superseded to 15400-ZZ3-003)

$22.99

$

In Stock, only 2 left!

0

15

Honda 37240-ZG5-004

SWITCH, OIL PRESSURE

$42.99

$

Usually ships in 3-6 days

0

16

Honda 90002-ZG5-004

SCREW-WASHER (4X8)

$9.99

$

Usually ships in 3-6 days

0

17

Honda 90018-PN3-000

HOLDER, OIL FILTER

$9.99

$

In Stock, only 1 left!

0

18

Honda 90031-ZE1-000

BOLT, FLANGE (6X32)

$3.99

$

In Stock, only 2 left!

0

19

Honda 90121-952-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25)

$2.99

$

In Stock, Qty 20+

0

20

Honda 93500-06014-0A

SEE PART DETAILS - PRI; SCREW, PAN (6X14)

$1.49

$

Usually ships in 3-6 days

0

21

Honda 94301-08140

PIN A, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0

22

Honda 94303-05080

PIN, DOWEL (5X8)

$2.99

$

Usually ships in 3-6 days

0

23

Honda 96220-30158

ROLLER (3X15.8)

$0.99

$

Usually ships in 3-6 days

0
