H5518 NA4/C (TZAC) - Honda Multi-Purpose Tractor, Made in Japan (SN: TZAC-2500001 - TZAC-3499999) COOLING FAN PULLEY Parts Diagram

Multi-Purpose Tractor, Made in Japan

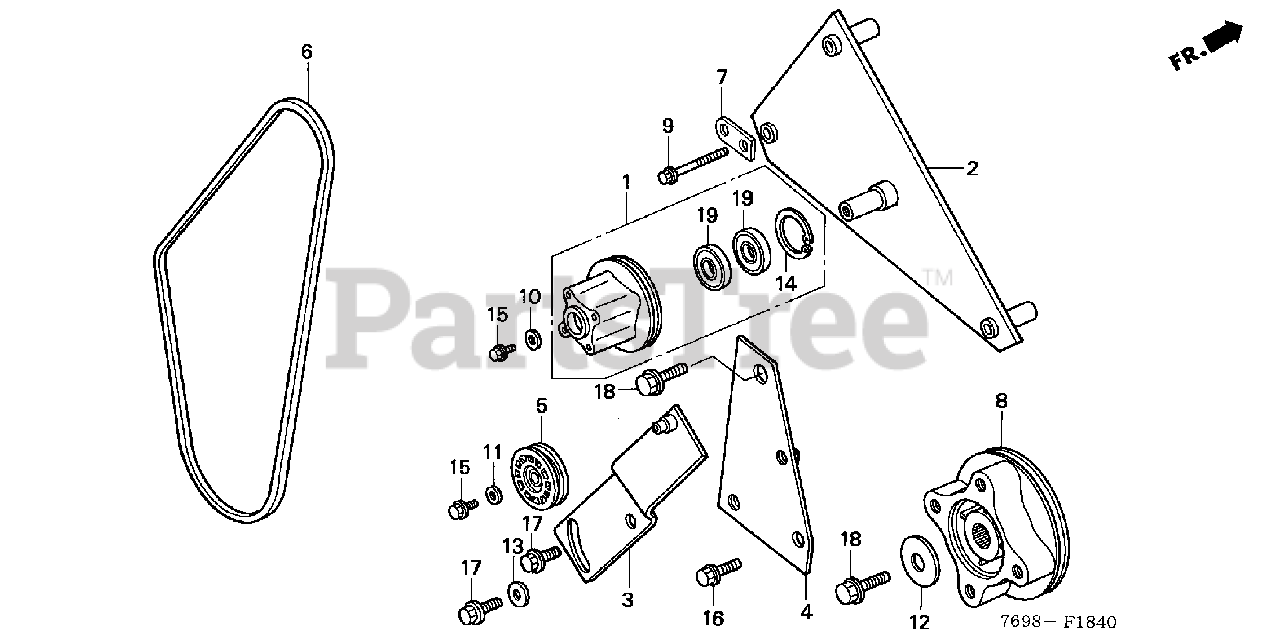

COOLING FAN PULLEY Parts Diagram

  • Title

1

Honda 19030-769-000

PULLEY ASSY., COOLING FAN

$303.99

$

Usually ships in 3-6 days

0

2

Honda 19043-769-010

BRACKET, COOLING FAN

$150.99

$

Usually ships in 3-6 days

0

3

Honda 19091-769-000

ARM, TENSION

$69.99

$

Usually ships in 3-6 days

0

4

Honda 19093-769-000

PLATE, TENSIONER ARM

$36.99

$

Usually ships in 3-6 days

0

5

Honda 19095-769-003

PULLEY, TENSIONER (65MM)

$59.99

$

Usually ships in 3-6 days

0

6

Honda 31603-ZG5-L01

BELT, ALTERNATOR (BANDO)

$28.99

$

Usually ships in 3-6 days

0

7

Honda 32103-ZG8-000

BRACKET, WIRE HARNESS CLIP

$3.99

$

Usually ships in 3-6 days

0

8

Honda 40417-769-010

JOINT, PROPELLER SHAFT

$500.99

$

Usually ships in 3-6 days

0

9

Honda 90014-888-000

BOLT, FLANGE (6X50)

$5.99

$

Usually ships in 3-6 days

0

10

Honda 90417-041-000

WASHER, GEARSHIFT DRUM SIDE

$2.99

$

Usually ships in 3-6 days

0

11

Honda 90453-752-830

WASHER (6MM)

$5.49

$

In Stock, only 1 left!

0

12

Honda 90471-VB4-000

WASHER (10.5X40X4)

$14.99

$

Usually ships in 3-6 days

0

13

Honda 94101-10800

WASHER, PLAIN (10MM)

$2.49

$

In Stock, only 2 left!

0

14

Honda 94521-32000

CIRCLIP (INNER) (32MM)

$

$

Not available

15

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0

16

Honda 95701-08020-08

BOLT, FLANGE (8X20)

$2.49

$

Usually ships in 3-6 days

0

17

Honda 95701-10020-08

BOLT, FLANGE (10X20)

$2.99

$

In Stock, only 2 left!

0

18

Honda 95701-10025-08

BOLT, FLANGE (10X25)

$2.99

$

Usually ships in 3-6 days

0

19

Honda 96150-62010-10

BEARING, RADIAL BALL (6201UU)

$17.99

$

Usually ships in 3-6 days

0
