H5518 AC4/B (TZAC) - Honda Multi-Purpose Tractor, Made in Japan (SN: TZAC-3600001 - TZAC-9999999) MUFFLER Parts Diagram

Multi-Purpose Tractor, Made in Japan

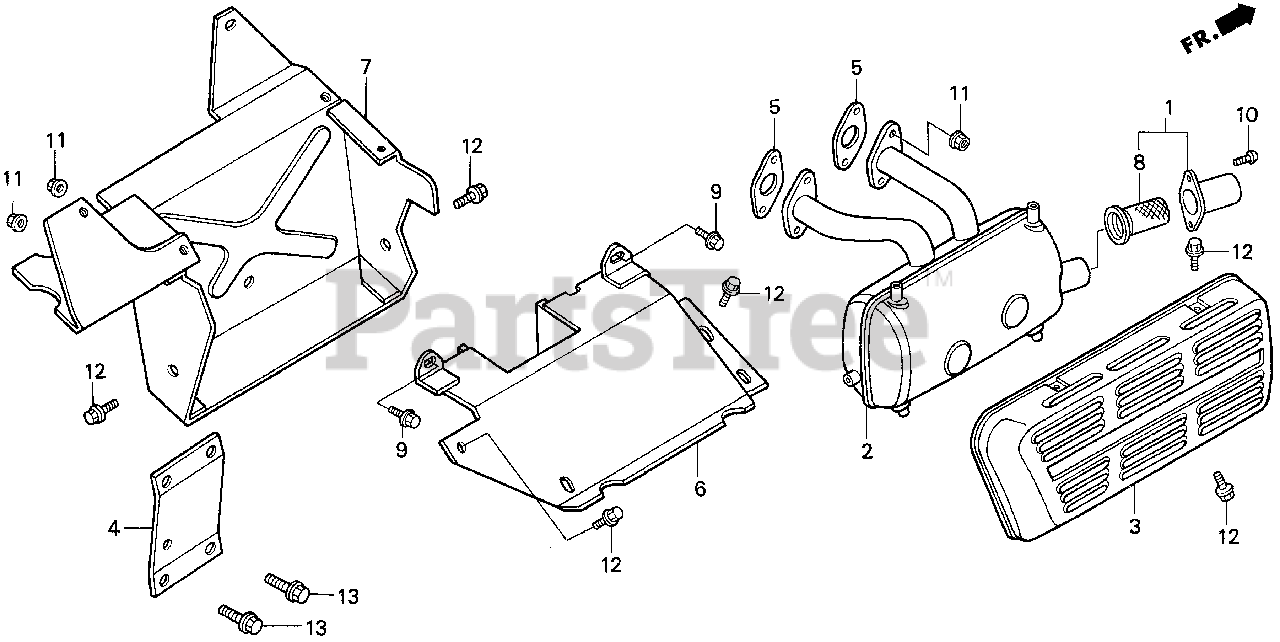

MUFFLER Parts Diagram

  • Title
1

Honda 183A5-ZA0-630

CAP SET, ARRESTER

$

$

Not available

2

Honda 18310-769-000

SEE PART DETAILS - SUP; MUFFLER

$

$

Currently unavailable

2

Honda 18310-769-800

SEE PART DETAILS - SUP; MUFFLER (ARRESTER)

$

$

Currently unavailable

3

Honda 18321-758-010

PROTECTOR, MUFFLER

$

$

Not available

4

Honda 18321-769-000

BRACKET, MUFFLER

$

$

Not available

5

Honda 18333-758-801

GASKET, EX. PIPE

$16.99

$

Usually ships in 3-6 days

0

6

Honda 18343-769-000

PROTECTOR, HEAT (UPPER)

$

$

Not available

7

Honda 18344-769-000

PROTECTOR, HEAT (LOWER)

$

$

Not available

8

Honda 18355-890-630

ARRESTER, SPARK

$

$

Not available

9

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 17

0

10

Honda 93500-05008-0A

SCREW, PAN (5X8)

$1.49

$

In Stock, Qty 8

0

11

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 11

0

12

Honda 95701-06010-07

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

$2.49

$

In Stock, only 1 left!

0

13

Honda 95701-08016-08

BOLT, FLANGE (8X16)

$2.49

$

In Stock, only 3 left!

0
