H5518 AC4/B (TZAC) - Honda Multi-Purpose Tractor, Made in Japan (SN: TZAC-3600001 - TZAC-9999999) CLUTCH Parts Diagram

Multi-Purpose Tractor, Made in Japan

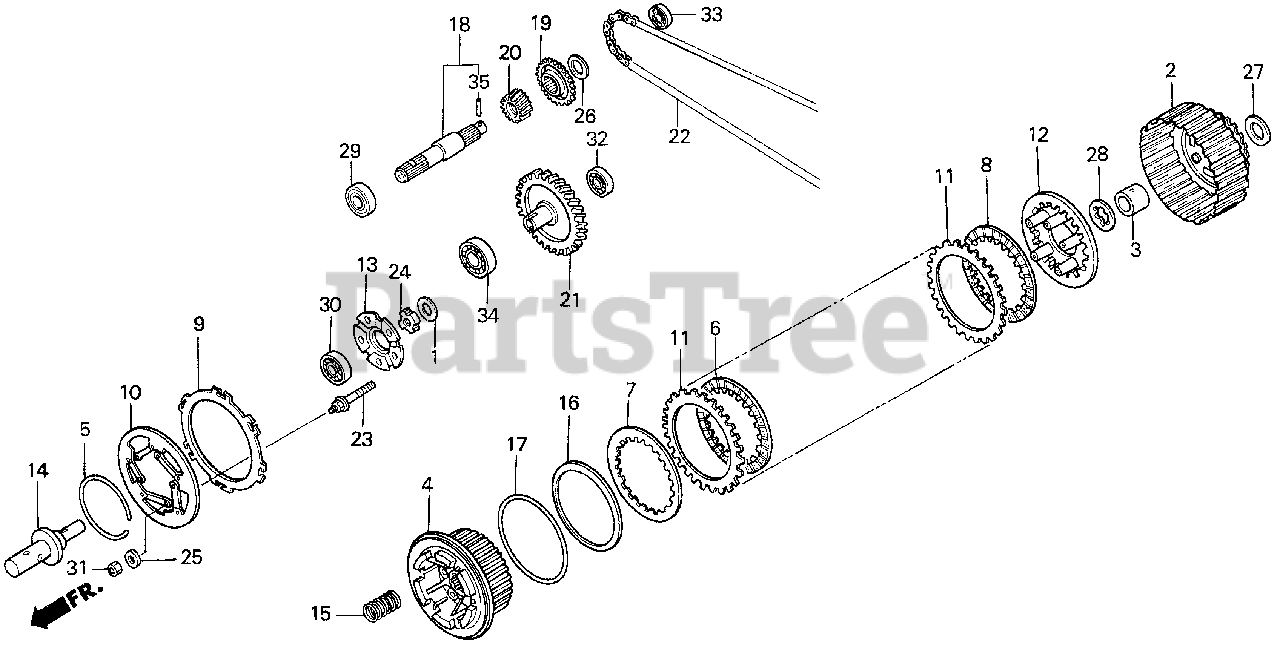

CLUTCH Parts Diagram

  • Title

1

Honda 15451-107-000

WASHER, OIL FILTER ROTOR LOCKING

$5.99

$

Usually ships in 3-6 days

0

2

Honda 22100-769-003

CLUTCH (OUTER)

$509.99

$

Usually ships in 3-6 days

0

3

Honda 22116-752-010

GUIDE, CLUTCH (OUTER)

$

$

Not available

4

Honda 22120-769-003

CENTER, CLUTCH

$

$

Not available

5

Honda 22125-752-003

SET-RING (100.5MM)

$

$

Not available

6

Honda 22200-759-013

DISK A, CLUTCH FRICTION

$34.99

$

In Stock, only 1 left!

0

7

Honda 22201-759-013

DISK A, CLUTCH FRICTION

$

$

Not available

8

Honda 22202-759-013

DISK B, CLUTCH FRICTION

$

$

Not available

9

Honda 22204-752-013

PLATE B, BRAKE

$16.99

$

In Stock, only 1 left!

0

10

Honda 22210-752-003

PLATE C, BRAKE

$41.99

$

In Stock, only 1 left!

0

11

Honda 22321-759-003

PLATE, CLUTCH

$15.99

$

In Stock, only 1 left!

0

12

Honda 22350-769-003

PLATE, CLUTCH PRESSURE

$50.99

$

In Stock, only 1 left!

0

13

Honda 22361-752-003

PLATE, CLUTCH LIFTER

$

$

Not available

14

Honda 22366-752-000

ROD, CLUTCH LIFTER

$

$

Not available

15

Honda 22401-769-003

SPRING, CLUTCH

$7.99

$

In Stock, Qty 5

0

16

Honda 22405-752-003

SPRING, CONED DISK

$

$

Not available

17

Honda 22406-752-003

SEAT, SPRING

$

$

Not available

18

Honda 23110-752-000

SHAFT, INPUT

$148.99

$

Usually ships in 3-6 days

0

19

Honda 23121-769-000

SPROCKET, DRIVE (31T)

$119.99

$

Usually ships in 3-6 days

0

20

Honda 23447-769-000

GEAR, PUMP REDUCTION DRIVE (27T)

$

$

Not available

21

Honda 23458-769-000

GEAR, PUMP REDUCTION DRIVEN (66T)

$

$

Not available

22

Honda 23854-769-003

CHAIN, PRIMARY DRIVE

$

$

Not available

23

Honda 90050-752-003

BOLT, SPECIAL (6X22)

$7.99

$

Usually ships in 3-6 days

0

24

Honda 90231-KCS-651

SEE PART DETAILS - PRI; NUT, LOCK (16MM)

$5.99

$

In Stock, only 1 left!

0

25

Honda 90401-752-003

WASHER (10MM)

$2.99

$

Usually ships in 3-6 days

0

26

Honda 90446-357-000

WASHER, THRUST (17.2MM)

$5.49

$

In Stock, only 1 left!

0

27

Honda 90451-426-000

WASHER, THRUST (20MM)

$6.99

$

Usually ships in 3-6 days

0

28

Honda 90461-107-000

WASHER B, SPLINE (20MM)

$6.49

$

Usually ships in 3-6 days

0

29

Honda 91007-752-003

BEARING, RADIAL BALL U (60/20)

$

$

Not available

30

Honda 91011-KK6-013

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (16003)

$21.99

$

In Stock, only 1 left!

0

31

Honda 94001-05000-0S

NUT, HEX. (5MM)

$2.49

$

Usually ships in 3-6 days

0

32

Honda 96100-62020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6202)

$12.99

$

In Stock, only 3 left!

0

33

Honda 96140-60030-00

BEARING, RADIAL BALL (6003U)

$20.99

$

Usually ships in 3-6 days

0

34

Honda 96140-62040-00

BEARING, RADIAL BALL (6204U)

$36.99

$

Usually ships in 3-6 days

0

35

Honda 96220-03168

ROLLER (3X16.8)

$0.99

$

Usually ships in 3-6 days

0
