H5518 AC2/B (TZAC) - Honda Multi-Purpose Tractor, Made in Japan (SN: TZAC-3600001 - TZAC-9999999) FUEL PUMP Parts Diagram

Multi-Purpose Tractor, Made in Japan

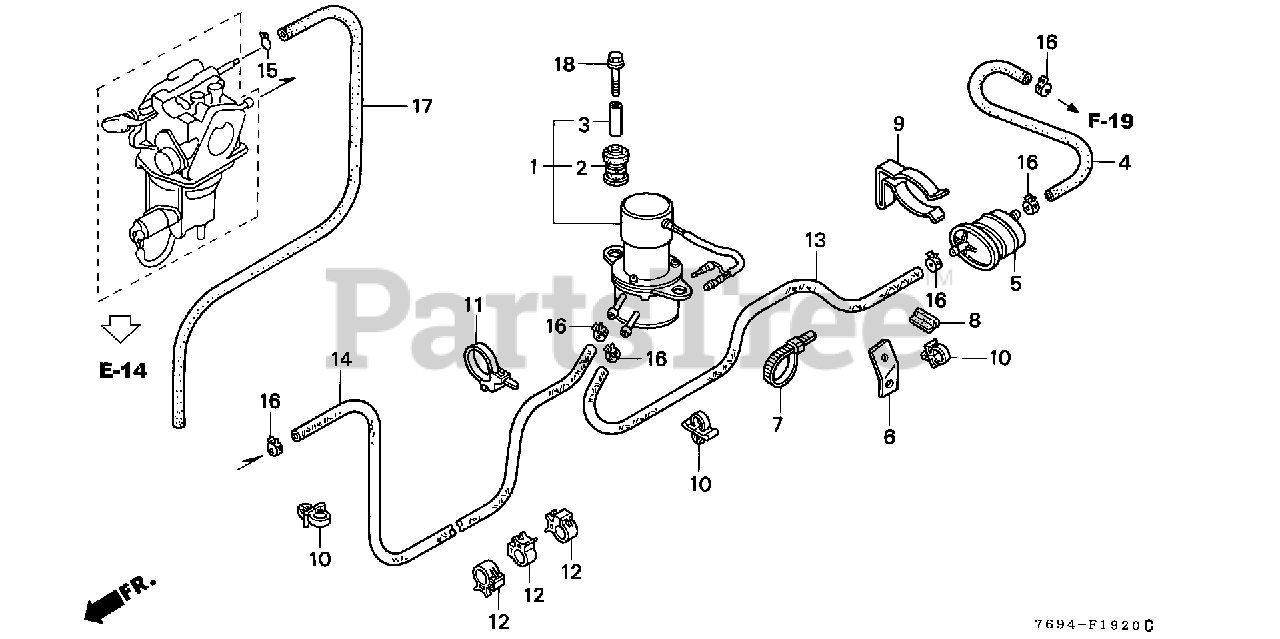

FUEL PUMP Parts Diagram

  • Title

1

Honda 16700-758-003

SEE PART DETAILS - PRI; PUMP ASSY., FUEL

$230.99

$

Usually ships in 3-6 days

0

2

Honda 16711-679-000

RUBBER, FUEL PUMP SETTING

$10.99

$

In Stock, only 1 left!

0

3

Honda 16712-605-310

COLLAR, DISTANCE

$3.99

$

Usually ships in 3-6 days

0

4

Honda 16851-769-000

TUBE, FUEL

$

$

Not available

5

Honda 16900-611-024

SEE PART DETAILS - PRI; FILTER, FUEL

$21.99

$

Usually ships in 3-6 days

0

6

Honda 17574-769-010

PLATE, FUEL HOSE CLAMP

$

$

Not available

7

Honda 32161-404-610

BAND B1, CABLE

$2.99

$

Usually ships in 3-6 days

0

8

Honda 61435-769-000

SEAL A, COLUMN COVER (20MM)

$5.99

$

Usually ships in 3-6 days

0

9

Honda 70615-750-000

SEE PART DETAILS - SUP; CLAMP, FUEL STRAINER

$

$

Not available

10

Honda 90682-735-A01

CLIP, WIRE HARNESS

$2.99

$

Usually ships in 3-6 days

0

11

Honda 90690-GHB-601

CLIP, HARNESS BAND (15)

$2.99

$

Usually ships in 3-6 days

0

12

Honda 90690-GHB-651

CLIP, CABLE (15MM)

$2.99

$

Usually ships in 3-6 days

0

13

Honda 95001-55008-20M

BULK HOSE, FUEL (5.5X8000) (5.5X430)

$

$

Currently unavailable

14

Honda 95001-55008-20M

BULK HOSE, FUEL (5.5X8000) (5.5X860)

$

$

Currently unavailable

15

Honda 95002-02070

CLIP, TUBE (B7)

$2.49

$

In Stock, Qty 5

0

16

Honda 95002-41050-08

CLIP, TUBE (D10.5)

$3.49

$

In Stock, Qty 7

0

17

Honda 95005-35001-20M

BULK HOSE, VACUUM (3.5X1000) (3.5X410)

$14.99

$

Usually ships in 3-6 days

0

18

Honda 95701-06032-08

BOLT, FLANGE (6X32)

$2.49

$

In Stock, only 4 left!

0
