H5518 AC2/B (TZAC) - Honda Multi-Purpose Tractor, Made in Japan (SN: TZAC-3600001 - TZAC-9999999) CYLINDER BLOCK Parts Diagram

Multi-Purpose Tractor, Made in Japan

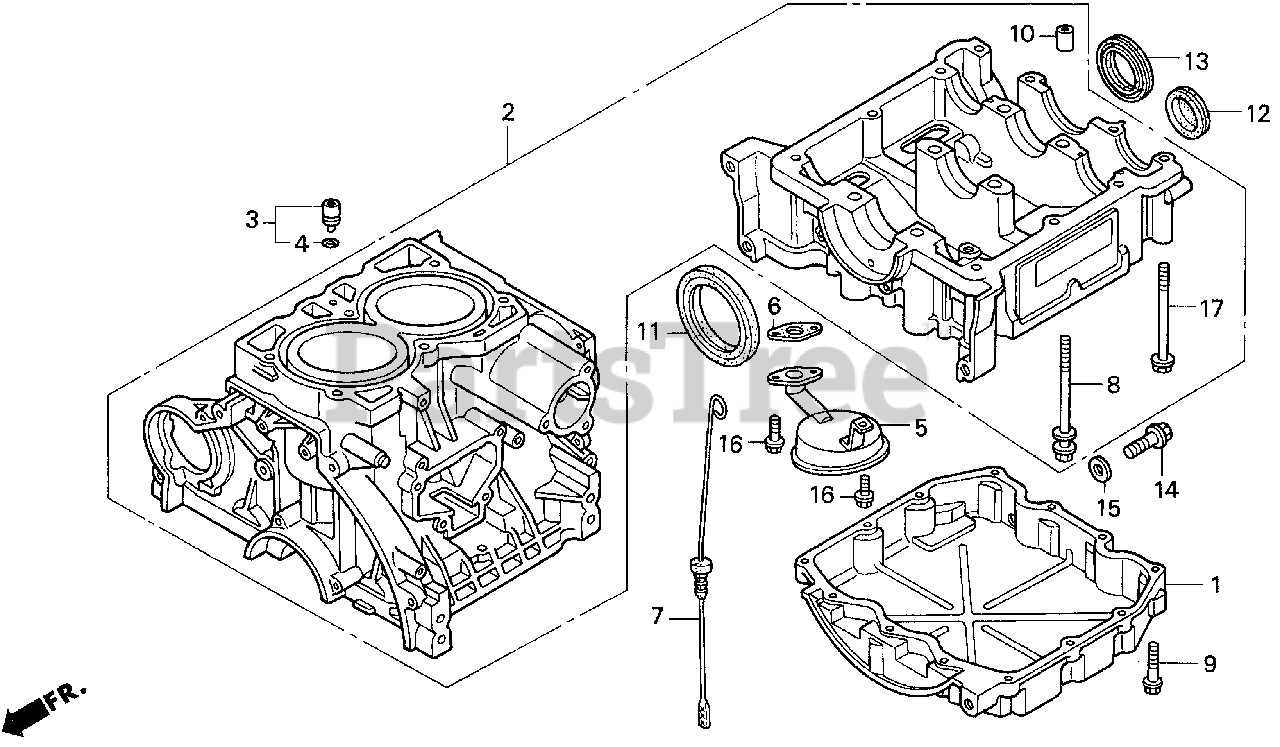

CYLINDER BLOCK Parts Diagram

  • Title

1

Honda 11311-ZG8-L10

PAN, OIL

$

$

Not available

2

Honda 12000-ZG8-405

BLOCK ASSY., CYLINDER

$

$

Currently unavailable

3

Honda 15140-PJ7-010

ORIFICE ASSY., OIL PASSAGE
(Superseded to 15140-ZG8-000)

$11.99

$

Usually ships in 3-6 days

0

4

Honda 15142-PE0-000

SEE PART DETAILS - PRI; O-RING (4.8X1.9)

$3.99

$

Usually ships in 3-6 days

0

5

Honda 15220-ZG8-L10

STRAINER, OIL

$

$

Not available

6

Honda 15221-PZ1-000

GASKET, OIL STRAINER

$6.49

$

Usually ships in 3-6 days

0

7

Honda 15655-ZG8-000

DIPSTICK, OIL

$17.99

$

Usually ships in 3-6 days

0

8

Honda 90007-PJ7-003

BOLT-WASHER (10X105)

$15.99

$

Usually ships in 3-6 days

0

9

Honda 90015-883-000

BOLT, FLANGE (6X28)

$3.99

$

In Stock, Qty 8

0

10

Honda 90715-PC6-000

PIN, DOWEL (13X20)

$7.99

$

Usually ships in 3-6 days

0

11

Honda 91202-ZG8-003

OIL SEAL (65X88X12)

$17.99

$

Usually ships in 3-6 days

0

12

Honda 91204-ZG8-003

PLUG, SEALING (42X7)

$8.99

$

Usually ships in 3-6 days

0

13

Honda 91213-ZG8-003

OIL SEAL (35X50X8)

$10.99

$

Usually ships in 3-6 days

0

14

Honda 92800-12000

BOLT, DRAIN PLUG (12MM)

$5.49

$

In Stock, only 2 left!

0

15

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 20+

0

16

Honda 95701-06018-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X18)

$2.49

$

Usually ships in 3-6 days

0

17

Honda 95701-08085-08

BOLT, FLANGE (8X85)

$3.99

$

Usually ships in 3-6 days

0
