H5518 AC2/A (TZAC) - Honda Multi-Purpose Tractor, Made in Japan (SN: TZAC-3500001 - TZAC-3599999) CLUTCH COVER Parts Diagram

Multi-Purpose Tractor, Made in Japan

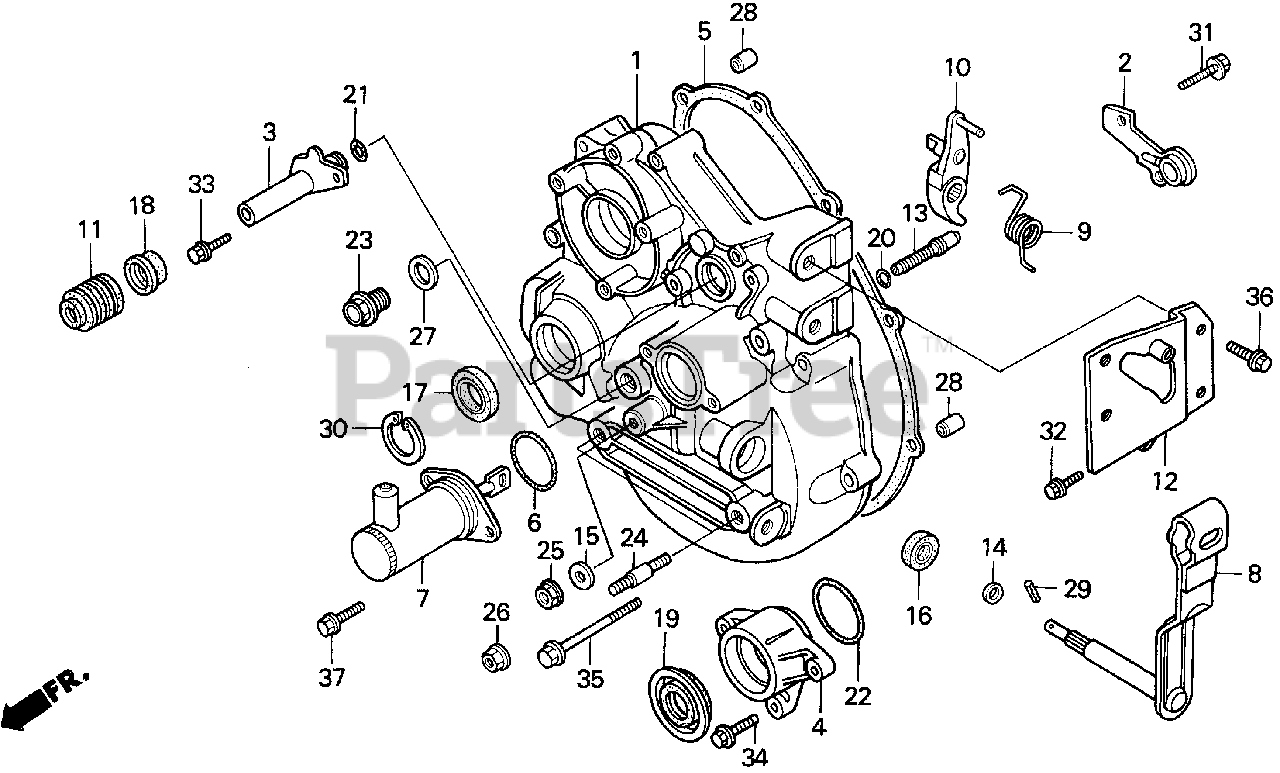

CLUTCH COVER Parts Diagram

  • Title

1

Honda 21120-752-B30

COVER, CLUTCH

$

$

Not available

2

Honda 21122-752-000

PLATE, OIL GUIDE

$23.99

$

Usually ships in 3-6 days

0

3

Honda 21125-752-B30

HOLDER, SHIFT PIECE SHAFT

$

$

Not available

5

Honda 21123-769-750

GASKET, CLUTCH COVER

$

$

Not available

6

Honda 21592-752-003

SEE PART DETAILS - SUP; O-RING (37.5X2)

$

$

Not available

7

Honda 22710-752-003

DAMPER ASSY., CLUTCH

$207.99

$

Usually ships in 3-6 days

0

8

Honda 22810-752-B31

LEVER, CLUTCH

$

$

Not available

9

Honda 22815-752-000

SPRING, CLUTCH LEVER

$

$

Not available

10

Honda 22821-752-010

CAM, CLUTCH LIFTER

$52.99

$

Usually ships in 3-6 days

0

11

Honda 24343-752-003

BOOT, SHIFT SHAFT

$

$

Not available

12

Honda 24413-752-B30

BRACKET, CHANGE LEVER HOLDER

$

$

Not available

13

Honda 90116-752-000

BOLT, ADJUSTING (8MM)

$6.99

$

Usually ships in 3-6 days

0

14

Honda 90407-752-000

WASHER, THRUST (10X16)

$4.49

$

Usually ships in 3-6 days

0

15

Honda 90485-GB4-790

WASHER (8MM)

$2.99

$

Usually ships in 3-6 days

0

16

Honda 91202-444-023

SEE PART DETAILS - PRI; OIL SEAL (14X24X6) (ARAI)

$5.49

$

In Stock, only 1 left!

0

17

Honda 91207-KB4-671

OIL SEAL (22X34X7)

$5.49

$

Usually ships in 3-6 days

0

18

Honda 91254-752-003

OIL SEAL (14X24X11.5)

$6.49

$

Usually ships in 3-6 days

0

20

Honda 91306-PJ4-000

O-RING (6.8X1.9)

$4.99

$

Usually ships in 3-6 days

0

21

Honda 91353-752-B31

O-RING (21.5X1.5)

$

$

Not available

23

Honda 92800-14000

BOLT, DRAIN PLUG (14MM)

$5.99

$

Usually ships in 3-6 days

0

24

Honda 92900-10025-0B

BOLT, STUD (10X25)

$2.99

$

Usually ships in 3-6 days

0

25

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 16

0

26

Honda 94050-10080

NUT, FLANGE (10MM)

$3.99

$

In Stock, Qty 20+

0

27

Honda 94109-14000

WASHER, DRAIN PLUG (14MM)

$0.99

$

In Stock, Qty 20+

0

28

Honda 94301-10160

PIN A, DOWEL (10X16)

$3.49

$

In Stock, only 3 left!

0

29

Honda 94305-30162

PIN, SPRING (3X16)

$2.49

$

In Stock, only 3 left!

0

30

Honda 94520-34000

CIRCLIP (INNER) (34MM)

$1.49

$

Usually ships in 3-6 days

0

31

Honda 95701-06016-08

BOLT, FLANGE (6X16)

$1.99

$

In Stock, Qty 5

0

32

Honda 95701-08020-08

BOLT, FLANGE (8X20)

$2.49

$

Usually ships in 3-6 days

0

33

Honda 95701-08022-08

BOLT, FLANGE (8X22)

$2.99

$

In Stock, only 3 left!

0

35

Honda 95701-08055-08

BOLT, FLANGE (8X55)

$3.49

$

Usually ships in 3-6 days

0

36

Honda 95701-10025-08

BOLT, FLANGE (10X25)

$2.99

$

Usually ships in 3-6 days

0

37

Honda 96001-06016-00

BOLT, FLANGE (6X16)

$1.49

$

In Stock, Qty 5

0
