H5518 A2/C (TZAC) - Honda Multi-Purpose Tractor, Made in Japan (SN: TZAC-2500001 - TZAC-3499999) INSTRUMENT PANEL Parts Diagram

Multi-Purpose Tractor, Made in Japan

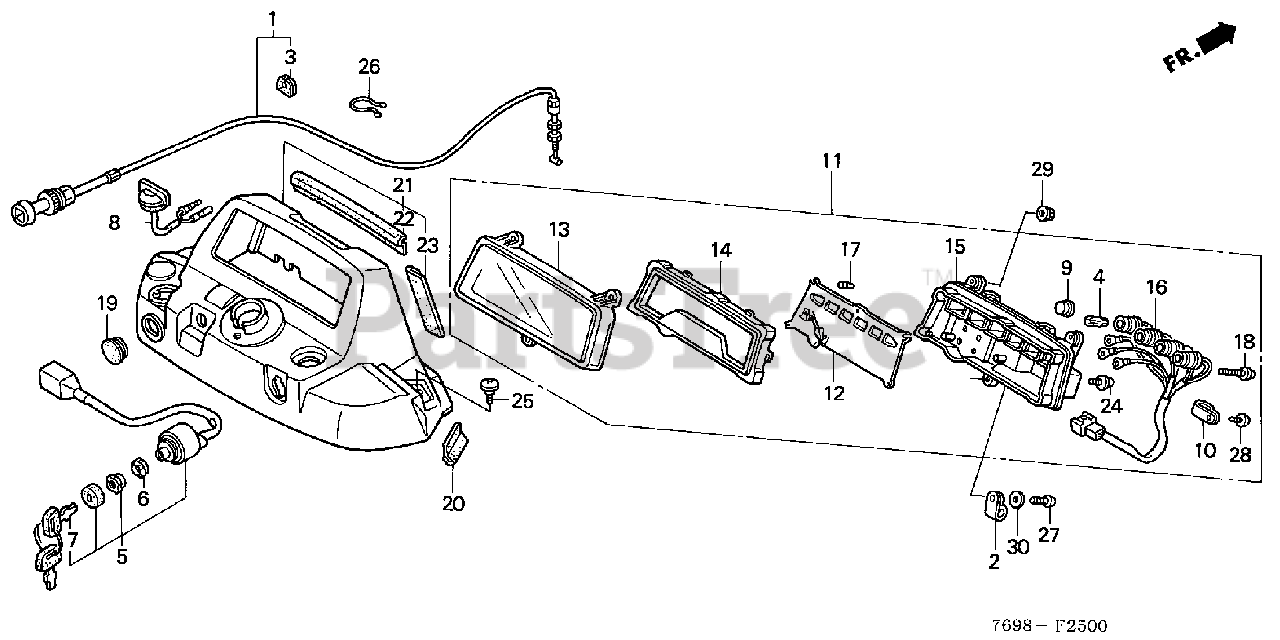

INSTRUMENT PANEL Parts Diagram

  • Title

1

Honda 17950-769-000

CABLE, CHOKE

$34.99

$

Usually ships in 3-6 days

0

2

Honda 30564-ZE8-003

CLAMP, IGNITION WIRE

$3.49

$

Usually ships in 3-6 days

0

3

Honda 31512-ZG3-000

GROMMET, WIRE

$3.99

$

Usually ships in 3-6 days

0

4

Honda 34908-GA7-701

SEE PART DETAILS - SUP; BULB, WEDGE BASE (12V 3.4W)
(Superseded to 37237-SA5-003)

$6.49

$

Usually ships in 3-6 days

0

4

Honda 37102-567-009

SEE PART DETAILS - SUP; BULB (12V3.4W) (158)
(Superseded to 37237-SA5-003)

$6.49

$

Usually ships in 3-6 days

0

4

Honda 37237-SA5-003

SEE PART DETAILS - PRI; BULB (12V3.4W2CP) (158) (NS)

$6.49

$

Usually ships in 3-6 days

0

4

Honda 37237-SA5-004

SEE PART DETAILS - SUP; BULB (12V3.4W) (158)
(Superseded to 37237-SA5-003)

$6.49

$

Usually ships in 3-6 days

0

5

Honda 35100-769-003

SWITCH ASSY., COMBINATION

$

$

Not available

6

Honda 35102-758-010

BASE, COMBINATION SWITCH

$

$

Not available

7

Honda 35110-VA3-902

SEE PART DETAILS - SUP; KEY ASSY., COMBINATION SWITCH
(Superseded to 35110-VA3-903)

$10.99

$

Usually ships in 3-6 days

0

7

Honda 35110-VA3-903

SEE PART DETAILS - PRI; KEY ASSY., COMBINATION SWITCH

$10.99

$

Usually ships in 3-6 days

0

8

Honda 36100-765-A01

SWITCH ASSY., ENGINE STOP

$

$

Not available

9

Honda 37116-KG4-008

CAP A

$2.49

$

Usually ships in 3-6 days

0

10

Honda 37121-ML7-671

CLAMP

$3.99

$

Usually ships in 3-6 days

0

11

Honda 37150-769-003

INDICATOR ASSY.

$

$

Not available

11

Honda 37150-769-801

INDICATOR ASSY.

$

$

Not available

12

Honda 37151-769-003

METER, FUEL

$

$

Not available

12

Honda 37151-769-801

METER, FUEL & HOUR

$

$

Not available

13

Honda 37154-752-003

GLASS

$

$

Not available

14

Honda 37156-752-003

PLATE, REFLECTING

$

$

Not available

15

Honda 37157-752-003

CASE

$93.99

$

Usually ships in 3-6 days

0

16

Honda 37158-769-003

SOCKET

$

$

Not available

16

Honda 37158-769-801

SOCKET

$

$

Not available

17

Honda 37304-KM7-911

RUBBER, CUSHION

$10.99

$

Usually ships in 3-6 days

0

18

Honda 37305-KE5-008

SCREW-WASHER (3X22)

$3.99

$

Usually ships in 3-6 days

0

19

Honda 50285-ZV4-000

GROMMET, CARRYING HANDLE

$3.99

$

Usually ships in 3-6 days

0

20

Honda 61438-769-000

SEAL D, COLUMN COVER (45MM)

$6.99

$

Usually ships in 3-6 days

0

21

Honda 77210-769-000ZA

PANEL, INSTRUMENT *NH105* (MAT BLACK)

$

$

Not available

22

Honda 77216-769-300

SEAL, INSTRUMENT

$10.99

$

Usually ships in 3-6 days

0

23

Honda 77218-769-300

SEAL, INSTRUMENT SIDE

$6.99

$

Usually ships in 3-6 days

0

24

Honda 90102-KM9-008

SCREW-WASHER (3X8)

$

$

Not available

25

Honda 90123-750-000

SCREW, METER VISOR SETTING

$4.99

$

In Stock, Qty 6

0

26

Honda 90630-751-000

SEE PART DETAILS - PRI; CLIP, PURSE LOCK

$2.49

$

Usually ships in 3-6 days

0

27

Honda 93500-05025-0H

SCREW, PAN (5X25)

$0.99

$

In Stock, only 4 left!

0

28

Honda 93903-24420

SCREW, TAPPING (4X16)

$1.49

$

Usually ships in 3-6 days

0

29

Honda 94050-05080

NUT, FLANGE (5MM)

$0.99

$

In Stock, Qty 6

0

30

Honda 94101-05800

WASHER, PLAIN (5MM)

$1.49

$

In Stock, only 2 left!

0
