H5500 (0061510) - Honeywell Portable Generator, CARB (SN: 6460350A - 6533420A) (2011) EV Portable Honeywell Carb (0J3349B) Parts Diagram

Portable Generator, CARB

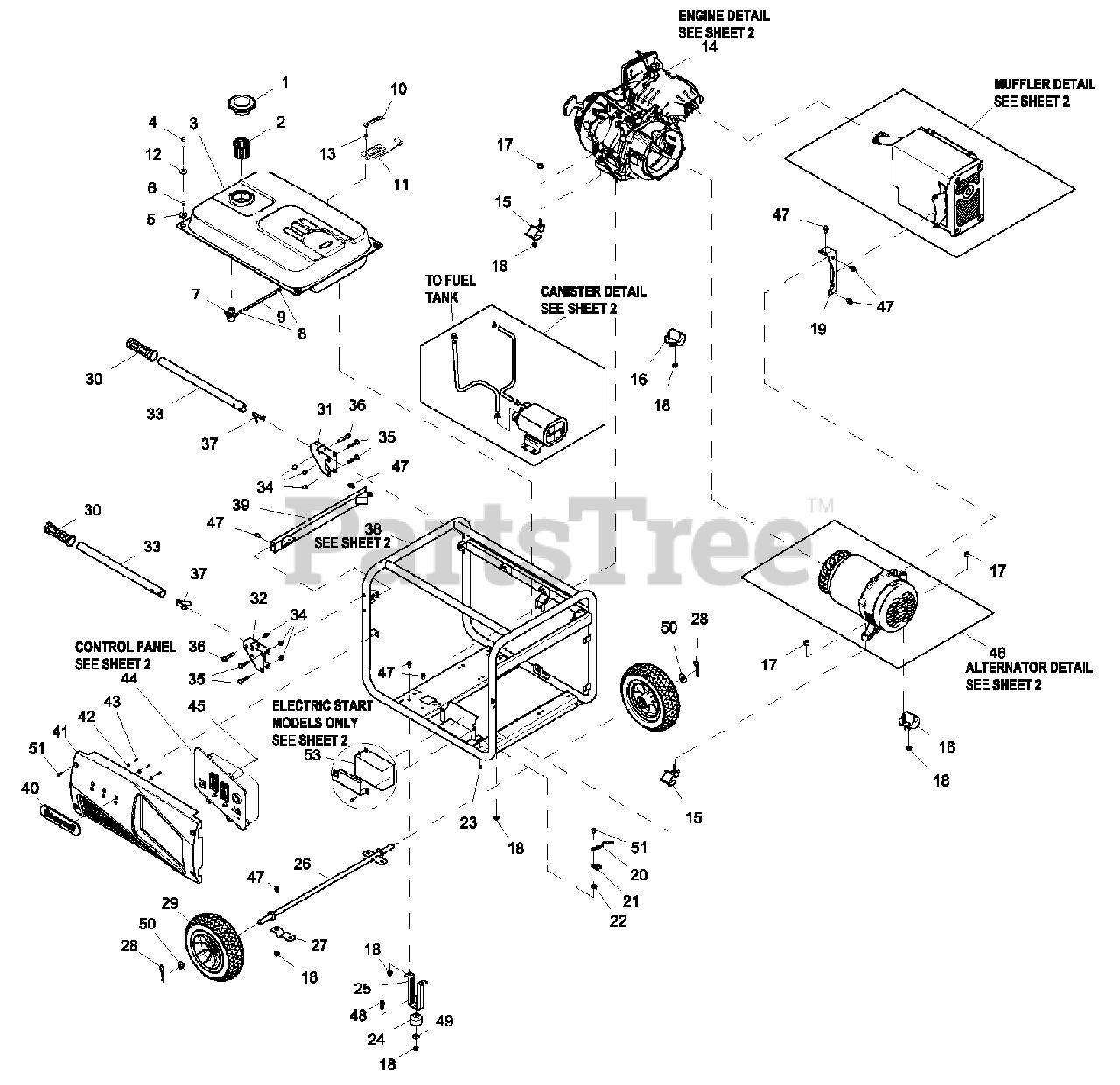

EV Portable Honeywell Carb (0J3349B) Parts Diagram

  • Title

1

Generac 0J4690A

FUEL CAP,NOT VENTED,BLACK CAP

$22.99

$

Usually ships in 2-12 days

0

2

Generac 0H1326

FILTER, FUEL

$4.99

$

In Stock, only 3 left!

0

3

Generac 0J2863

FUEL TANK 5.8 GAL HNYWL EVAP

Note: ORDER P/N 0J43710SRV

$

$

Currently unavailable

4

Generac 0J4030

SCREW HHFC M6-1.0 X 25 FTH

Note: ORDER PART# 0H58410165

$

$

Currently unavailable

5

Generac 0H1411B

RUBBER MOUNT,10.3 ID X11 HGT

$2.99

$

Usually ships in 2-12 days

0

6

Generac 0H1610A

INSERT, ANTI-CRUSH FOR TANKS

$1.49

$

In Stock, Qty 10

0

7

Generac 0J0974

VALVEFUELSHUTOFF

$21.99

$

Usually ships in 2-12 days

0

8

Generac 048031B

CLAMP HOSE BAND SPRING .38

$2.99

$

Usually ships in 2-12 days

0

9

Generac 0G9757C

FUEL HOSE 4 ID X 8.50D X165MM

$6.49

$

In Stock, only 1 left!

0

10

Generac 0H1359

PLATE, FUEL GAGE

Note: CANNOT BUY SEPARATE. MUST PURCHASE FUEL GAUGE ASSY OFF OF BOM

$

$

Currently unavailable

11

Generac 0H1345A

FUEL GAGE, 90MM LONG ARM

Note: ORDER P/N 0G84300102

$

$

Currently unavailable

12

Generac 054381

WASHER FLAT .266ID X 1.00D

$

$

Not available

13

Generac 0H1357

SCREW PFHM M5-0.8X12

Note: INCLUDED WITH FUEL GUAGE.

$0.99

$

Usually ships in 2-12 days

0

14

Generac 0J2591

ENGINE HNYWL

Note: FOR ENGINE INFORMATION REFER TO THE FOLLOWING: 0J2591PMNL 389cc GASOLINE ENG (G19) PARTS MNL MUST SHIP VIA LTL TRUCK CANNOT SHIP UPS.

$1239.99

$

Usually ships in 2-12 days

0

15

Generac 0J2085

VIB MNT 45DEG M8X13.5/M10X37.5

$11.99

$

Usually ships in 2-12 days

0

16

Generac 0J2085A

VIB MNT 45DEG M8X15.5/M10X37.5

$11.99

$

Usually ships in 2-12 days

0

17

Generac 0J4029

NUT HEX FL WHIZ M10-1.25

$1.49

$

In Stock, only 3 left!

0

18

Generac 067989

NUT HEX FL WHIZ M8-1.25
(Superseded to G067989)

$2.49

$

In Stock, only 4 left!

0

19

Generac 0G8542

BRACKET, MUFFLER 389CC

$16.99

$

Usually ships in 2-12 days

0

20

Generac 0742600197

GND WIRE PORT BRG CARR-FRAME

$

$

Not available

21

Generac 0J3047

LUG GROUNDING HONEYWELL

Note: ORDER # 0J4534

$

$

Currently unavailable

22

Generac 0A1658

WASHER LOCK SPECIAL 1/4"

$15.99

$

Usually ships in 2-12 days

0

23

Generac 049813

NUT HEX M6-1.0 G8 CLEAR ZINC
(Superseded to G049813)

$3.49

$

In Stock, only 4 left!

0

24

Generac 0J2862

RUBBER FOOT

$6.49

$

Usually ships in 2-12 days

0

25

0J3665

BENT FOOT HONEYWELL

$

$

Not available

26

0J3645

WELDMENT AXLE AND BRACKET HW

$

$

Not available

27

0J3961

AXLE BRACKET HONEYWELL

$

$

Not available

28

Generac 0H3443

COTTER HAIRPIN 2.56 X.80

$1.99

$

In Stock, Qty 5

0

29

Generac 0J2666

WHEEL 10.25" OD 5/8" AXLE

$83.99

$

Usually ships in 2-12 days

0

30

Generac 0J2665

GRIP HANDLE HONEYWELL

$8.99

$

Usually ships in 2-12 days

0

31

0J3462A

BRACKET HANDLE LH HW PORT

$

$

Not available

32

0J3462

BRACKET HANDLE RH HW PORT

$

$

Not available

33

0J3474

HANDLE, HW PORTABLE CAP NUT M8-1.25 BLACK ZINC

$

$

Not available

34

Generac 0H1782

CAP NUT M8-1.25 BLACK ZING

$1.99

$

In Stock, Qty 7

0

35

Generac 0H1781A

CHB M8-1.25 X 40MM LONG

$4.99

$

Usually ships in 2-12 days

0

36

Generac 0H1779

SCREW,HHFC M8-1.25X45

$1.99

$

In Stock, Qty 7

0

37

Generac 0G5442

SNAP BUTTON - .437" DIA. HEAD

$1.49

$

In Stock, only 2 left!

0

38

Generac 0J3341B

CRADLE WELDMENT HNYWL

$23.99

$

Usually ships in 2-12 days

0

39

0J3508

WELDMENT END RAIL HONEYWELL

$

$

Not available

40

0J3074

BADGE, HW SIDE PANEL

$

$

Not available

41

Generac 0J2804

PANEL, PLASTIC SIDE C-PNL PORT

$48.99

$

Usually ships in 2-12 days

0

42

Generac 038150

WASHER FLAT #8 ZINC
(Superseded to G038150)

Note: MODEL 4270-3 AND 4614- CHANGE TO PART NUMBER 051713 WASHER FLAT M5 AND LOCK WASHER 049226 WHEN USING WITH 076040 SCREW PER ECO- G-6948

$0.99

$

Usually ships in 2-12 days

0

43

Generac 0J4616

SCREW PPPH #8-16 X 0.40" BZC

$1.49

$

Usually ships in 2-12 days

0

44

Generac 0J2805E

CONTROL PANEL HONEYWELL

$

$

Currently unavailable

45

Generac 0G8382

SCREW PPPH #8-16 X .66" BZC

$1.49

$

Usually ships in 2-12 days

0

46

Generac 0J4062

ASSY ALTERNATOR

$866.99

$

Usually ships in 2-12 days

0

47

Generac 0E9507A

SCREW HHFC M8-1.25 X14 W/M10

Note: ORDER P/N 0E9470

$

$

Currently unavailable

48

Generac 0E9507B

SCREW HHFC M8-1.25 X 25 W/M10

$3.49

$

In Stock, Qty 5

0

49

Generac 0J4032

WSHR FLAT 22.60D X 8.6ID X3

Note: ORDER P/N 0J5762 WASHER FLAT 8.5ID X 3

$

$

Not available

50

Generac 022247

WASHER FLAT 5/8 ZINC
(Superseded to G022247)

$0.99

$

In Stock, Qty 8

0

51

Generac 0J4033

SCREW HHFC M6-1.0X14

Note: ORDER # 0J35220156

$

$

Currently unavailable
