H5013 AC4/A (FAHA) - Honda Multi-Purpose Tractor, Made in Japan (SN: FAHA-4100001 - FAHA-4299999) PISTON Parts Diagram

Multi-Purpose Tractor, Made in Japan

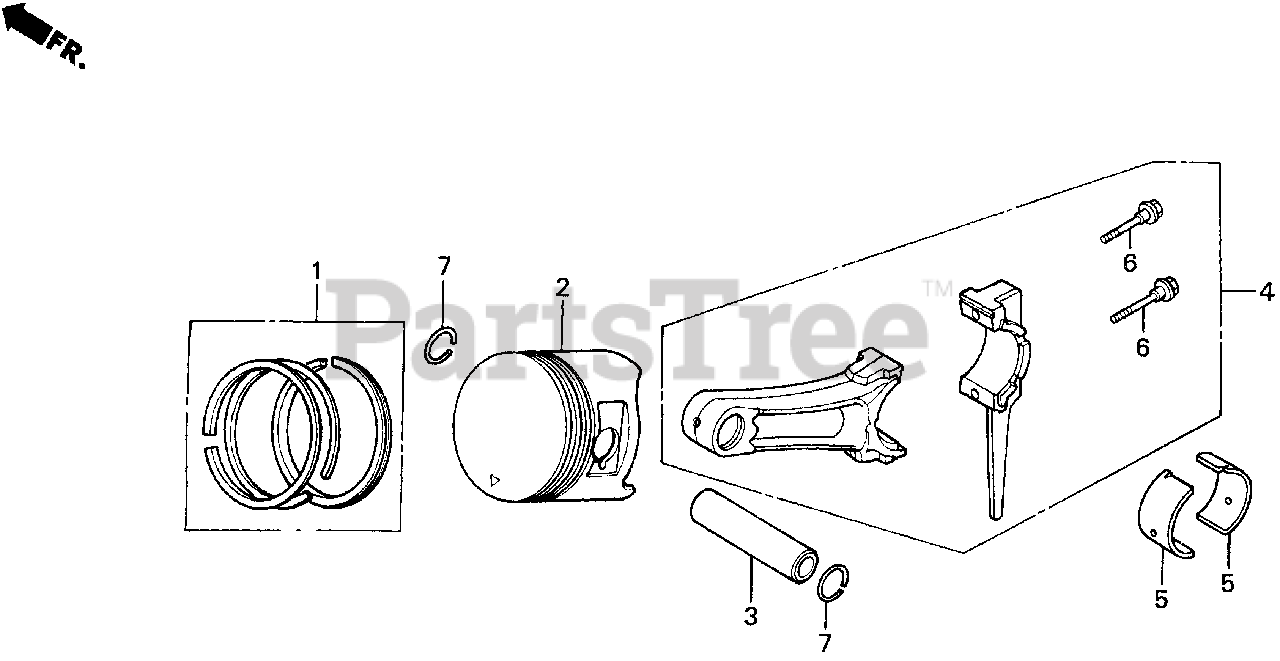

PISTON Parts Diagram

  • Title

1

Honda 13010-ZF6-003

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (NIPPON)

$52.99

$

In Stock, Qty 5

0

1

Honda 13011-ZF6-003

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.25)

$84.99

$

Usually ships in 3-6 days

0

1

Honda 13012-ZF6-003

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.50)

$

$

Not available

1

Honda 13012-ZF6-005

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.50)

$83.99

$

Usually ships in 3-6 days

0

2

Honda 13101-ZF6-W00

PISTON (STD)

$77.99

$

Usually ships in 3-6 days

0

2

Honda 13102-ZF6-W00

PISTON (OS 0.25)

$142.99

$

Usually ships in 3-6 days

0

2

Honda 13103-ZF6-W00

PISTON (OS 0.50)

$

$

Not available

2

Honda 13104-ZF6-W00

PISTON (OS 0.75)

$

$

Not available

3

Honda 13111-ZF6-W00

PIN, PISTON

$17.99

$

In Stock, only 1 left!

0

4

Honda 13200-ZE3-020

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING (STD)
(Superseded to 13200-Z1C-900)

$34.99

$

In Stock, only 1 left!

0

4

Honda 13200-ZE3-315

ROD ASSY., CONNECTING (0.25 LOWER SIZE)

$155.99

$

Usually ships in 3-6 days

0

6

Honda 90001-ZE8-000

BOLT, CONNECTING ROD

$4.99

$

Usually ships in 3-6 days

0

7

Honda 90601-ZE3-000

CLIP, PISTON PIN (20MM)

$2.49

$

Usually ships in 3-6 days

0
