H5013 AC4/A (FAHA) - Honda Multi-Purpose Tractor, Made in Japan (SN: FAHA-4100001 - FAHA-4299999) HEADLIGHT Parts Diagram

Multi-Purpose Tractor, Made in Japan

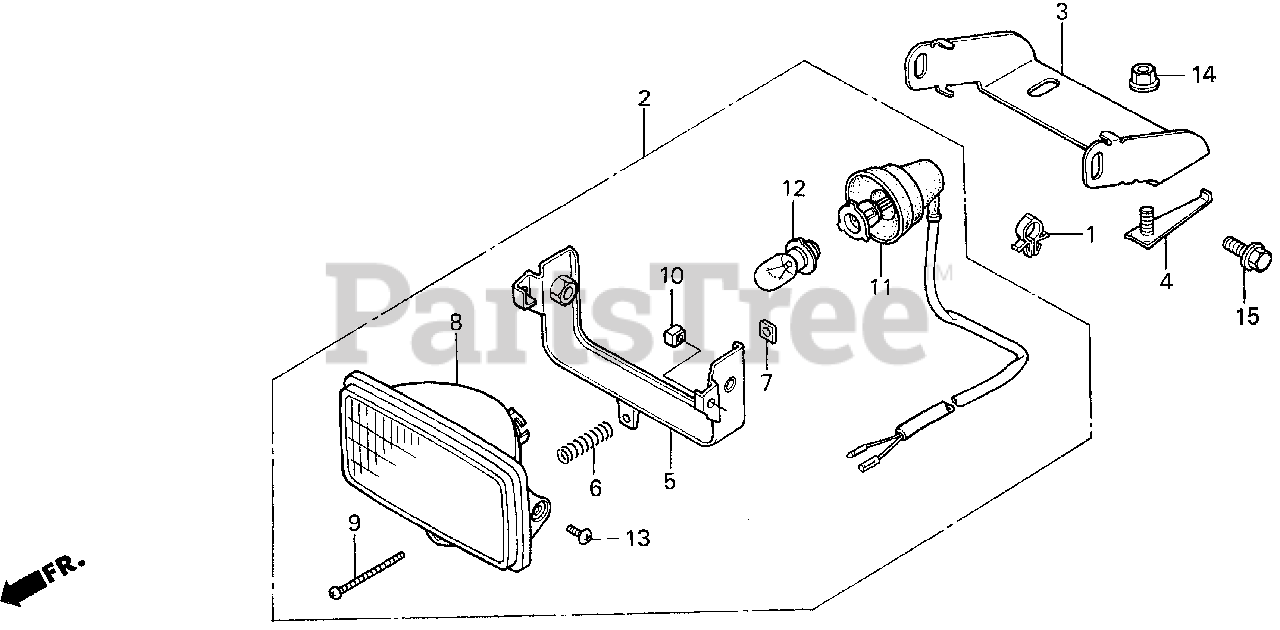

HEADLIGHT Parts Diagram

  • Title
1

Honda 30701-883-000

SEE PART DETAILS - PRI; CLIP, IGNITION WIRE (8MM)

$3.99

$

In Stock, only 1 left!

0

2

Honda 33100-752-631

HEADLIGHT ASSY.

$

$

Not available

3

Honda 33102-752-000

BRACKET, HEADLIGHT

$

$

Not available

4

Honda 33103-752-000

BOLT, HEADLIGHT SPECIAL

$7.99

$

Usually ships in 3-6 days

0

$

$

Not available

6

Honda 33107-752-003

SPRING, BEAM ADJUSTING

$

$

Not available

7

Honda 33117-001-023

NUT, HEADLIGHT BEAM ADJUSTING

$2.99

$

Usually ships in 3-6 days

0

8

Honda 33120-752-631

HEADLIGHT UNIT

$91.99

$

Usually ships in 3-6 days

0

9

Honda 33127-752-003

SCREW, BEAM ADJUSTING

$

$

Not available

10

Honda 33128-471-003

NUT, UNIT HOLDER

$2.49

$

Usually ships in 3-6 days

0

11

Honda 33130-752-631

SOCKET ASSY., HEADLIGHT

$

$

Not available

12

Honda 34901-706-000

BULB (12V25/25W) (STANLEY)

$7.49

$

Usually ships in 3-6 days

0

13

Honda 93500-05010-0H

SCREW, PAN (5X10)

$1.49

$

Usually ships in 3-6 days

0

14

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 17

0

15

Honda 95701-08012-08

BOLT, FLANGE (8X12)

$2.49

$

Usually ships in 3-6 days

0
