H5013 AC2/A (FAHA) - Honda Multi-Purpose Tractor, Made in Japan (SN: FAHA-4100001 - FAHA-4299999) UPPER COUNTERSHAFT Parts Diagram

Multi-Purpose Tractor, Made in Japan

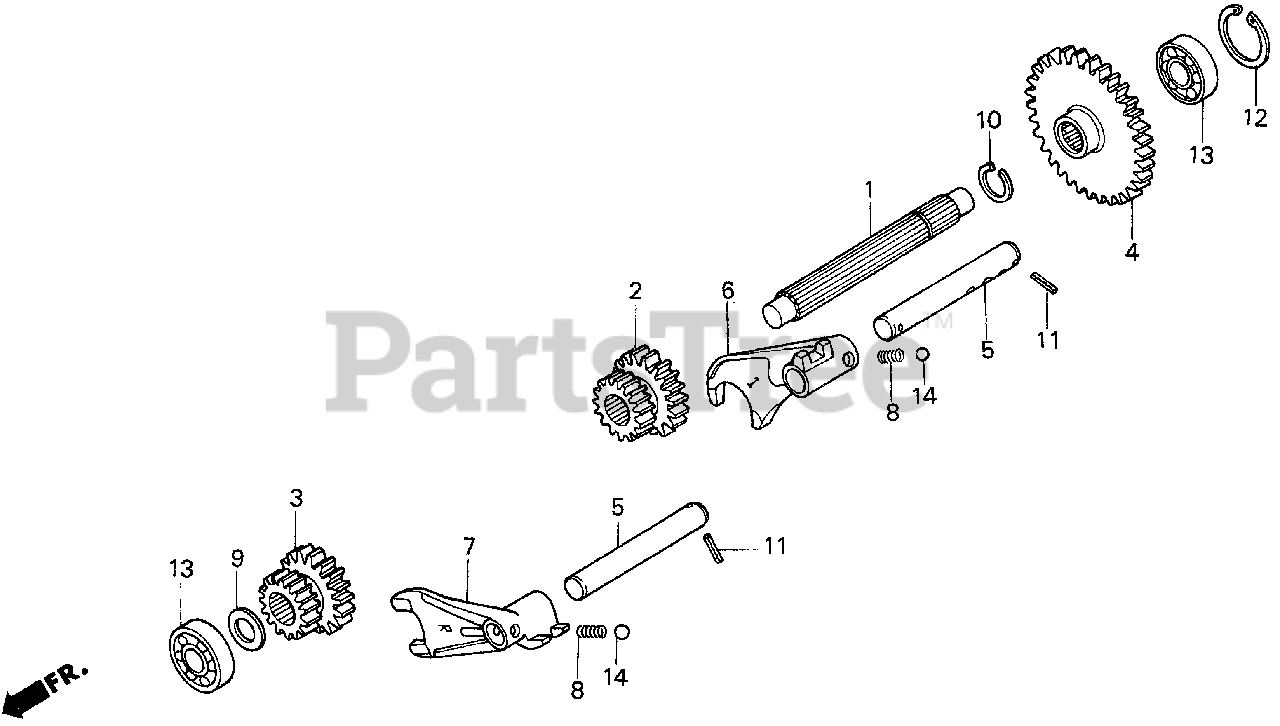

UPPER COUNTERSHAFT Parts Diagram

  • Title

1

Honda 23221-752-000

COUNTERSHAFT (UPPER)

$

$

Not available

2

Honda 23412-752-010

GEAR, FIRST-SECOND CHANGE (27T-17T)

$

$

Not available

3

Honda 23413-752-010

GEAR, REVERSE CHANGE (27T-17T)

$

$

Not available

4

Honda 23422-752-000

GEAR, COUNTERSHAFT (53T)

$

$

Not available

5

Honda 24111-752-000

SHAFT, MAIN CHANGE

$

$

Not available

6

Honda 24112-752-000

FORK, SHIFT (1-2)

$

$

Not available

7

Honda 24132-752-000

SEE PART DETAILS - SUP; FORK, REVERSE SHIFT
(Superseded to 24132-752-010)

$

$

Not available

7

Honda 24132-752-010

SEE PART DETAILS - PRI; FORK, REVERSE SHIFT

$

$

Not available

8

Honda 24456-PH8-000

SPRING A, BALL SETTING

$

$

Not available

9

Honda 90456-155-000

WASHER (17MM)

$6.99

$

Usually ships in 3-6 days

0

10

Honda 90601-679-000

CIRCLIP (OUTER) (20MM)

$8.99

$

Usually ships in 3-6 days

0

11

Honda 94305-30182

PIN, SPRING (3X18)

$1.99

$

Usually ships in 3-6 days

0

12

Honda 94520-40000

CIRCLIP (INNER) (40MM)

$2.99

$

Usually ships in 3-6 days

0

13

Honda 96100-62030-00

BEARING, RADIAL BALL (6203)

$11.99

$

Usually ships in 3-6 days

0

14

Honda 96211-10000

BALL, STEEL (#10) (5/16)

$1.99

$

Usually ships in 3-6 days

0
