H5013 AC2/A (FAHA) - Honda Multi-Purpose Tractor, Made in Japan (SN: FAHA-4100001 - FAHA-4299999) RIGHT CONTROL PANEL Parts Diagram

Multi-Purpose Tractor, Made in Japan

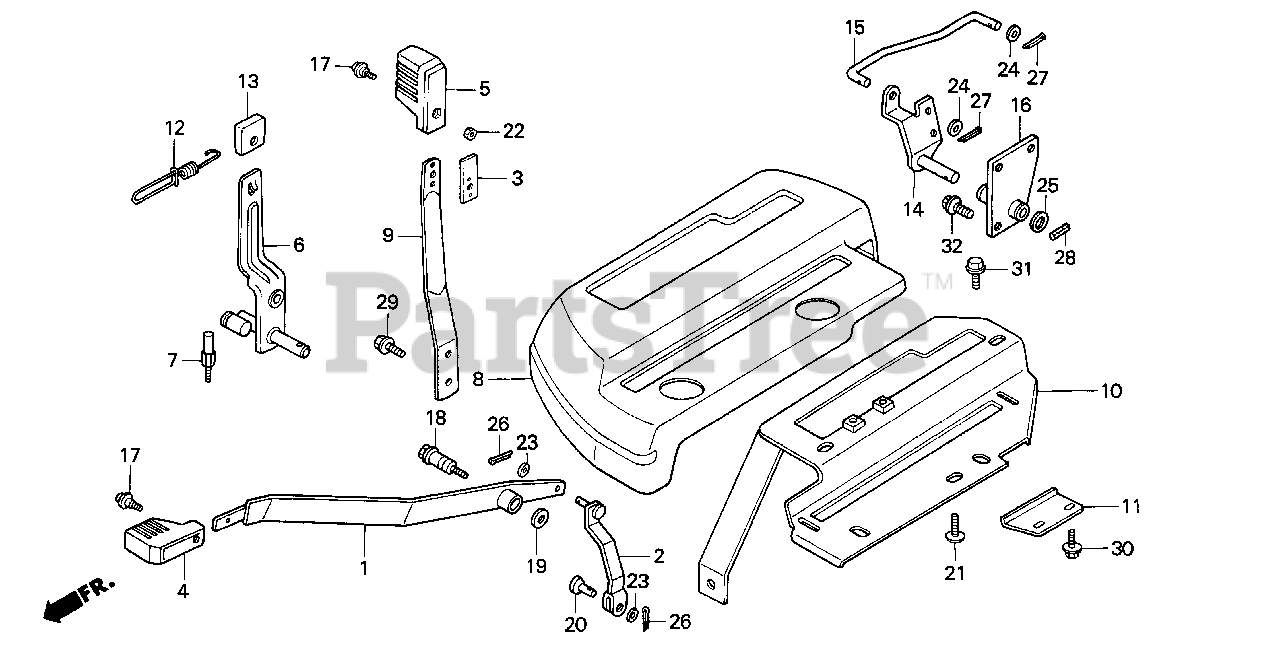

RIGHT CONTROL PANEL Parts Diagram

  • Title
3

Honda 24422-752-000

PLATE, P.T.O. SHIFT LEVER

$7.99

$

Usually ships in 3-6 days

0

5

Honda 40343-752-000

KNOB, CHANGE LEVER

$

$

Not available

8

Honda 56657-752-000ZB

PANEL, R. CONTROL *R165* (JOLLY RED)
(Superseded to 56657-752-000ZG)

$

$

Not available

9

Honda 56686-752-000

LEVER, HYDRAULIC CONTROL

$41.99

$

Usually ships in 3-6 days

0

10

Honda 56687-752-B30

GUIDE, HYDRAULIC CONTROL LEVER

$

$

Not available

11

Honda 56689-752-B30

PLATE, TWO MOTION

$

$

Not available

12

Honda 57207-752-B30

SPRING, CONTROL LEVER RETURN

$

$

Not available

14

Honda 57220-752-B30

SHAFT, HYDRAULIC CONTROL

$

$

Not available

15

Honda 57272-752-B30

JOINT, HYDRAULIC CONTROL

$

$

Not available

16

Honda 57290-752-B30

BASE, HYDRAULIC CONTROL

$

$

Not available

17

Honda 90101-GE0-000

SCREW, HINGE PATCH

$3.99

$

Usually ships in 3-6 days

0

21

Honda 93903-26120

SCREW, TAPPING (6X12)

$1.49

$

Usually ships in 3-6 days

0

22

Honda 94002-05070-0S

NUT, HEX. (5MM)

$0.99

$

In Stock, Qty 6

0

24

Honda 94101-08800

SEE PART DETAILS - SUP; WASHER, PLAIN (8MM)

$2.49

$

In Stock, only 3 left!

0

25

Honda 94102-12800

SEE PART DETAILS - PRI; WASHER, PLAIN (12MM)

$

$

Not available

27

Honda 94201-25300

SEE PART DETAILS - PRI; PIN, SPLIT (2.5X30)

$1.49

$

Usually ships in 3-6 days

0

28

Honda 94305-40201

PIN, SPRING (4X20)

$2.49

$

Usually ships in 3-6 days

0

29

Honda 95701-06010-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

$2.49

$

In Stock, Qty 20+

0

30

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0

31

Honda 95701-08012-08

BOLT, FLANGE (8X12)

$2.49

$

Usually ships in 3-6 days

0

32

Honda 95701-08014-08

BOLT, FLANGE (8X14)

$2.49

$

Usually ships in 3-6 days

0
